PUSHEN PM-220V plane grinding machine 220V

SE
PUSHEN PM-220V plane grinding machine uses 220V/550W motor, PM-220V plane grinding machine is used for laboratory determination of tinctorial strength or tinting strength of pigments or inks.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

Pushen PM-220V plane grinding machineSPEC

Pushen PM-220V plane grinding machineDetails

Pushen PM-220V plane grinding machinePacking list

SKU
NB019541
Power
220V AC 50Hz
Motor power
0.55KW
Grinding disc speed
80cpm
Grinding disc diameter
240mm
Counting range
0~999
Load Weight
0.9Kg 、 1.75Kg 、 1.75Kg 、 2.92Kg
load pressure
27 Kg 、 47 Kg 、 69 Kg 、 102 Kg
Standards
GB/T5211、ISO787/16,8780-5、ASTM D322-B,D387
Overall Dimensions
580*368*472mm
Shipment Weight
93Kg
Electrode speed
1440 rpm
Glass disk speed
855 rpm
Counting range
0~999
Total power
0.555Kw
Number of jobs displayed
0-9
PM-220V
plane grinding machine

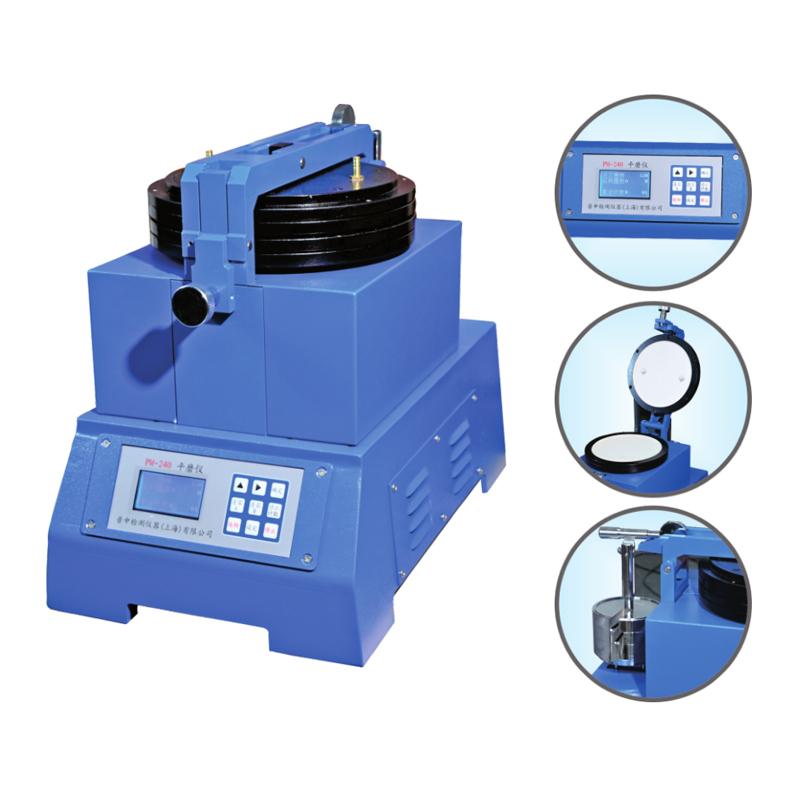

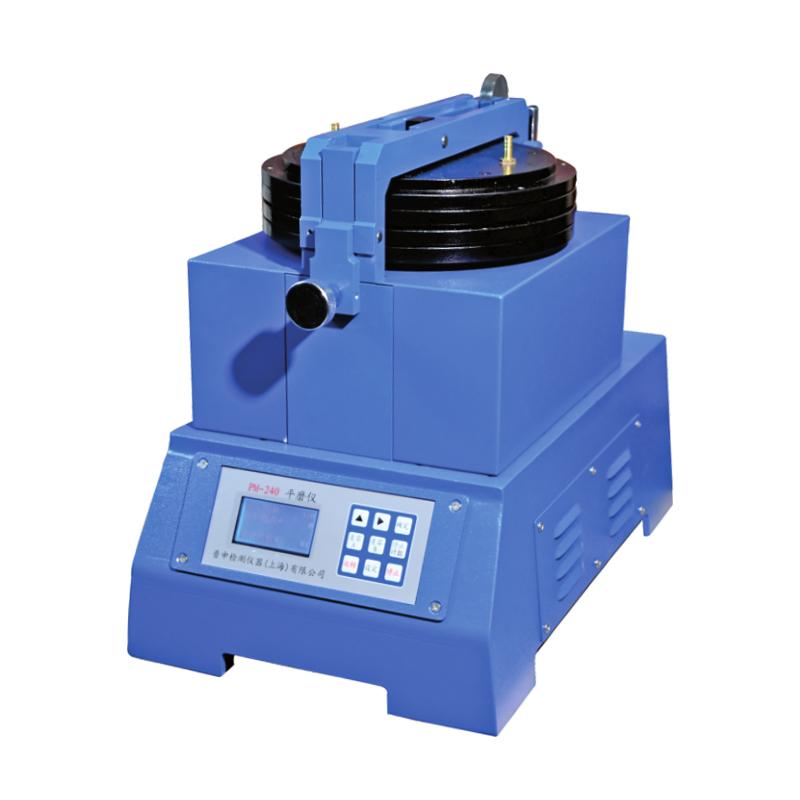

PUSHEN PM-220V plane grinding machine 220V Picture

Uses and Features

The flat Grinder is the required instrument in the national standard GB5211.19 "Determination of relative tinting strength and diluted color of coloring pigments by visual comparison method".

This machine can be used as a professional physical performance testing instrument for the pigment, paint and ink industries. The whole machine is compact in structure, simple in appearance, easy to change the number of revolutions and loads, and easy to assemble and disassemble the glass plate. Microcomputer control, LCD display, easy parameter setting. When the input parameters are wrong, the controller will automatically display prompt information, and when over-current and phase failure occur, the controller will also display prompt information. The purpose of reliable control and simple operation is achieved.


structure diagram

Standards

GB/T 5211

ISO 787/16, 8780-5

ASTM D 322-B, D 387

FAQ
QHow much is this weight?
A Standard weight 1 set, the weight is: 1.75 kg, 1.75 kg, 2.92 kg
QWhat is the thickness spacing between the upper and lower flat grinding discs?
A There is no spacing between the upper and lower flat grinding discs.
QFlat grinder grinding, pull up the load handle but the grinding disc can not open, what is the reason?
A Hello, please check whether the upper and lower grinding disc sleeve nuts are loose and whether the shaft head nuts are loose.
QDoes the Pushen Flat grinder fail to turn on if it is set?
A Hello, yes, it cannot be turned on if the indicator light is on.
QThis plane grinding machine can be applied to GB/T21868.5?
A OK
QWhat is the Flat Grinder used for?
A Hello, Flat grinder is an auxiliary tool for physical performance testing of Coating, Printing ink and pigment.
