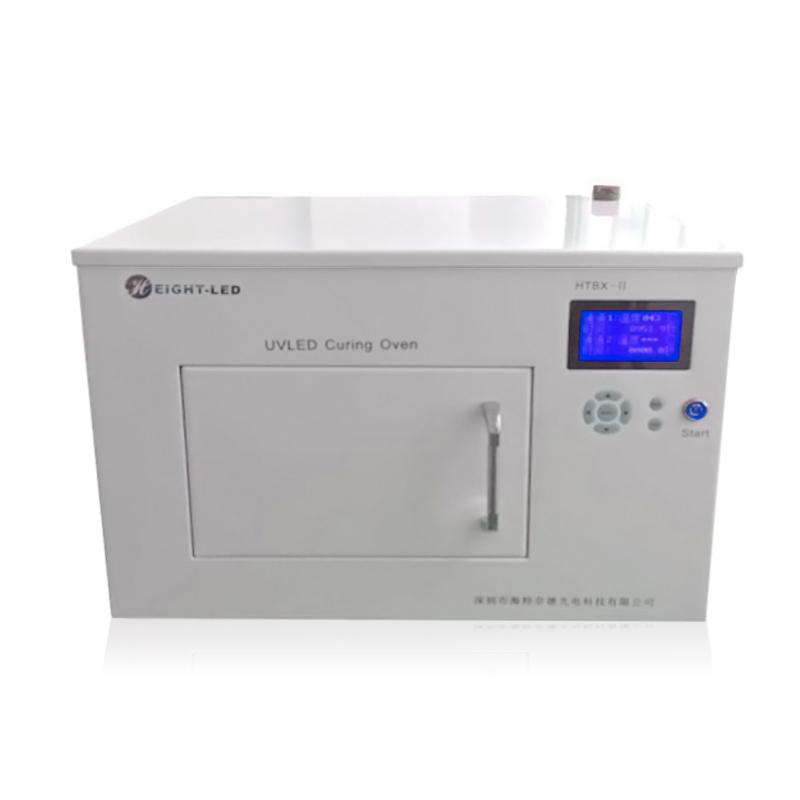

HEIGHT-LED HTBX-I Small UVLED Curing Oven Wavelength 365nm

SE
HEIGHT-LED small UVLED Curing Oven, model HTBX-I (365nm), wavelength is 365nm, the curing area of HTBX-I is 230x220mm, and it adopts high-performance UVLED surface light source curing system.
Contact
Details SPEC Con

HEIGHT-LED HTBX-I (365nm) Small UVLED Curing OvenSPEC

HEIGHT-LED HTBX-I (365nm) Small UVLED Curing OvenDetails

HEIGHT-LED HTBX-I (365nm) Small UVLED Curing OvenPacking list

SKU
NB019669
wavelength
365nm
Curing area
230x220mm
UV Optical Power Density
400-2400mw/cm^2
Dimensions
450*340*310mm
HTBX-I (365nm)
Small UVLED Curing Oven
HEIGHT-LED HTBX-I Small UVLED Curing Oven Wavelength 365nm Picture

Introduction

Hetnyder small UVLED curing oven is a high-performance UVLED surface light source curing system, which mainly includes an oven, UVLED irradiation head, and connecting wires. The UV LED irradiation head is integrated with imported high-intensity ultraviolet LEDs. The UV spectrum wavelength is 365nm, 385nm, 395nm, and 405nm optional. It adopts forced air cooling to dissipate heat. The effective curing area is 230X220mm. It supports external signal input and triggering. It can be equipped with semi-automatic or fully automatic Production line use.

Product Dimensions

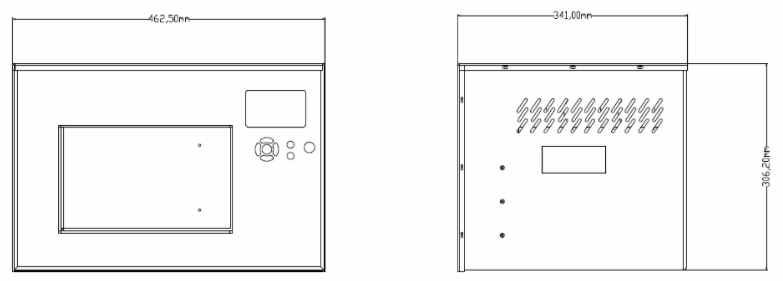

Dimensions of Hetnyder Small UVLED Curing Oven

plan

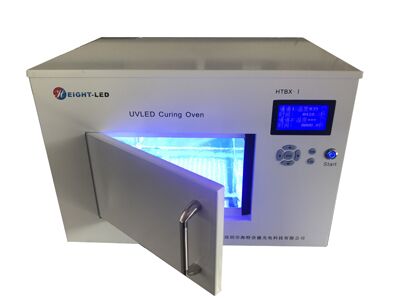

Hetnyder small UVLED curing oven display
