DONGRU DR220 (upgraded version) Integrated Coating Thickness Gauge 0-2000μm

SE
The DONGRU DR220 integrated Coating Thickness Gauge is an upgraded version of the Thickness Gauge with a range of 0-2000μm. The DR220 integrated Coating Thickness Gauge adopts a larger display screen and is widely used in automotive paints, automotive evaluation, metal processing, chemical and other fields.
$226.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

DongRu DR220 (upgraded version) Coating Thickness GaugeSPEC

DongRu DR220 (upgraded version) Coating Thickness GaugeDetails

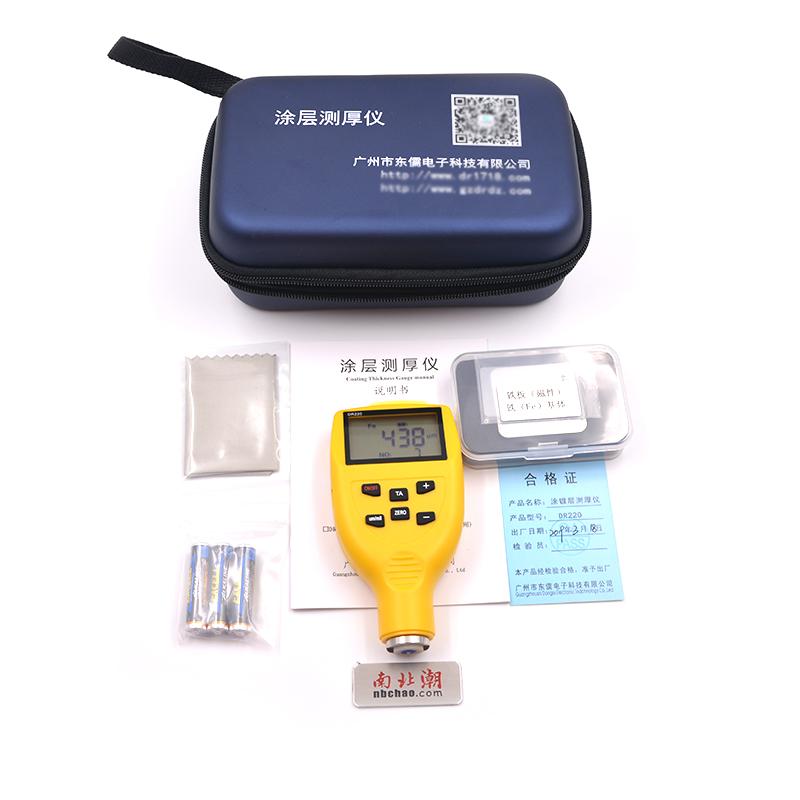

DongRu DR220 (upgraded version) Coating Thickness GaugePacking list

SKU
NB019670
Measurement principle
Magnetic Induction
Measurement range
0 ~ 2000m
margin of error
±3%
Resolution
0.1mm | 1mm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest matrix
0.4mm
probe
F integrated probe
Statistical function
MAX Maximum (MAX), MIN Minimum (MIN), Average (MEA)
icon function
without
Power

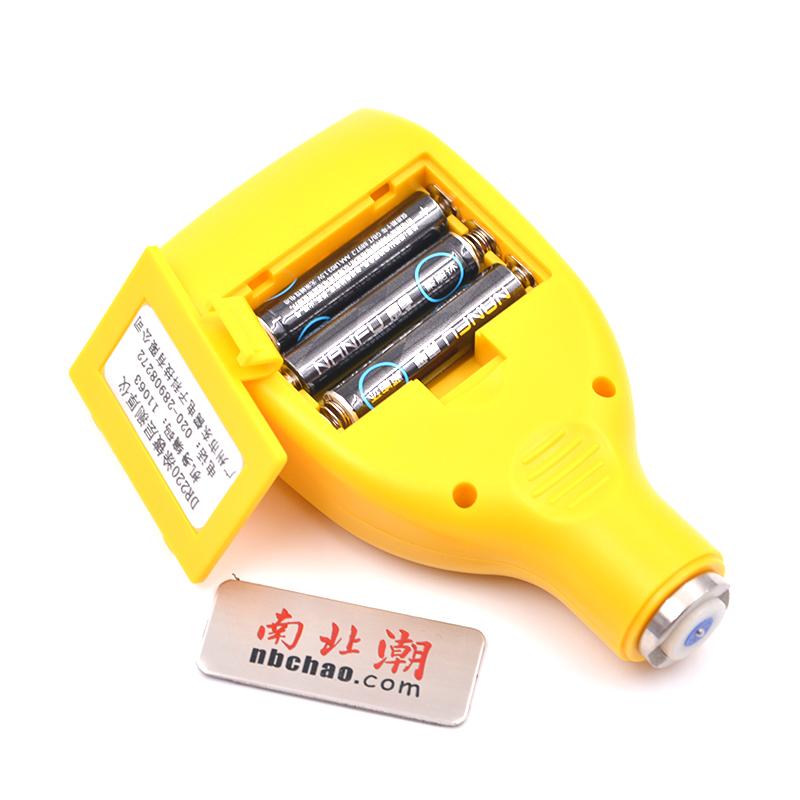

Three (7) alkaline batteries
Calibrated Certificate
without
Language
Chinese
Display screen
LCD
supporting software
without
Total Weight
106G (without battery)
Complete-built unit size
126*64*28mm
Operating temperature
0~50℃
Minimum measurement surface
18*15mm
Relative Humidity
20~90%RH
operating temperature
0℃-50℃
DR220 (upgraded version)
Coating Thickness Gauge
DONGRU DR220 (upgraded version) Integrated Coating Thickness Gauge 0-2000μm Picture

Introduction

The DR220 coating Thickness Gauge adopts the principle of electromagnetic induction, and according to the national industry: GB/T4956-2003 standard, it can quickly, without damage, and accurately measure the thickness of the coating on the magnetic metal surface. It can non-destructively measure the thickness of non-magnetic coatings (such as: paint, electrophoresis, enamel, rubber, powder, enamel, anti-corrosion layer, galvanized, chrome, etc.) on magnetic metal substrates (such as: steel, iron, nickel); DR220 The integrated coating Thickness Gauge is exquisite and compact, and uses a metal measuring head to make the on-site test more stable and firmer.

This instrument can be widely used in the detection fields of automobile paint, automobile evaluation, manufacturing, metal processing, chemical industry, commodity inspection and so on.

DR220 Coating Thickness Gauge Features

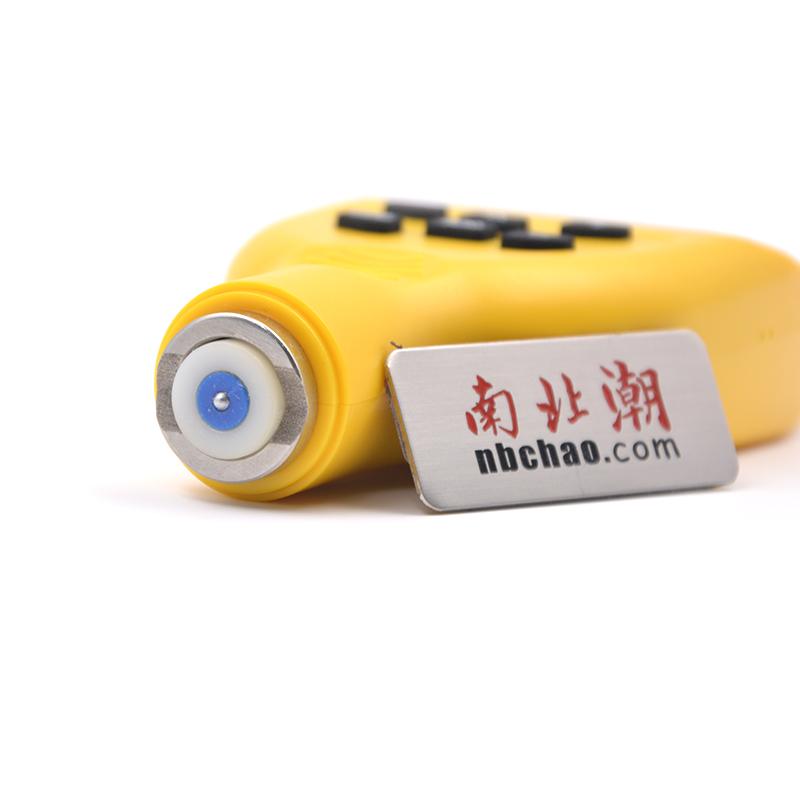

A. Using alloy integrated probe, the world's professional technology

B. Simple operation, fast test speed and high sensitivity

C. Exquisite ergonomic integrated design, easy to carry

D. Two test methods: continuous test (CONT INUE) and single (SINGLE) measurement

E. Statistical function: maximum value (MAX), minimum value (MIN), average value (MEA)

F. It can store 2000 measurement data (10 sets of data)

G. It can be connected to a computer for communication and read out stored data for saving or printing (optional)

H. Two calibration methods: zero point calibration and two point calibration

I. There is a buzzer prompt during the operation (single measurement mode)

I. Automatic identification of iron-based and non-ferrous-based substrates

J. Low Voltage indication

K. Manual/automatic shutdown function

L, super large LCD backlight display, with screen rotation and inversion function
      M, metric and imperial conversion function um/mil


FAQ
QHow to start Coating thickness gauge and start measurement?

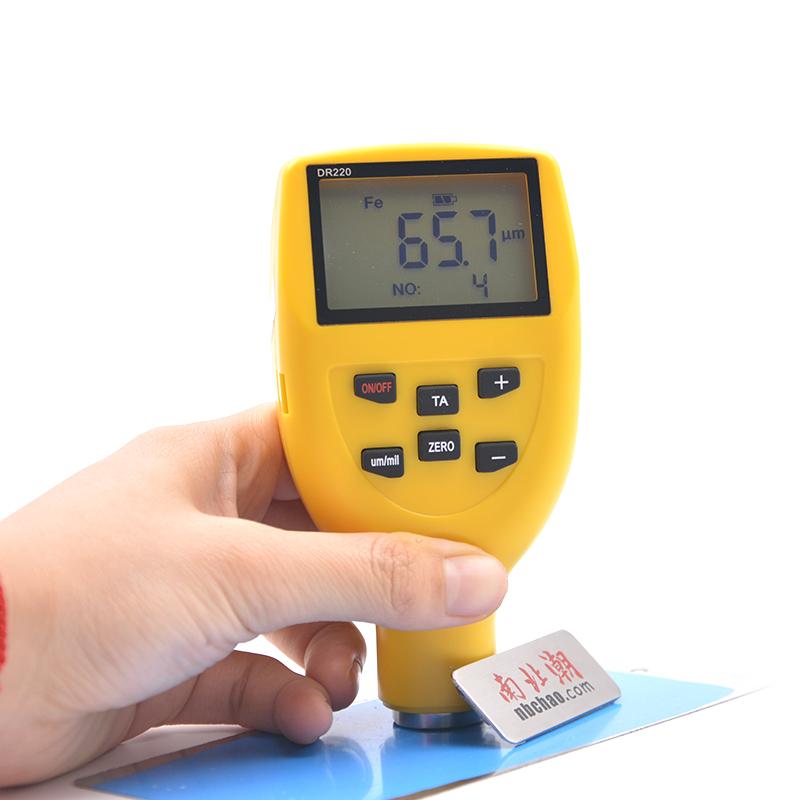

A Press the "ON/OFF" button, when the display appears on the LCD screen, the instrument will automatically enter the measurement state, and then press the probe vertically onto the tested coating, and the thickness value will be displayed on the display screen.
QWhat is two-point calibrating and how is it performed?
A Two-point calibrating is to select the appropriate film thickness sheet according to the Coating thickness to be measured on the basis of zero-position calibrating, and press the probe down for measurement. If the measured value is different from the film thickness sheet, it can be corrected by the "+" "-" button.
QHow to calibrate?
A Zero position calibrating is done by pressing the probe against the substrate, pressing the zero correction button "ZERO" button, and then releasing it. After successful calibrating, "CAL" will be displayed on the screen and a beep will sound.
QIs the DR220 Coating thickness gauge suitable for outdoor use?
A Yes, the DR220 has a sun mode that can be used in bright light and is suitable for outdoor environments.
QDoes the DR220 support measurement of high temperature materials?
A The DR220 standard model supports the measurement of high temperature materials up to 300 degrees, and a dedicated high temperature probe can also be selected for measurement.
QWhat is the difference between Continuous Test and Single Measurement modes?
A Continuous Test mode enables continuous measurement of multiple data points, helping to reduce errors, while Single Measurement mode is suitable for one-time measurement.
Q Does the DR220 have statistical capabilities?
A Yes, it provides MAX Maximum, MIN Minimum, Average and other statistical functions to help users analyze measurement data.
QWhat principle does DR220 Coating thickness gauge use for Coating thickness measurement?
A DR220 uses the principle of electromagnetic induction to measure the thickness of nonmagnetic coatings on magnetic metal substrates, such as paints, Electrophoresis, enamel, etc.
QDoes DR220 Coating thickness gauge support Data storage and export?
A It can store up to 2000 measurement data, and users can choose to connect a computer to communicate, read, store or print this data.
QCan this DR220 Coating thickness gauge measure surfaces with temperatures below zero?
A Hello, no, this use environment is 0 ℃~ 50 ℃.
