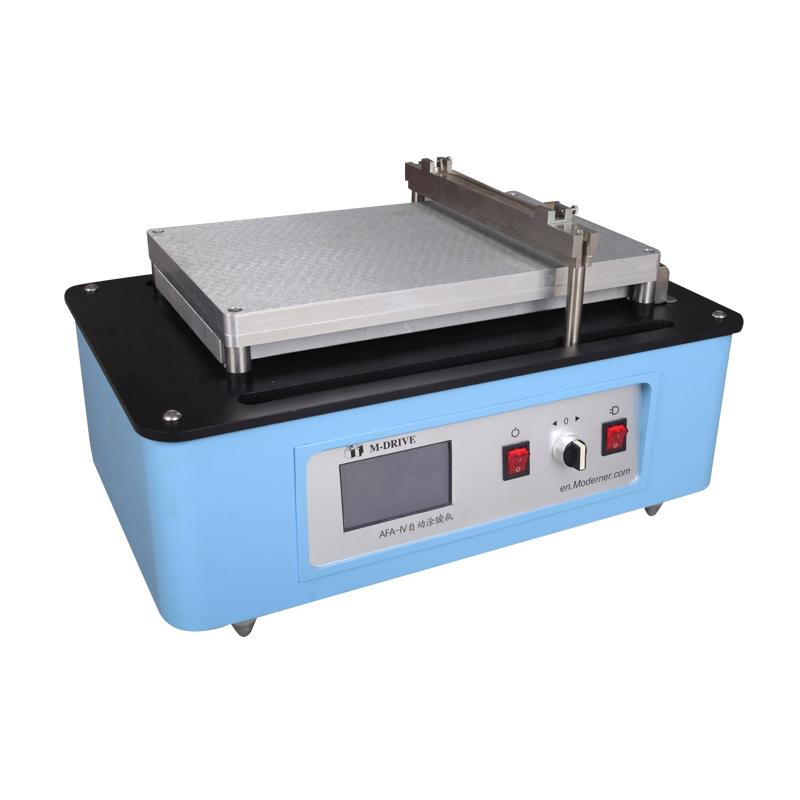

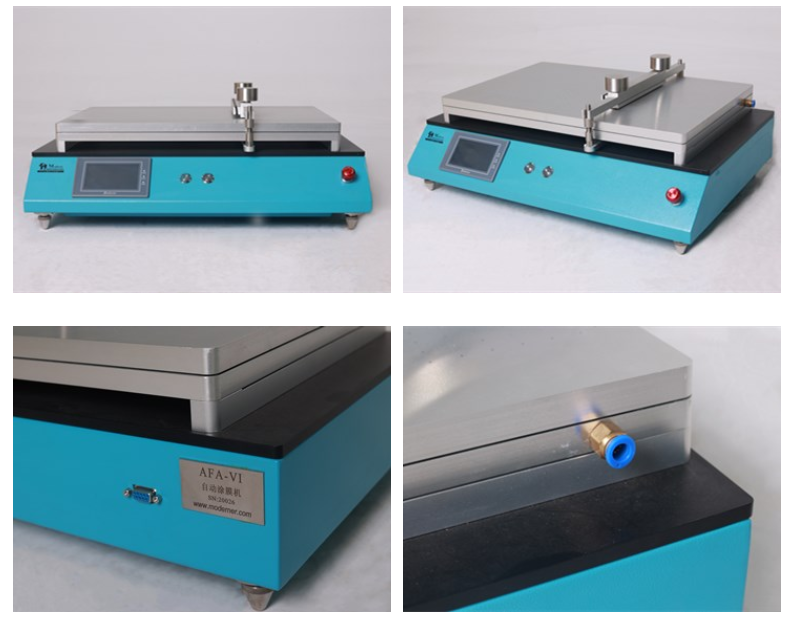

The AFA series automatic film coating machine uses an electric push rod to realize the coating movement of the Wet Film Applicator or wire rod, effectively avoiding the instability of manual coating. This machine adopts single-chip microcomputer control technology; the touch screen displays and selects the left and right speed and displacement, and displays the actual moving distance of the coating in real time during operation; the coating frame can be returned electrically or manually; the operation interface is simple and clear, which is very convenient for the operator to use ;For convenience of use, left and right row start/stop mechanical buttons and emergency stop mechanical buttons are also added.

This machine has two optional configurations: a detachable "vacuum coating table" and a "jig coating table" for customers to choose when ordering.

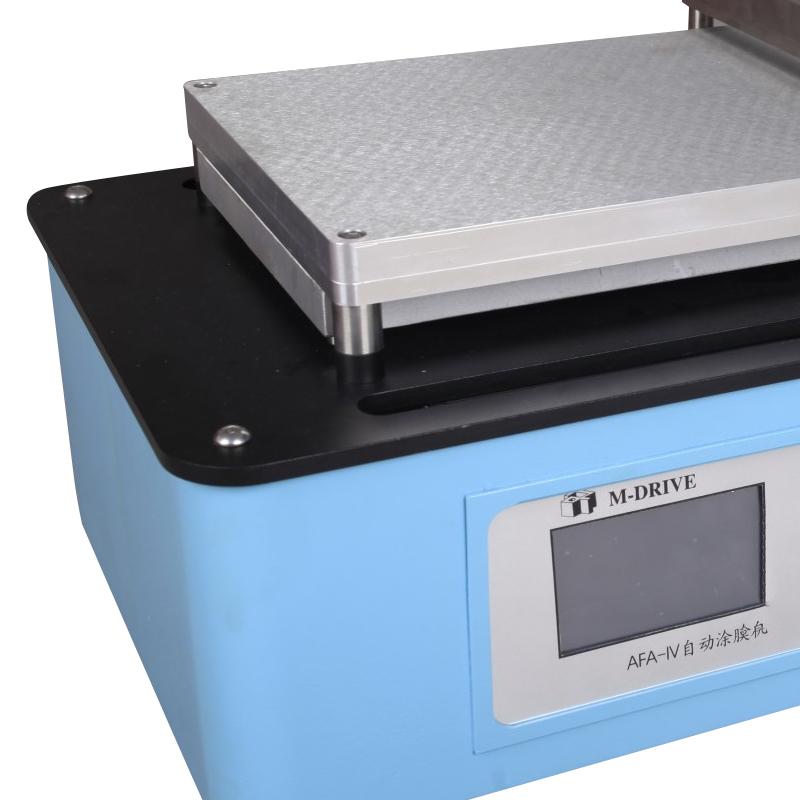

The vacuum coating table uses an external Vacuum Pump (optional required). The vacuum coating table panel is positioned by positioning pins and can be easily removed for cleaning.

The coating push rod of this machine has been improved and can be used to push the Wet Film Applicator. After installing the wire rod pusher, it can also be used to apply wire rods of various specifications. The wire rod pushing frame can be attached with a counterweight to meet the pressure requirements during wire rod coating.

Note: Wet film preppers and wire rods must be purchased separately.

The AFA series automatic film coating machine is used in the testing process of chemical raw materials. Users should establish appropriate safety and protective measures and determine rules and regulations in accordance with relevant safety regulations before use. Safety issues related to contact with chemical raw materials should be established by the user and are beyond the scope of this manual.

AFA series models

Note: When the push rod displacement is set to 0, the moving distance is controlled by the limit switches at both ends; when the push rod displacement is set to less than 25, it automatically changes to 25.

Instructions

1. Place the instrument on a stable workbench, and adjust the feet of the instrument to ensure that the instrument is placed stably. The instrument should be kept away from complex electromagnetic interference sources.

2. Turn the power switch on the back of the chassis to the off position, then plug in the power cord (located on the back of the chassis) and turn on the power.

3. Connect the Vacuum Pump exhaust pipe to the vacuum coating table (you can start the Vacuum Pump and check whether the adsorption of the vacuum coating table is normal).

4. Install the coating push rod on the bracket. The installed coating push rod can be pushed by hand.

5. After completing the above preparations, turn on the power switch and you can use it.

6. Parameter selection and operation operations can be realized through the touch screen.

7. The "<" and ">" mechanical buttons can also be used to start and stop the left and right operation of the instrument (the function is the same as the touch screen). Press any mechanical button during the operation of the instrument to stop the operation. Note: When the touch screen is running, the "<" or ">" button you click changes to "□", and the other button automatically displays an invalid symbol. You must click the "□" button to stop running.

8. The instrument has an emergency stop button, which is located on the right side of the front of the instrument. It needs to be released to pop up before the instrument can run.

Precautions

1. Clean and maintain the instrument promptly after use.

2. If the coating substrate is smaller than the small hole range of the vacuum coating table, you can use electrostatic cling film to cover the exposed small holes.

3. The vacuum coating table panel can be removed for cleaning. Pay attention to the upper and lower planes so that there are no bumps that affect the vacuuming effect.

4. The wire rod push frame can be installed reversibly (fixed by the screws of the counterweight block). One side is used for wire rods with a diameter of less than 12, and the other side is used for wire rods with a diameter of more than 12. Please remove it from the push rod when not in use.

5. Specifications of consumable parts: vacuum coating table O-ring seal 335×5.30 GB3452.1; wire rod pusher frame O-ring seal 100×3.55 GB3452.1.

Optional

Packing list：AFA- IV Automatic Film Applicator × 1, Vacuum Pump X1, Manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
