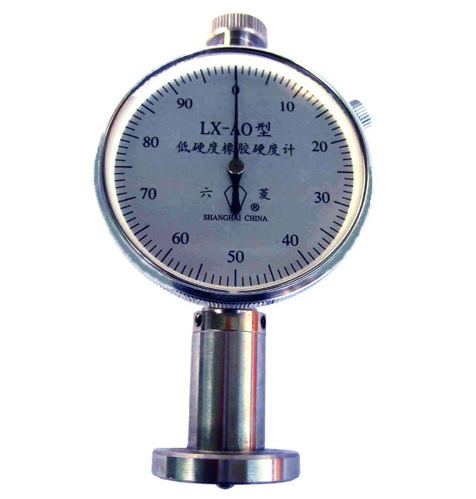

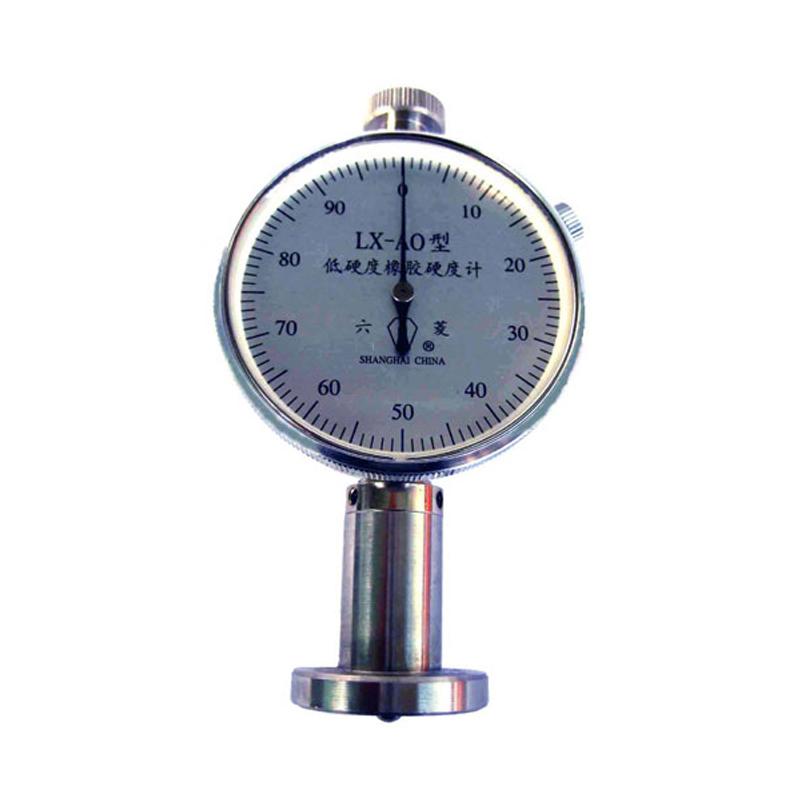

LIULING LX-AO Low Hardness Rubber hardness gauge
SELIULING LX-AO low Hardness rubber hardness gauge is a single head model, testing 0HAO~ 100HAO Hardness range of rubber hardness gauge, LX-AO low Hardness rubber hardness gauge pressure pin end force of 0.55N~ 8.05N.
$243.00/set
PromotionLoading...
Coupon
Model：
LX-AO
Similar products
-
LANDTEK HT6510O Shore Durometer Soft resilience material, printing roller, Spinning & weaving fabric, Cotton, Acrylic, Rayon, Belon$ 278.00SE -
Rubber Shore Durometer Kit LX-A + LAC-J Hypertherm with Test Stand$ 206.00SE -
LEEB LX-A Shore Hardness Gauge Measurement range 10~90HA$ 165.00 -
LIULING LX-A Shore rubber hardness gauge machine$ 510.00SE
LiuLing LX-AO Hardness rubber hardness gaugeSPEC
LiuLing LX-AO Hardness rubber hardness gaugeDetails
LiuLing LX-AO Hardness rubber hardness gaugePacking list
- SKU
- NB019821
- Pin stroke range
- 0~2.5mm
- resolution
- 1HAO
- Measurement range
- 0~100HAO
- measurement error
- ±1HAO
- Pin end pressure
- 0.55~8.05N (56.1gf~821gf)
LX-AO
Hardness rubber hardness gauge
Introduction
Liuling LX-AO (single meter) low-hardness rubber durometer It refers to the implementation of GB/T531.1-2008/ISO 7619-1:2004 Part 1 of the test method for indentation hardness of vulcanized rubber or thermoplastic rubber: Shore durometer method (Shore hardness) standard in the relevant provisions.
FAQ
QDo you have the Low Hardness Rubber Hardness Tester required in the JB/T6148 standard?
A
This LX-AO Low Hardness Rubber Hardness Tester will do.
Standard
- 1GB/T 39693.2-2025《Rubber, vulcanized or thermoplastic—Determination of hardness—Part 2: Hardness between 10 IRHD and 100 IRHD》
- 2DIN 《Shore A and Shore D hardness testing of rubber》
- 3JJF 2075-2023《 Calibration Specification for International Rubber Hardness Degrees Testers(Scales N,H,L)》
- 4JJF 2074-2023《Calibration Specification for International Rubber Hardness Degrees Reference Blocks(Scales N,H,L)》
- 5HG/T 2368-2011《Technical specifications for rubber durometers types A》
- 6KS MISO 868-2001《Plastics and Ebonite - Determination of Indentation Hardness by Means of a Durometer (Shore Hardness)》
- 7GB/T 603-2023《Chemical reagent—Preparations of reagent solutions for use in test methods》
- 8GB/T 18173.3-2014《Polymer water-proof materials―Part 3：Hydrophilic expasion rubber》
- 9HG/T 4009-2008《Flexographic Printing Plates applied in corrugated board》
- 10GB/T 2411-2008《Plastics and ebonite - Determination of indentation hardness by means of a duronmeter(shore hardness)》
