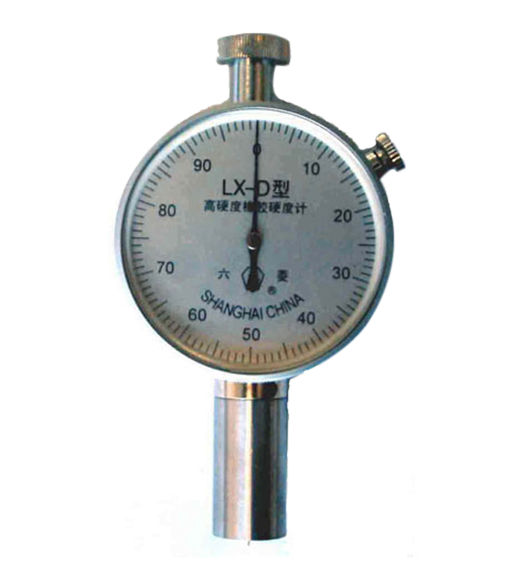

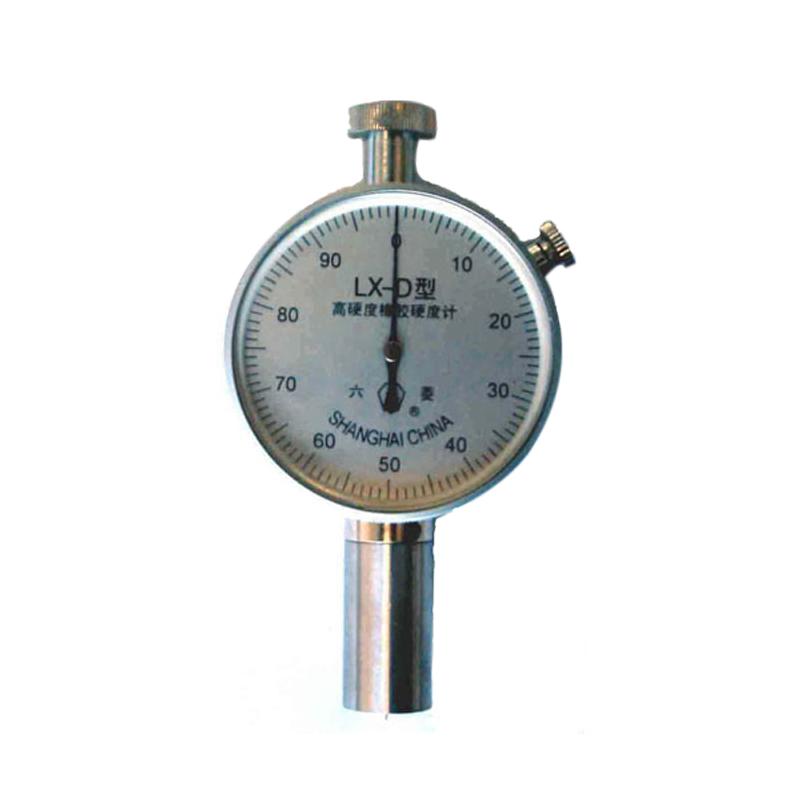

LIULING LX-D Hardness rubber hardness gauge
SE
LX-D (single form)
LiuLing LX-D (single form) Hardness rubber hardness gauge (single table)SPEC
LiuLing LX-D (single form) Hardness rubber hardness gauge (single table)Details
LiuLing LX-D (single form) Hardness rubber hardness gauge (single table)Packing list
- SKU
- NB019827
- Crimping needle stroke range
- 0~2.5mm
- resolution
- 1HD
- Measuring range
- 0~100HD
- Measurement error
- ±1HD
- Pin end pressure
- 0~44.5N（0gf~4538gf）
Introduction
Liuling LX-D (single meter) high-hardness rubber Hardness Tester implements the American Society for Testing and Materials standard ASTM D 2240-05 and the Japanese national standard JIS K 6253-2006, and refers to the implementation of my country's GB/T 531.1-2008, "Vulcanized rubber or Thermoplastic Rubber Indentation Hardness Test Method Part One: Shore Durometer Method (Shore Hardness), this national standard is equivalent to the international standard ISO 7619-1-2004, and also refers to the implementation of JJG 304-2003 "Shore Durometer Verification Regulations "Relevant provisions in
The main purpose
It is suitable for measuring the Shore A rubber hardness greater than 90° at the production site, and can also measure the hardness value of engineering plastics, glass steel and other similar high-hardness materials
