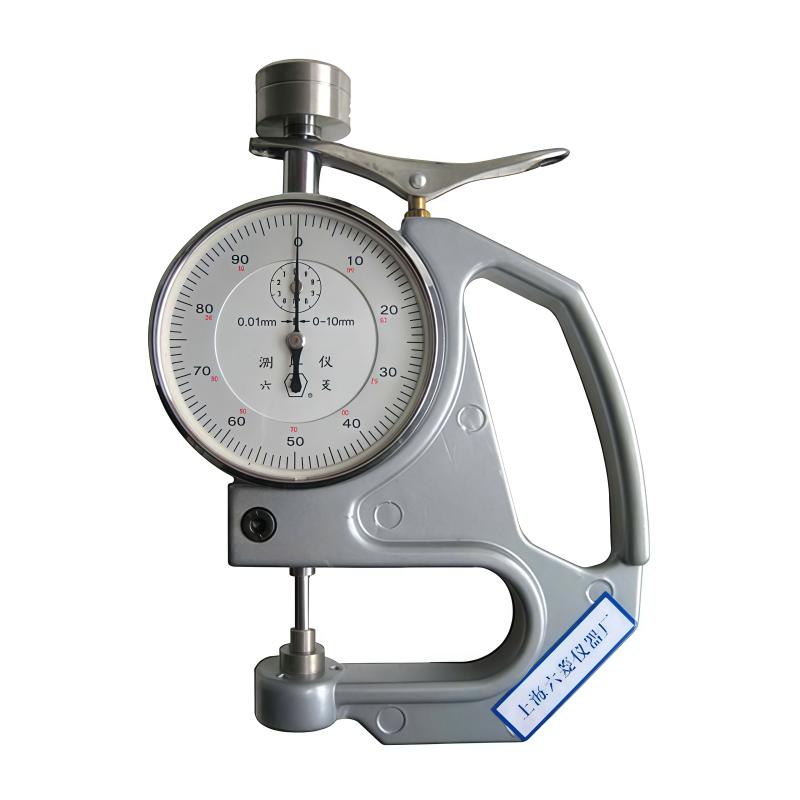

LIULING CH-10-A Hand Rubber Thickness Gauge 0~ 10mm

SE
LIULING CH-10-A hand rubber thickness gauge is used to test the thickness of rubber, plastics, etc., suitable for on-site measurement in the workshop, CH-10-A hand rubber thickness gauge measurement thickness range 0~ 10mm, Dial indication.
$218.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI

LiuLing CH-10-A Hand rubber thickness gaugeSPEC

LiuLing CH-10-A Hand rubber thickness gaugeDetails

LiuLing CH-10-A Hand rubber thickness gaugePacking list

SKU
NB019831
Measuring range
0~10mm
Measurement Accuracy
≤0.02mm
Reading display
Pointer
Graduation
0.01mm
Pressure and Mass required
22kPa ± 5kPa (176g ± 20g)
Diameter of the upper probe
& 10mm plane
Probe center to maximum measurement depth
130mm
Standards
HG / T 2041-2009
CH-10-A
Hand rubber thickness gauge
LIULING CH-10-A Hand Rubber Thickness Gauge 0~ 10mm Picture

Introduction

This Thickness Gauge is an instrument for measuring the thickness of rubber and plastic products. It refers to the implementation of HG/T 2041-2009 "Technical Conditions for Rubber Thickness Gauge", HG/T 2198-2011 "General Requirements for Physical Test Methods of Vulcanized Rubber" and HG/T T 2382—1992 "General Technical Conditions for Rubber Testing Instruments and Equipment" and other industry standards of the Ministry of Chemical Industry. It has the characteristics of simple structure, convenient use and reliable quality. The large-span Thickness Gauge with a measuring depth of 130mm has only one specification of hand type. Easy to carry, hand-held measurement, suitable for on-site measurement in the workshop.

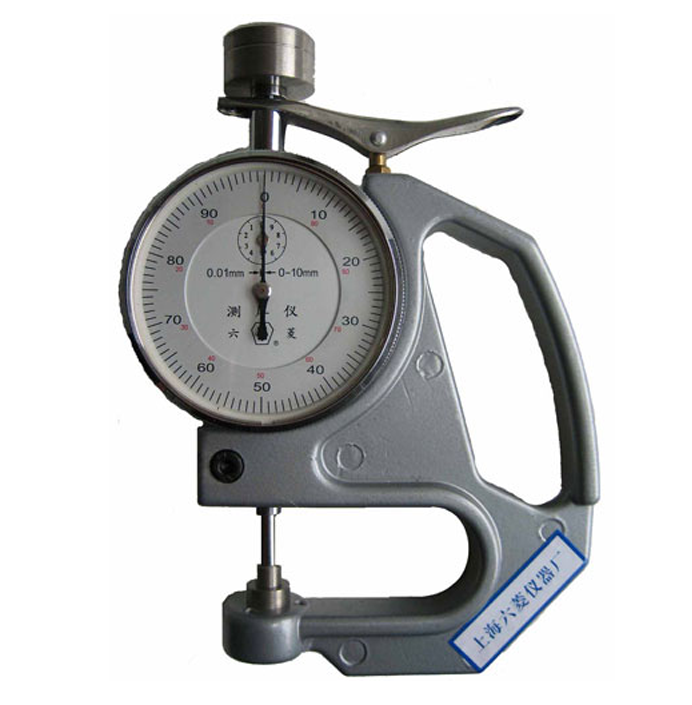

Liuling CH-10-A Hand Rubber Thickness Gauge

FAQ
QExcuse me, does your company's CH-10-A have a probe with a diameter of 4mm?
A This is a 6mm one, but not a 4mm one.
QWhat is the difference between CH-10-A and CH-10-AT?
A The desktop is CH-10-AT, and the hand is CH-10-A, both of which have a total pressure weight of 63g +/- 7g and are equipped with 34 heavy hammers.
QCan this LIULING hand rubber thickness gauge correspond to GB/T7125?
A Yes, please refer to the NBchao standards page for specific standards.
