LIULING CH-10-AT Percent Desktop Rubber Thickness Gauge 0~ 10mm

SE
LIULING CH-10-AT Percent Benchtop Rubber Thickness Gauge is a pointer type thickness gauge, used to test the film thickness of rubber, CH-10-AT Benchtop Rubber Thickness Gauge thickness range of 0~ 10mm, accuracy ≤ 0.02mm.
$212.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI

LiuLing CH-10-AT Percent Benchtop Rubber Thickness GaugeSPEC

LiuLing CH-10-AT Percent Benchtop Rubber Thickness GaugeDetails

LiuLing CH-10-AT Percent Benchtop Rubber Thickness GaugePacking list

SKU
NB019832
Measurement range
0~10mm
Measurement accuracy
≤0.02mm
reading display
Pointer
Graduation
0.01mm
Pressure and mass required
22kPa±5 kPa (63 g±7 g)
upper probe diameter
& 6Mm plane
Meet the standard
HG/T 2041-2009
CH-10-AT
Percent Benchtop Rubber Thickness Gauge

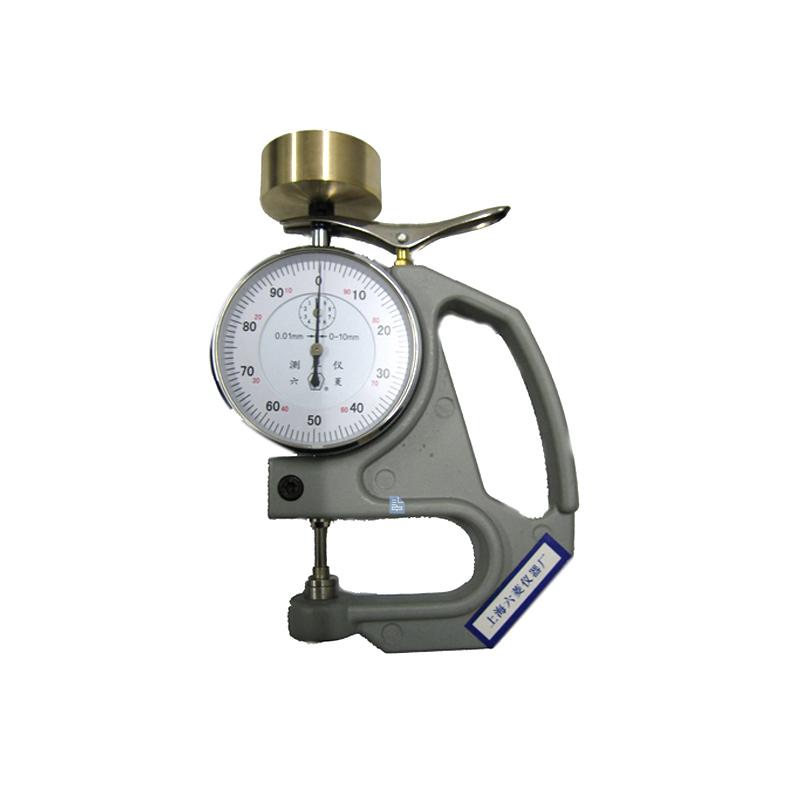

LIULING CH-10-AT Percent Desktop Rubber Thickness Gauge 0~ 10mm Picture

Introduction

This Thickness Gauge is an instrument for measuring the thickness of rubber and plastic products. It refers to the implementation of HG/T 2041-2009 "Technical Conditions for Rubber Thickness Gauge", HG/T 2198-2011 "General Requirements for Physical Test Methods of Vulcanized Rubber" and HG/T T 2382—1992 "General Technical Conditions for Rubber Testing Instruments and Equipment" and other industry standards of the Ministry of Chemical Industry. It has the characteristics of simple structure, convenient use and reliable quality. The Thickness Gauge has two specifications of hand type and table type. The hand type can be carried around, hand-held measurement, suitable for on-site measurement in the workshop. The desktop can be used in physical laboratories for sample determination.

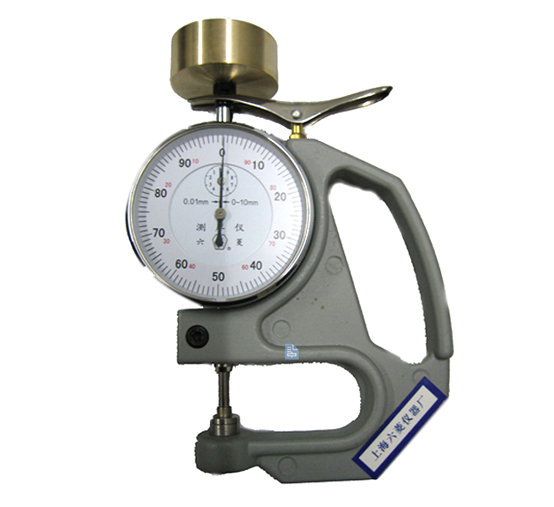

Liuling CH-10-AT Desktop Rubber Thickness Gauge Display

FAQ
QWhat is the difference between CH-10-A and CH-10-AT?
A The desktop is CH-10-AT, and the hand is CH-10-A, both of which have a total pressure weight of 63g +/- 7g and are equipped with 34 heavy hammers.
QDo you have any paper thickness gauge suggestions?
A CH-10-AT is fine.
QCan the LIULING CH-10-AT desktop rubber thickness gauge meet the ASTMF2251 standard?
A Applicable, you can consult the customer service of the mall for details about the ASTMF2251 standard.
