LIULING CH-10-AT asphalt waterproof membrane thickness gauge 0~ 10mm

SE
The thickness range of the LIULING CH-10-AT asphalt waterproof membrane thickness gauge is 0~ 10mm, and the accuracy is less than or equal to 0.02mm. The CH-10-AT asphalt waterproof membrane thickness gauge has a load HG/T standard, which can be tested in a physical laboratory.
$257.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT

LiuLing CH-10-AT（10mm） Asphalt waterproof membrane thickness gaugeSPEC

LiuLing CH-10-AT（10mm） Asphalt waterproof membrane thickness gaugeDetails

LiuLing CH-10-AT（10mm） Asphalt waterproof membrane thickness gaugePacking list

SKU
NB019833
Measuring range
0~10mm
Measurement Accuracy
≤0.02mm
Reading display
Pointer
Graduation
0.01mm
Pressure and Mass required
22kPa±2kPa (163 g±7 g)
Diameter of the upper probe
< 10mm plane
Standards
HG / T 2041-2009
CH-10-AT（10mm）
Asphalt waterproof membrane thickness gauge

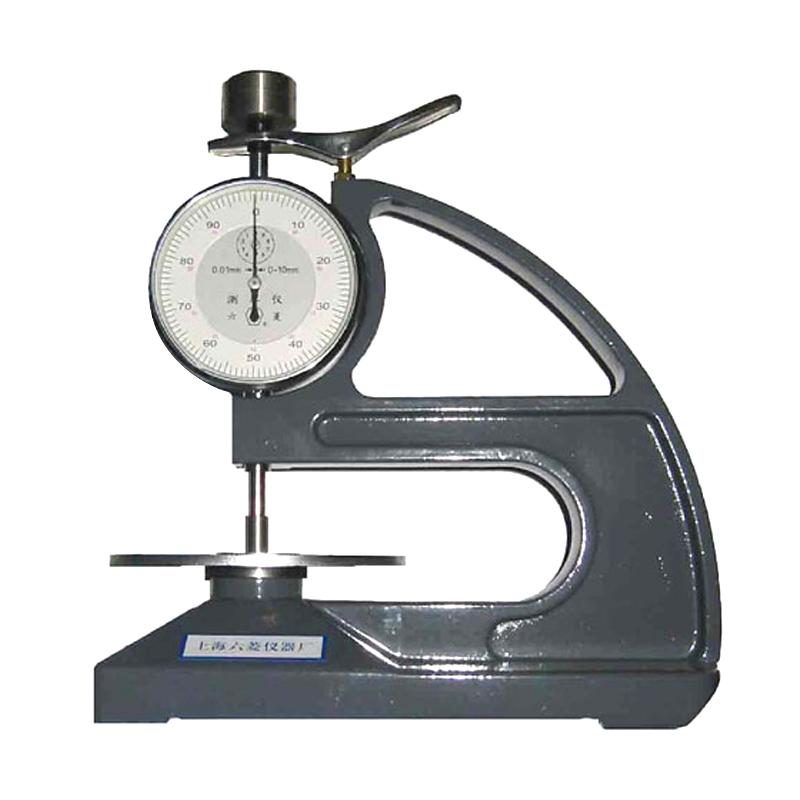

LIULING CH-10-AT asphalt waterproof membrane thickness gauge 0~ 10mm Picture

Introduction

This Thickness Gauge is an instrument for measuring the thickness of rubber and plastic products. It refers to the implementation of HG/T 2041-2009 "Technical Conditions for Rubber Thickness Gauge", HG/T 2198-2011 "General Requirements for Physical Test Methods of Vulcanized Rubber" and HG/T T 2382—1992 "General Technical Conditions for Rubber Testing Instruments and Equipment" and other industry standards of the Ministry of Chemical Industry. It has the characteristics of simple structure, convenient use and reliable quality. The Thickness Gauge has two specifications of hand type and table type. The hand type can be carried around, hand-held measurement, suitable for on-site measurement in the workshop. The desktop can be used in physical laboratories for sample determination.

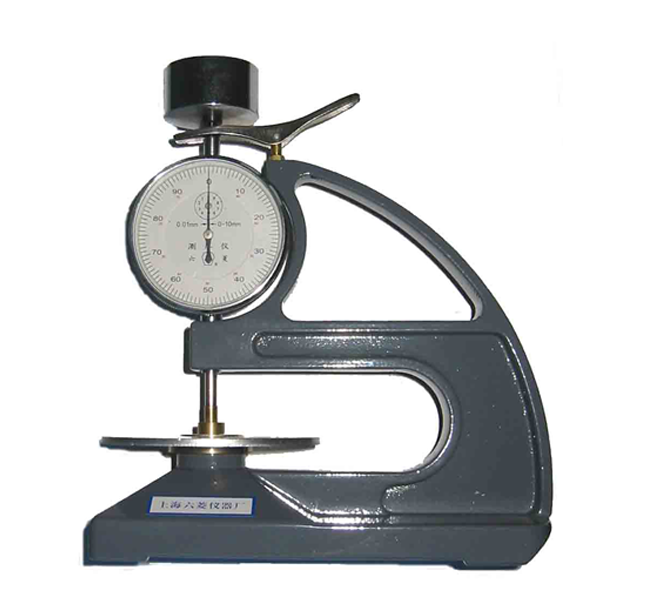

Liuling CH-10-AT (10mm) asphalt waterproof membrane Thickness Gauge

FAQ
QFind an asphalt waterproof membrane thickness gauge for QB/T1055
A This CH-10-AT (10mm) asphalt waterproof membrane thickness gauge is.
