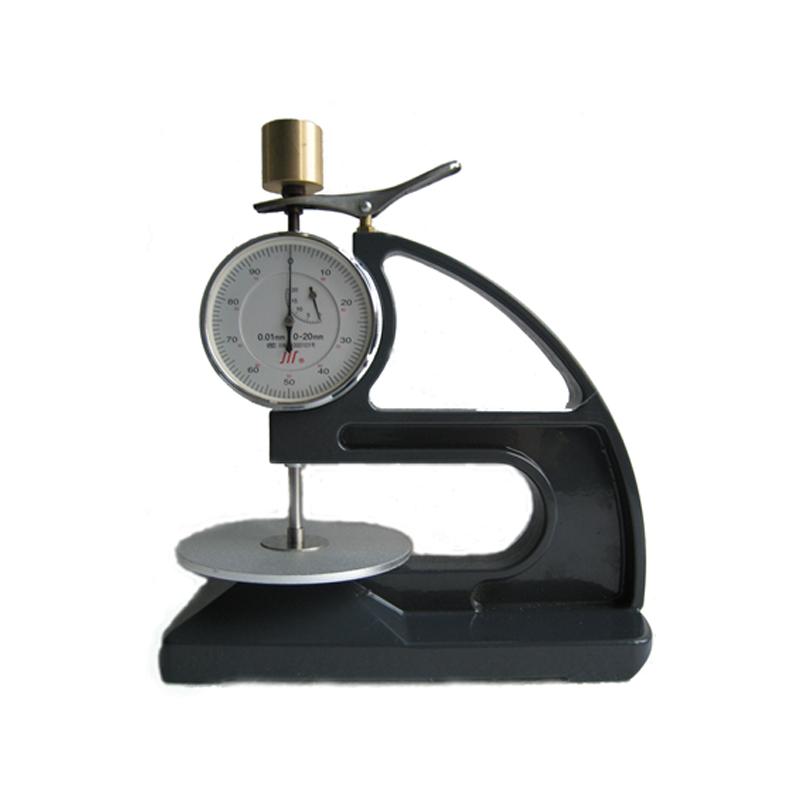

LIULING CH-20-AT Percent Benchtop Rubber Thickness Gauge 0mm~ 20mm

SE
The LIULING CH-20-AT Benchtop Rubber Thickness Gauge has a thickness measurement range of 0 to 20mm. It is a pointer rubber Thickness Gauge. The CH-20-AT Benchtop Rubber Thickness Gauge Graduation is 0.01mm.
$298.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

LiuLing CH-20-AT Percent Benchtop Rubber Thickness GaugeSPEC

LiuLing CH-20-AT Percent Benchtop Rubber Thickness GaugeDetails

LiuLing CH-20-AT Percent Benchtop Rubber Thickness GaugePacking list

SKU
NB019835
Measurement range
0~20mm
Measurement accuracy
≤0.02mm
reading display
Pointer
Graduation
0.01mm
Pressure and mass required
22kPa ± 5kPa (63 g±7 g)
Probe diameter
Φ6mm
Meet the standard
HG/T 2041-2009
CH-20-AT
Percent Benchtop Rubber Thickness Gauge
LIULING CH-20-AT Percent Benchtop Rubber Thickness Gauge 0mm~ 20mm Picture

Introduction

Liuling CH-20-AT Desktop Rubber Thickness Gauge This Thickness Gauge is an instrument for measuring the thickness of rubber and plastic products. It refers to the implementation of HG/T 2041-2009 "Technical Conditions for Rubber Thickness Gauge", HG/T 2198-2011 "General Requirements for Vulcanized Rubber Physical Test Methods" and HG/T 2382-1992 "General Technical Specifications for Rubber Testing Instruments and Equipment" and other industrial standards of the Ministry of Chemical Industry. It has the characteristics of simple structure, convenient use and reliable quality.

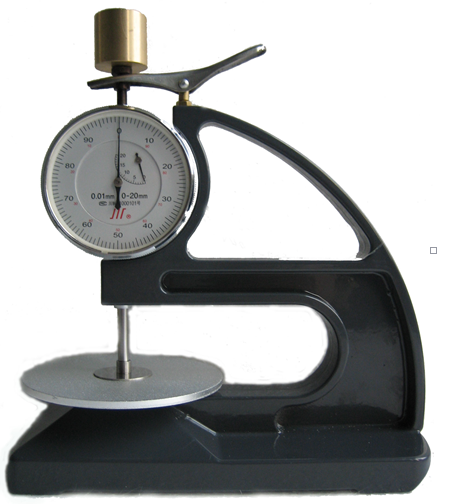

Liuling CH-20-AT Desktop Rubber Thickness Gauge

FAQ
QRecommended one: Range: 0-20mm mechanical, flat head
A This model CH-20-AT desktop rubber thickness gauge can satisfy
QCan I add a 4mm test head and a 10kpa pressure accessory to the LIULING CH-20-AT?
A It can't be matched.
QDoes this desktop rubber thickness gauge meet the QB/T1055 standard?
A This desktop rubber thickness gauge is suitable for QB/T1055. Please consult customer service for detailed application definition.
