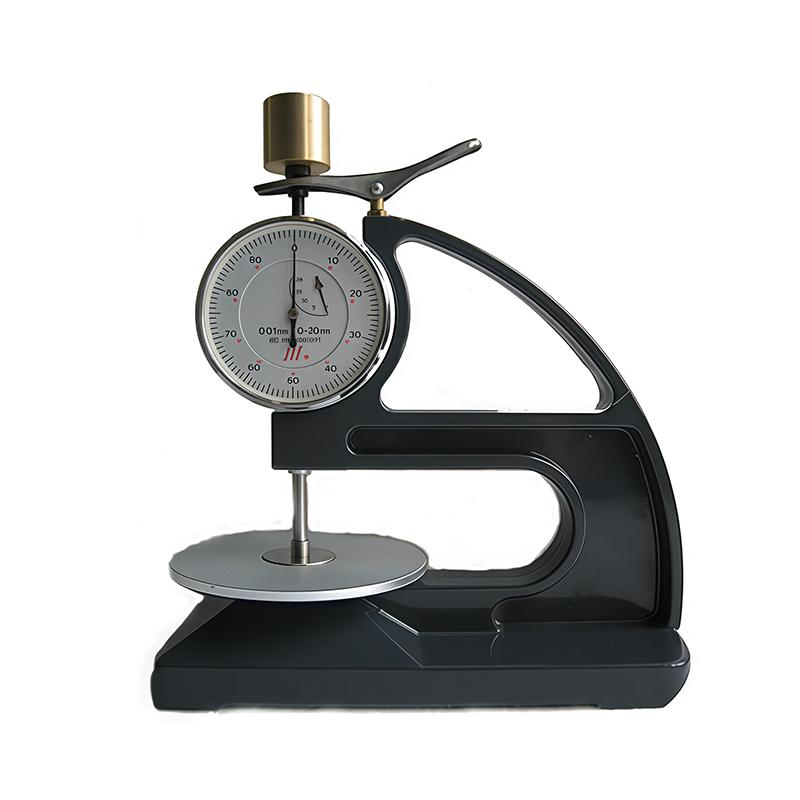

LIULING CH-20 pointer, desktop percentile gauge thickness gauge, rubber plastic Film thickness measurement

Measurement range 0-20mm, accuracy ≤ 0.02mm, two pressure options, equipped with stainless steel flat table, suitable for standard Film thickness testing.

$438.00/set

PromotionLoading...

Coupon

Model：

CH-20 (hands)

Certificate

LiuLing

Manufacturer authorization

Contact

Details SPEC Con CAT

LiuLing CH-20 (hands) Desktop percentile gauge thickness gaugeSPEC

LiuLing CH-20 (hands) Desktop percentile gauge thickness gaugeDetails

LiuLing CH-20 (hands) Desktop percentile gauge thickness gaugePacking list

SKU: NB019836

Measurement range: 0~20mm

Measurement accuracy: ≤0.02mm

reading display: Pointer

Graduation: 0.01mm

Pressure and mass required: ① 10kPa +/- 2kPa (13 g +/- 2 g) plus 6g weight; ② 22kPa +/- 5kPa (28 g +/- 6 g) plus 20g weight.

Probe diameter: φ 4mm plane

Meet the standard: HG/T 2041-2009

workbench: φ 23mm stainless steel flat plus φ 80mm tray

CH-20 (hands)

Desktop percentile gauge thickness gauge

Measurement range 0-20mm, accuracy ≤ 0.02mm, two pressure options, equipped with stainless steel flat table, suitable for standard Film thickness testing.

Introduction

Liuling CH-20 (Pointer) Desktop Percentage Special Gauge Thickness Gauge This Thickness Gauge is an instrument for measuring the thickness of rubber and plastic products. T 2198-2011 "General Requirements for Vulcanized Rubber Physical Test Methods" and HG/T 2382-1992 "General Technical Conditions for Rubber Testing Instruments and Equipment" and other industrial standards of the Ministry of Chemical Industry. It has the characteristics of simple structure, convenient use and reliable quality.

Liuling CH-20-AT Desktop Rubber Thickness Gauge

FAQ

QDoes this desktop percentile gauge meet the ASTMF2251 standard?

A This desktop percentile gauge thickness gauge is suitable for ASTMF2251. Please consult customer service for detailed application definition.
