LIULING CH-20Ø 4 Upper Probe 10kPa, 22kPa Digital Display Desktop Thousand-decimal Special Thickness Gauge

SE
LIULING CH-20Ø 4 on the probe is a thousands of special gauge thickness gauge digital display, thickness range of 0mm~ 20mm, CH-20000 special gauge thickness gauge Graduation is 0.001mm, probe diameter is Ø 4mm plane.
$698.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT

LiuLing CH-20Ø 4 upper probe 10kPa, 22kPa digital desktop thousand-point special gauge thickness gaugeSPEC

LiuLing CH-20Ø 4 upper probe 10kPa, 22kPa digital desktop thousand-point special gauge thickness gaugeDetails

LiuLing CH-20Ø 4 upper probe 10kPa, 22kPa digital desktop thousand-point special gauge thickness gaugePacking list

SKU
NB019837
Measurement range
0~20mm
Measurement accuracy
≤0.02mm
reading display
digital display
Graduation
0.001mm
Pressure and mass required
① 10kPa +/- 2kPa (13 g +/- 2 g) plus 6g weight; ② 22kPa +/- 5kPa (28 g +/- 6 g) plus 20g weight.
Probe diameter
φ 4mm plane
Meet the standard
HG/T 2041-2009
workbench
φ 52mm plane
CH-20Ø 4 upper probe
10kPa, 22kPa digital desktop thousand-point special gauge thickness gauge

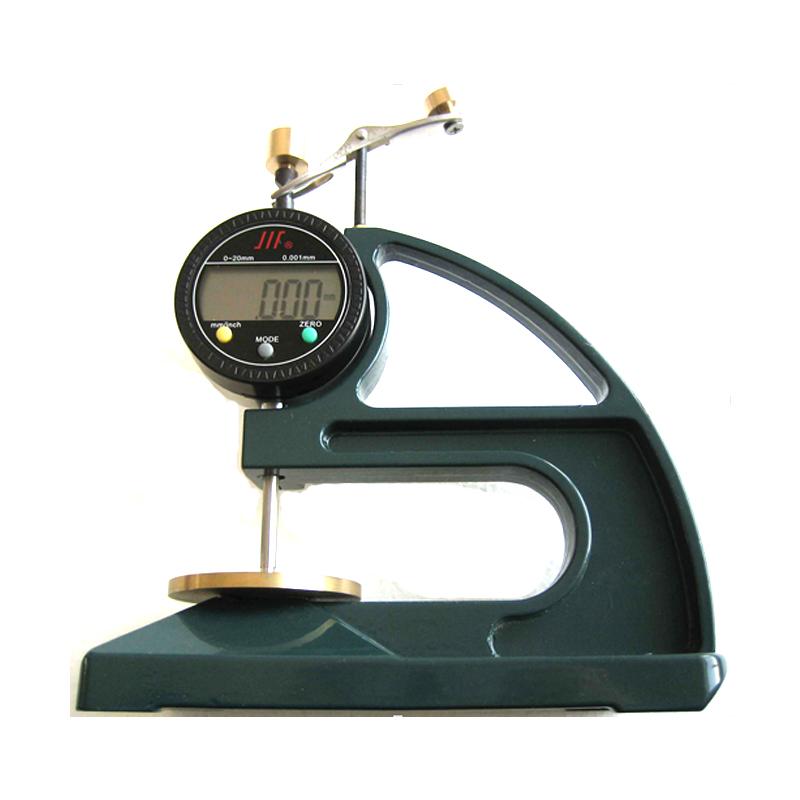

LIULING CH-20Ø 4 Upper Probe 10kPa, 22kPa Digital Display Desktop Thousand-decimal Special Thickness Gauge Picture

Introduction

Liuling CH-20 (Digital Display) Digital Display Desktop Micrometer Special Gauge This Thickness Gauge is a Thickness Gauge customized according to customer requirements. It refers to Article 4.4 of the national standard GB/T 7759.1-2015/ISO 815-1:2008 "Determination of long-term compression deformation of vulcanized rubber or thermoplastic rubber Part 1: under normal temperature and high temperature conditions": the pressure applied to rubber with hardness less than 35 IRHD shall be 10kPa±2kPa, and the pressure applied to rubber with hardness greater than or equal to 35 IRHD shall be 22kPa±5kPa. This Thickness Gauge has the characteristics of simple structure, easy to use and reliable quality.

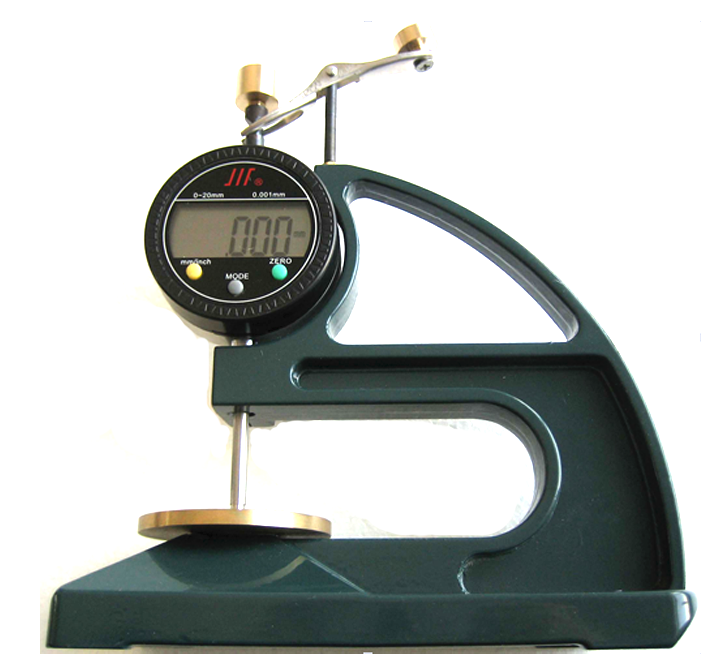

Liuling CH-20 (Digital Display) Digital Display Desktop Micrometer Special Gauge

FAQ
QDoes this thousand-point special gauge thickness gauge meet the JJG (light industry) 50.3 standard?
A The thousand-point special gauge thickness gauge is suitable for JJG (light industry) 50.3. Please consult customer service for detailed application definition.
