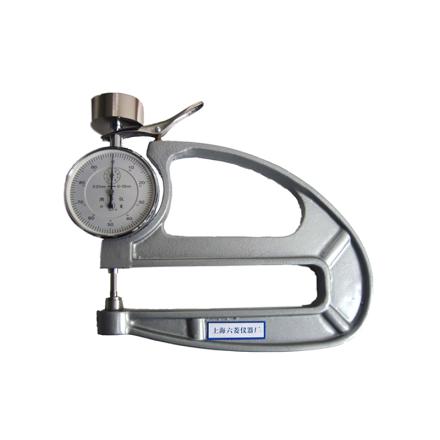

LiuLing CH-10-A (large) φ 10mm upper probe Percent Hand Large Span Rubber Thickness Gauge - Specifications

LIULING CH-10-A (large) φ 10mm upper probe, 100% hand-type large-span rubber thickness gauge 0mm~ 10mm

Brand：LiuLing

Model：CH-10-A (large) φ 10mm upper probe

Name：Percent Hand Large Span Rubber Thickness Gauge

Specifications

Measurement range	0~10mm
Measurement accuracy	≤0.02mm
reading display	Pointer
Graduation	0.01mm
Pressure and mass required	22kPa±5 kPa (63 g±7 g)
Probe diameter	φ 6mm plane
Meet the standard	HG/T 2041-2009
Probe center to maximum measurement depth	130mm

Packing list

host X1, manual X1, certificate X1, warranty card X1

After-sales instructions

Warranty days: 180 days

If the product quality is not caused by human beings, the manufacturer provides half a year of free warranty service.

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/19840/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
