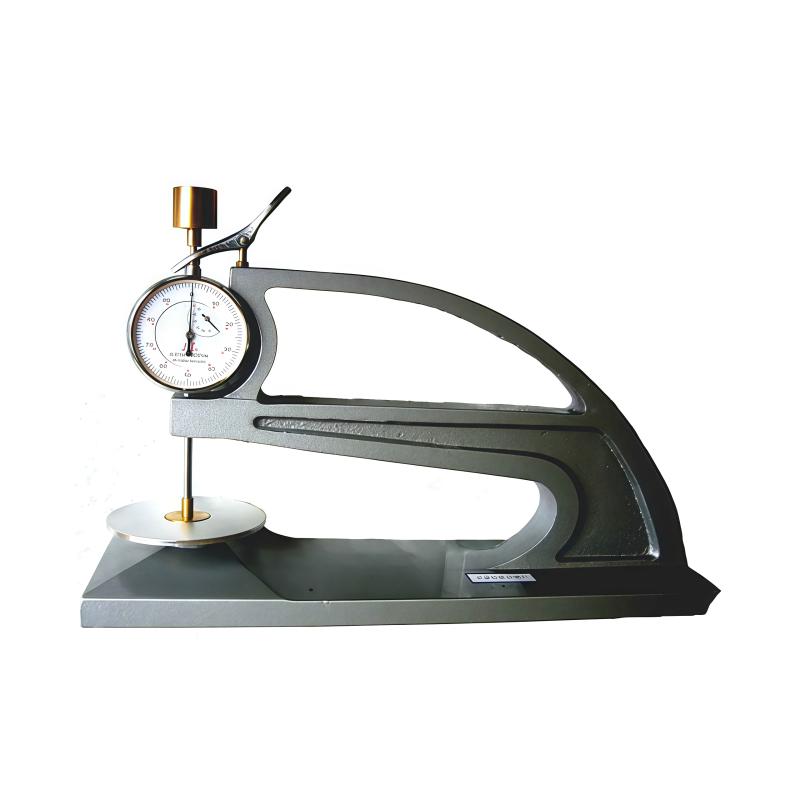

LIULING CH-30 Large Span Desktop Rubber Thickness Gauge 0mm~ 30mm

SE
The thickness range of LIULING CH-30 desktop rubber thickness gauge is 0mm~ 30mm, which meets the HG/T standard. The Graduation of CH-30 desktop rubber thickness gauge is 0.01mm, and the diameter of the probe is Ø 6mm.
Model：
Certificate
Contact
Details SPEC CAT OI

LiuLing CH-30 Large span desktop rubber thickness gaugeSPEC

LiuLing CH-30 Large span desktop rubber thickness gaugeDetails

LiuLing CH-30 Large span desktop rubber thickness gaugePacking list

SKU
NB019841
Measurement range
0~30mm
Measurement accuracy
≤0.02mm
reading display
Pointer
Graduation
0.01mm
Pressure and mass required
22kPa±5 kPa (63 g±7 g)
Probe diameter
φ 6mm plane
Meet the standard
HG/T 2041-2009
CH-30
Large span desktop rubber thickness gauge

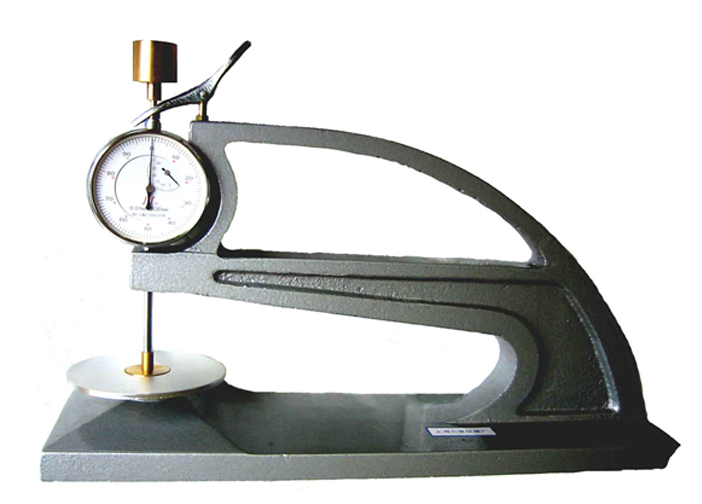

LIULING CH-30 Large Span Desktop Rubber Thickness Gauge 0mm~ 30mm Picture

Introduction

Liuling CH-30 Large-span Desktop Rubber Thickness Gauge This Thickness Gauge is an instrument for measuring the thickness of rubber and plastic products. "General Requirements for Vulcanized Rubber Physical Test Methods" and HG/T 2382-1992 "General Technical Specifications for Rubber Testing Instruments and Equipment" and other industrial standards of the Ministry of Chemical Industry. It has the characteristics of simple structure, convenient use and reliable quality.

Liuling CH-30 Large-Span Desktop Rubber Thickness Gauge

FAQ
QExcuse me, is the LIULING CH-30 suitable for testing the plastic runway?
A Yes, the maximum measured is 30mm.
QI want to do a test about JJG (Light Industry) 50.3 standard. Is this large-span desktop rubber thickness gauge okay?
A Sure
