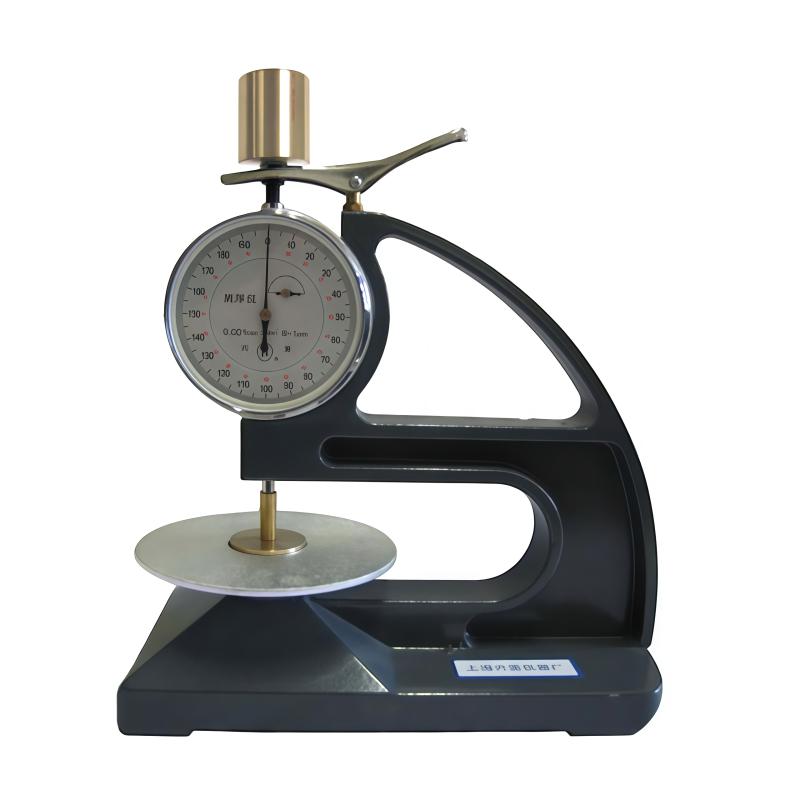

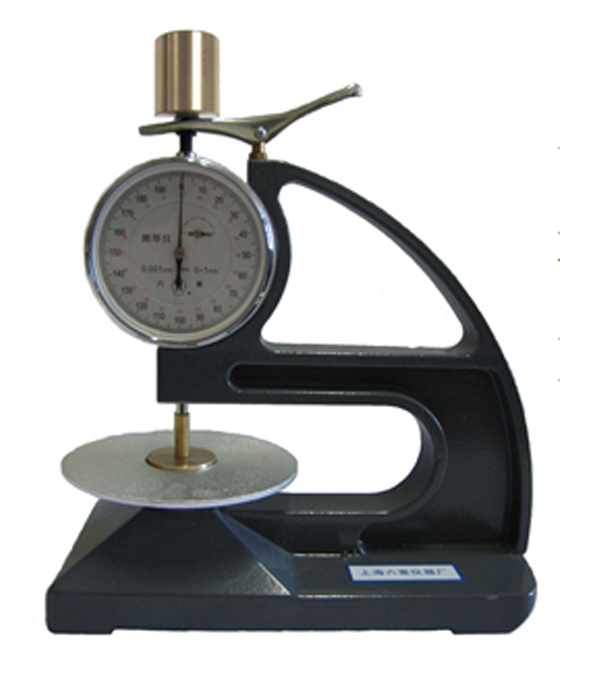

LIULING CH-1-BT Thousand Minutes Desktop Latex Thickness Gauge 0mm-1mm
SE
CH-1-BT
LiuLing CH-1-BT Thousand point desktop latex thickness gaugeSPEC
LiuLing CH-1-BT Thousand point desktop latex thickness gaugeDetails
LiuLing CH-1-BT Thousand point desktop latex thickness gaugePacking list
- SKU
- NB019844
- Measurement range
- 0~1mm
- reading display
- Pointer
- Graduation
- 0.001mm
- Pressure and mass required
- 22kPa±5kPa（44g±4g）
- Probe diameter
- φ 5mm (flat surface)
- Meet the standard
- HG/T 2041-2009
Introduction
This Thickness Gauge is an instrument for measuring the thickness of latex, rubber, paper, etc. It refers to the implementation of HG/T 2041-2009 "Technical Conditions for Rubber Thickness Gauge", HG/T 2198-2011 "General Requirements for Physical Test Methods of Vulcanized Rubber" and HG/T 2382-1992 "General Technical Conditions for Rubber Testing Instruments and Equipment" and other chemical Ministry of Industry Standards.
This instrument has the characteristics of simple structure, convenient use and reliable quality. There are two types of Thickness Gauges: hand type and table type: the hand type can be carried around, hand-held measurement, suitable for on-site measurement in the workshop; the table type can be used for sample measurement in the physical laboratory.
- 1JJF 1488-2014《Calibration Specification for Rubber and Plastic Film Gage》
- 2HG/T 2041-2009《Technical specifications for rubber thickness gauges》
- 3HG/T 4914-2016《Over laminated pressure sensitive adhesive tape》
- 4JJG (轻工)50.3-2000《Alterable Compression Thickness Tester》
- 5JJG (轻工)50.2-2000《Alterable Compression Thickness Tester》
- 6ASTM F2251-2023《Standard Test Method for Thickness Measurement of Flexible Packaging Material》
- 7QB/T 1055-2004《Paper and board-Tester of thickness》
- 8GB/T 7125-2014《Test method for thickness of adhesive tapes》
- 9HG/T 2041-1991《Technical specifications for rubber thickness gauges》
