LIULING CH-1-S Plastic film thickness gauge 0~ 1mm

SE
LIULING CH-1-S Hand Thickness Gauge is a Plastic film thickness measurement instrument, the thickness range is 0~ 1mm, CH-1-S Hand Thickness Gauge probe diameter is 5mm, in line with GB/T6672-2001 standard.
$257.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

LiuLing CH-1-S Plastic film sheet hand thickness gaugeSPEC

LiuLing CH-1-S Plastic film sheet hand thickness gaugeDetails

LiuLing CH-1-S Plastic film sheet hand thickness gaugePacking list

SKU
NB019846
Measuring range
0~1mm
Measurement Accuracy
≤0.005mm
Reading display
Pointer
Graduation
0.001mm
pressure Weight
(1) The measurement surface of the upper probe is Ø 6mm plane, and when the lower probe is plane, the force exerted by the probe on the sample is 0.5N - 1.0N (51gf - 102gf); (2) The upper measurement surface is (SR15 - SR50) mm radius of curvature, when the lower probe is flat, the force exerted by the probe on the sample is 0.1N - 0.5N (10.2gf - 51gf)
Probe diameter
Φ5mm (flat surface)
Standards
GB/T6672-2001 MOD ISO 4593-1993
CH-1-S
Plastic film sheet hand thickness gauge

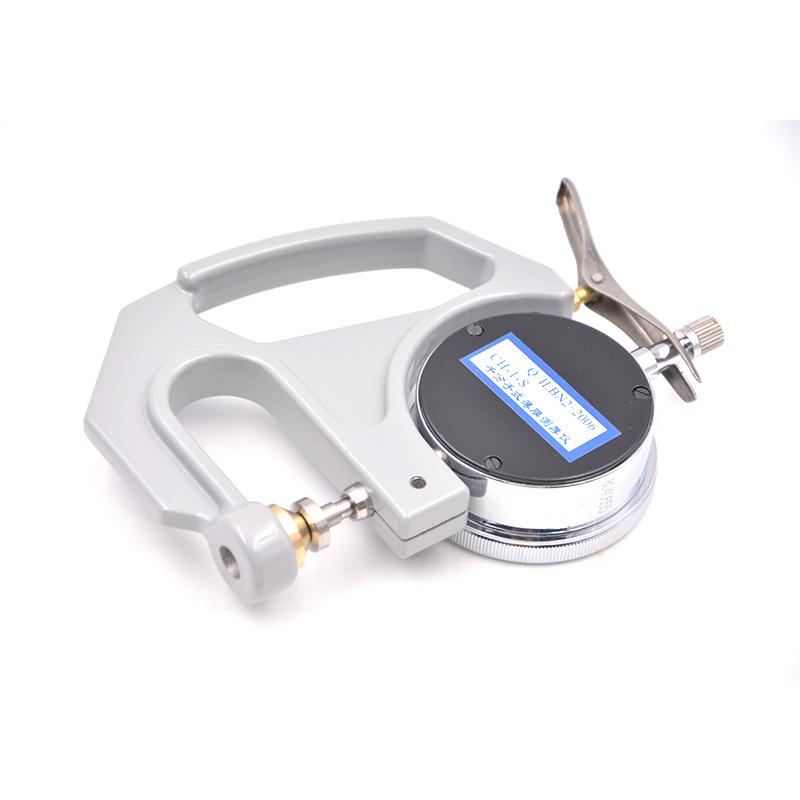

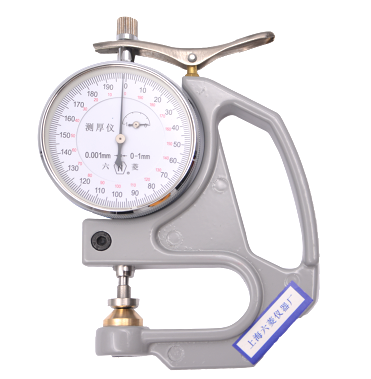

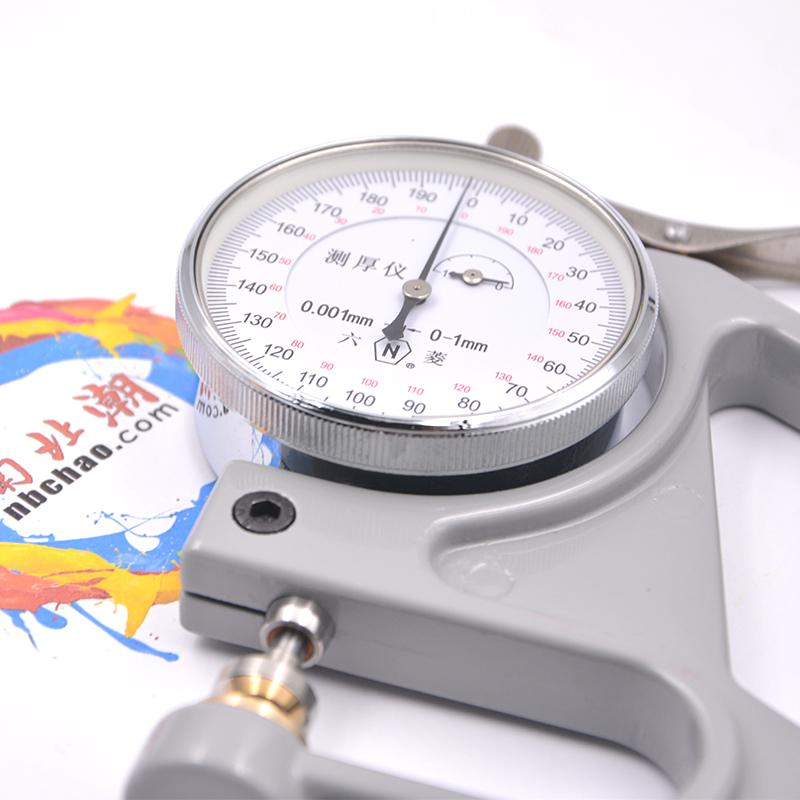

LIULING CH-1-S Plastic film thickness gauge 0~ 1mm Picture

Introduction

Liuling CH-1-S Thickness Gauge for Plastic Thin Sheets This Thickness Gauge is an instrument for measuring the thickness of plastic films and sheets by mechanical measurement, but it is not suitable for embossed films and sheets. It refers to the implementation of the national standard GB/T6672-2001 "Determination of Thickness of Plastic Films and Sheets-Mechanical Measurement Method". ".



FAQ
QQB/T1055 involved in the plastic film sheet hand thickness gauge do you have?
A The CH-1-S plastic film thin sheet hand thickness gauge can be used.
QDo you have a handheld thousand-point thickness gauge to measure film thickness?
A Hello, yes, the CH-1-S hand thickness gauge of Liuling can test Plastic film and so on.
