LIULING CH-1-ST Plastic film thickness gauge 0~ 1mm

SE
Dial; Range 0~ 1mm, accuracy ≤ 0.005mm; Probe diameter 5mm; in line with GB/T6672; not suitable for embossed films and flakes.
$257.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

LiuLing CH-1-ST Plastic film thickness gaugeSPEC

LiuLing CH-1-ST Plastic film thickness gaugeDetails

LiuLing CH-1-ST Plastic film thickness gaugePacking list

SKU
NB019847
Measuring range
0~1mm
Measurement Accuracy
≤0.005mm

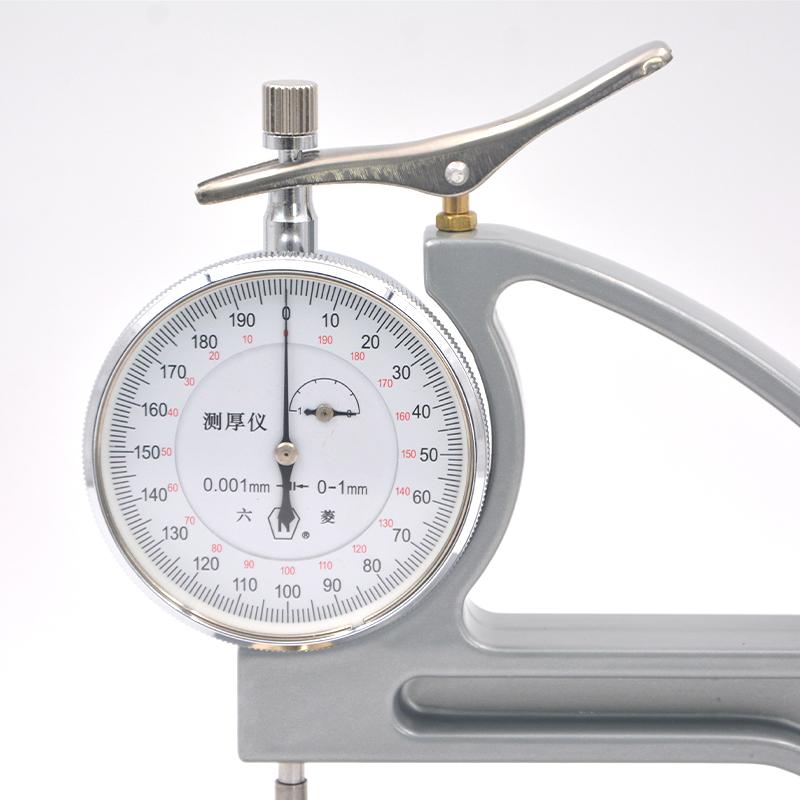

Reading display
Pointer
Graduation
0.001mm
pressure Weight
(1) The measurement surface of the upper probe is Ø 6mm plane, and when the lower probe is plane, the force exerted by the probe on the sample is 0.5N - 1.0N (51gf - 102gf); (2) The upper measurement surface is (SR15 - SR50) mm radius of curvature, when the lower probe is flat, the force exerted by the probe on the sample is 0.1N - 0.5N (10.2gf - 51gf)
Probe diameter

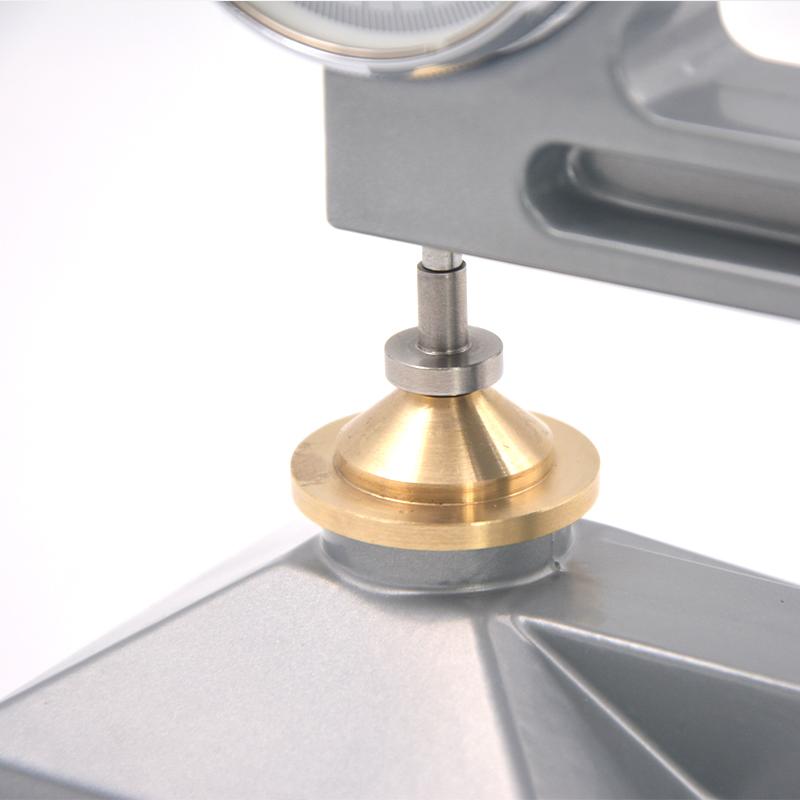

Φ5mm (flat surface)
Standards
GB/T6672-2001 MOD ISO 4593-1993
CH-1-ST
Plastic film thickness gauge
Dial; Range 0~ 1mm, accuracy ≤ 0.005mm; Probe diameter 5mm; in line with GB/T6672; not suitable for embossed films and flakes.

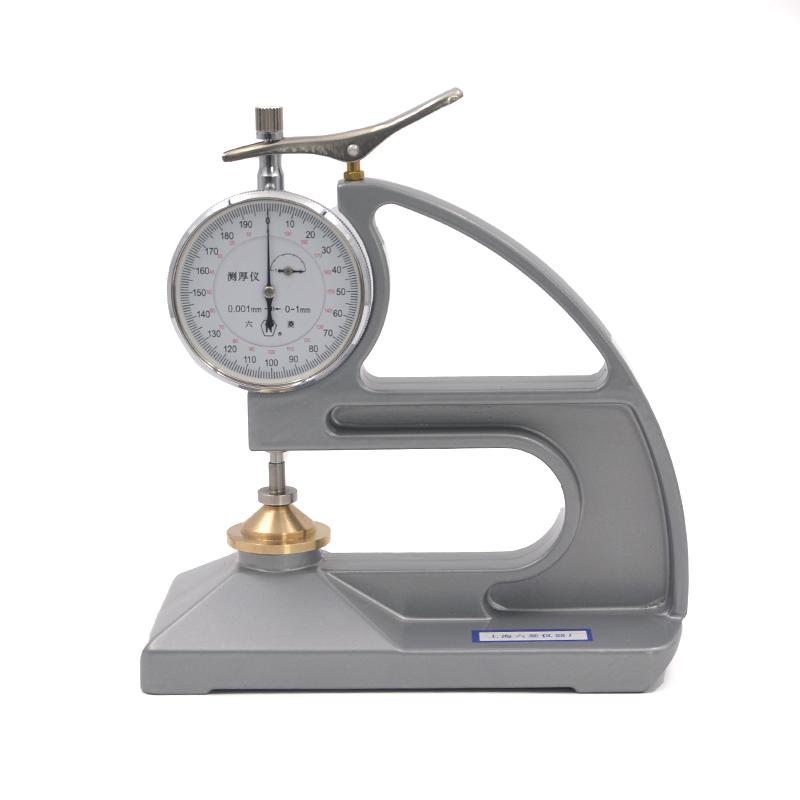

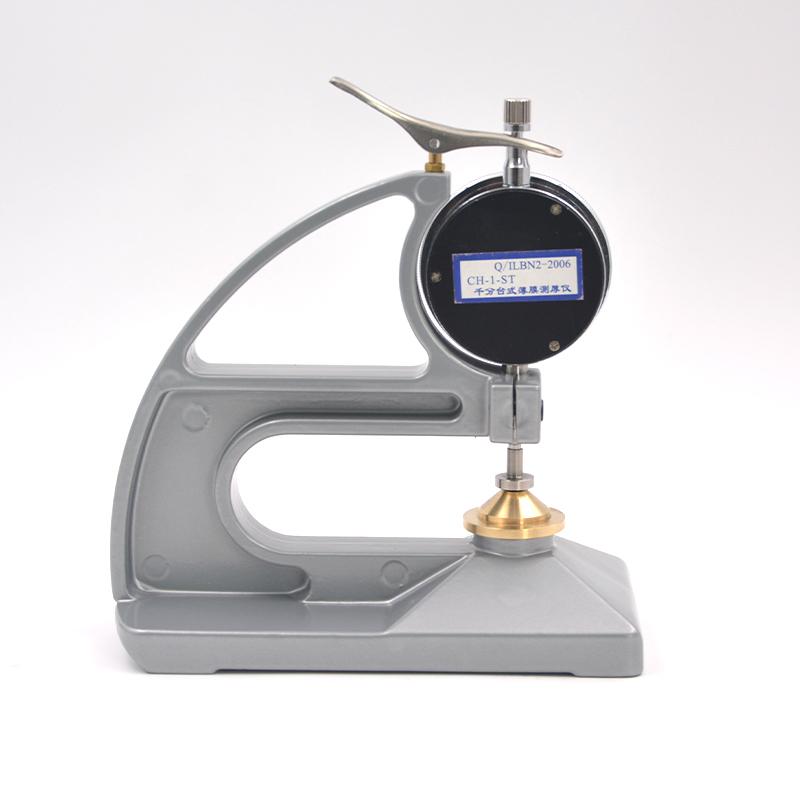

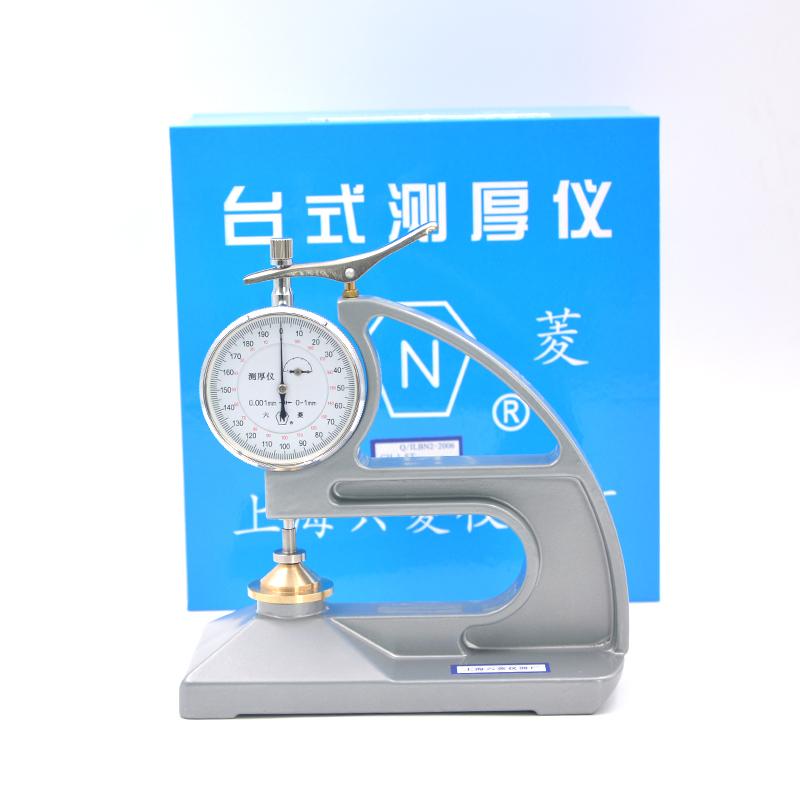

LIULING CH-1-ST Plastic film thickness gauge 0~ 1mm Picture

Introduction

Liuling CH-1-S Thickness Gauge for Plastic Thin Sheets This Thickness Gauge is an instrument for measuring the thickness of plastic films and sheets by mechanical measurement, but it is not suitable for embossed films and sheets. It refers to the implementation of the national standard GB/T6672-2001 "Determination of Thickness of Plastic Films and Sheets-Mechanical Measurement Method". ".




FAQ
QHow to calibrate
A Before testing, turn the bezel to adjust the pointer to 0, and turn the pinch a few times to return to 0 before testing.
QCan this film thickness gauge test the Film thickness of Printed Plastic films?
A Hello, the embossed film cannot be tested.
QWhat is the scale interval of the CH-1-ST thickness gauge?
A Hello, it is 0.001mm.
QWhat is the scale interval of this Coating thickness gauge?
A Hello, the scale interval is 0.001mm.
QDoes this Plastic Film Thickness Gauge meet ASTMF2251 standard?
A This plastic film thin sheet thickness gauge is suitable for ASTMF2251. Please consult customer service for detailed application definition.
QWe want to test the film thickness of the embossed film. Can this film thickness gauge be tested?
A Hello, this Liuling CH-1-ST thickness gauge is not suitable for measuring the thickness of embossed films and flakes. You can contact NBchao engineers to assist in model selection.
