LIULING CH-1-N Pressure sensitive adhesive Adhesive tape hand thickness gauge 0~ 1mm

SE
LIULING CH-1-N Pressure sensitive adhesive tape thickness gauge adopts mechanical measurement method for measurement Pressure sensitive adhesive tape thickness, CH-1-N Pressure sensitive adhesive tape thickness gauge measurement depth of 45mm, Measurement accuracy ≤ 0.007mm.
$242.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

LiuLing CH-1-N Pressure sensitive adhesive tape thickness gaugeSPEC

LiuLing CH-1-N Pressure sensitive adhesive tape thickness gaugeDetails

LiuLing CH-1-N Pressure sensitive adhesive tape thickness gaugePacking list

SKU
NB019849
Measuring range
0~1mm
Measurement Accuracy
≤0.007mm
Reading display
Pointer
Graduation
0.001mm
Pressure and Mass required
① When the measurement diameter is Ø 5mm, 48kPa (96g); ② When the measurement diameter is Ø 14mm, 48kPa (765g)
Probe diameter
Φ5mm (flat surface)
Standards
GB/T7125-1999 MOD ASTM D3652 M-1993
CH-1-N
Pressure sensitive adhesive tape thickness gauge

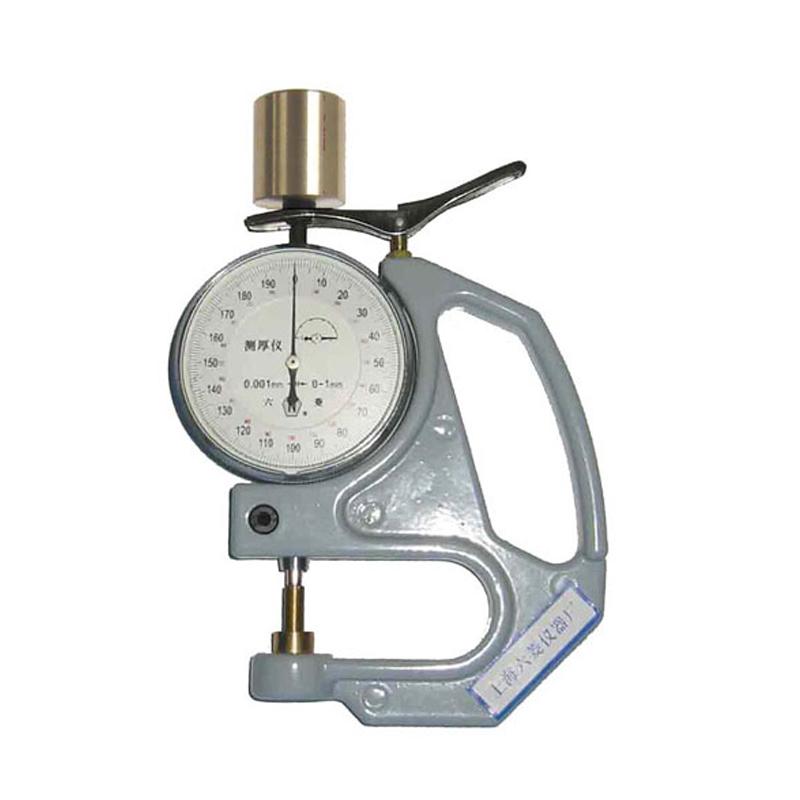

LIULING CH-1-N Pressure sensitive adhesive Adhesive tape hand thickness gauge 0~ 1mm Picture

Introduction

Liuling CH-1-N Pressure Sensitive Adhesive Tape Hand Type Thickness Gauge This Thickness Gauge uses a mechanical measurement method to measure the thickness of pressure sensitive adhesive tape under standard conditions. This Thickness Gauge refers to the national standard GB/T 7125 "Test method for thickness of pressure-sensitive adhesive tape and adhesive tape". It is equivalent to the American standard ASTM D 3652M.

The main purpose

Suitable for measuring the thickness of pressure-sensitive adhesive tape in the workshop (maximum measurement depth is 45mm)

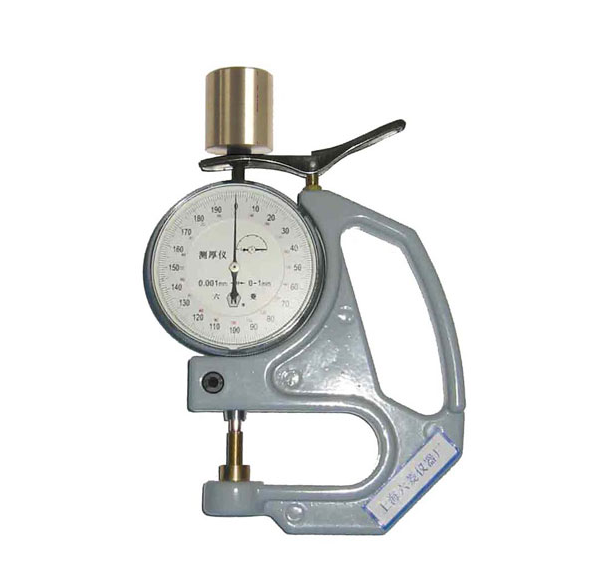

Liuling CH-1-N Pressure Sensitive Adhesive Tape Hand Thickness Gauge

FAQ
QI need to buy Thickness gauge now, measurement film, the thickness of the film is not more than 200μm, which one is better?
A The CH-1-S can meet your needs.
QCan LIULING CH-1-N Pressure sensitive adhesive tape hand thickness gauge meet the JJG (Light Industry) 50.2 standard?
A Applicable, you can consult the customer service of the mall for details about the JJG (light industry) 50.2 standard.
