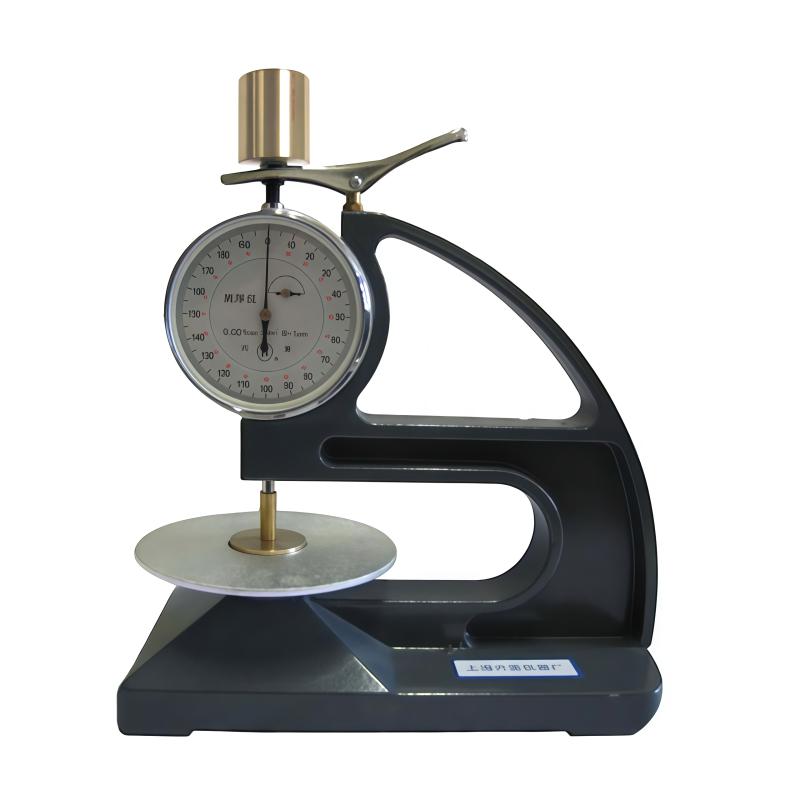

LIULING CH-1-NT Pressure sensitive adhesive tape desktop thickness gauge 0mm~ 1mm

LIULING CH-1-NT Pressure sensitive adhesive tape thickness gauge is a desktop pointer thickness gauge, Film thickness Measurement range is 0mm~ 1mm, CH-1-NT Pressure sensitive adhesive tape thickness gauge conforms to GB/T 7125 standard, measurement depth is 80mm.

$259.00/set

PromotionLoading...

Coupon

Model：

CH-1-NT

Certificate

LiuLing

Manufacturer authorization

Contact

Details SPEC Con CAT OI

LiuLing CH-1-NT Pressure sensitive adhesive tape desktop thickness gaugeSPEC

LiuLing CH-1-NT Pressure sensitive adhesive tape desktop thickness gaugeDetails

LiuLing CH-1-NT Pressure sensitive adhesive tape desktop thickness gaugePacking list

SKU: NB019850

Measurement range: 0~1mm

Measurement accuracy: ≤0.007mm

reading display: Pointer

Graduation: 0.001mm

Pressure and mass required: ① when the measurement diameter is φ 5mm, 48kPa (96g); ② when the measurement diameter is φ 14mm, 48kPa (765g)

Probe diameter: φ 5mm (flat surface)

Meet the standard: GB/T7125-1999 MOD ASTM D3652 M-1993

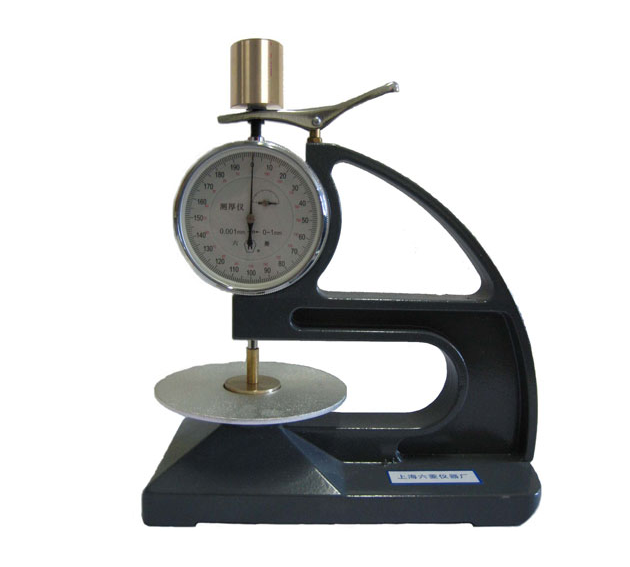

CH-1-NT

Pressure sensitive adhesive tape desktop thickness gauge

Introduction

Liuling CH-1-NT Pressure Sensitive Adhesive Tape Desktop Thickness Gauge This Thickness Gauge uses a mechanical measurement method to measure the thickness of pressure sensitive adhesive tape under standard conditions. This Thickness Gauge refers to the national standard GB/T 7125 "Test method for thickness of pressure-sensitive adhesive tape and adhesive tape". It is equivalent to the American standard ASTM D 3652M.

The main purpose

Suitable for measuring the thickness of pressure-sensitive adhesive tape in the workshop (maximum measurement depth is 80mm)

FAQ

QJJG (light industry) 50.3 involved in Pressure sensitive adhesive tape desktop thickness gauge do you have?

A The CH-1-NT Pressure sensitive adhesive tape desktop thickness gauge can be
