LIULING CH-10 Rebound Hand Thickness Gauge 0mm~ 10mm

SE
The LIULING CH-10 rebound hand thickness gauge is used for flannel thickness. The thickness range of the CH-10 rebound thickness gauge is 0mm~ 10mm, and the diameter of the stylus is 20mm.
$347.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

LiuLing CH-10 Rebound hand thickness gaugeSPEC

LiuLing CH-10 Rebound hand thickness gaugeDetails

LiuLing CH-10 Rebound hand thickness gaugePacking list

SKU
NB019851
Measuring range
0~10mm
Measurement Accuracy
≤0.02mm
Reading display
Pointer
Graduation
0.001mm
Probe diameter
Φ20mm (flat surface)
Standards
Customized according to customer requirements
CH-10
Rebound hand thickness gauge

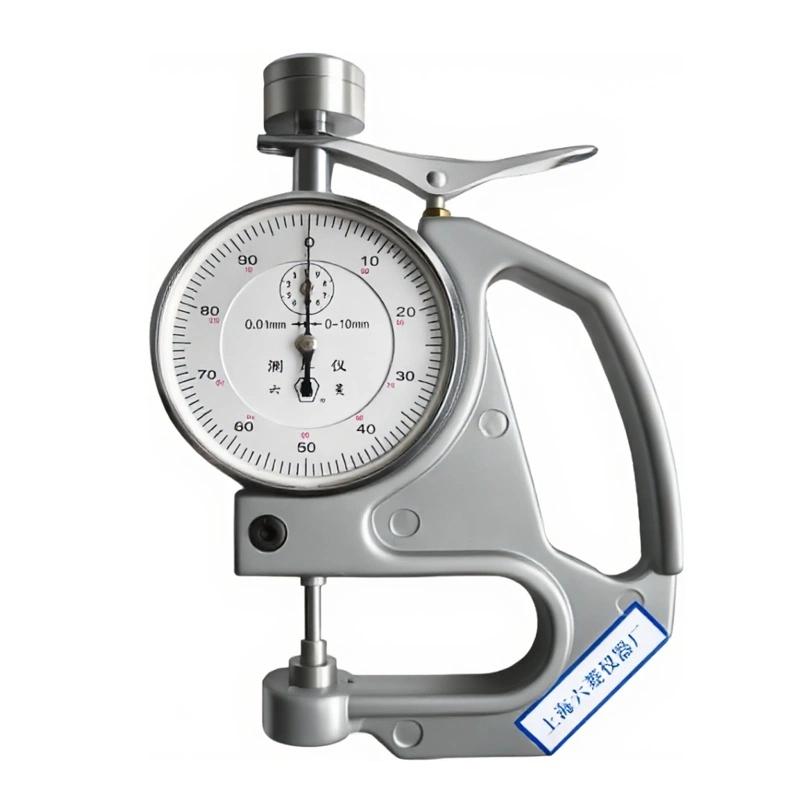

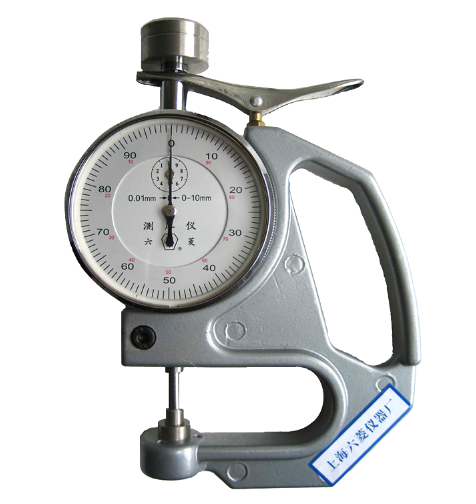

LIULING CH-10 Rebound Hand Thickness Gauge 0mm~ 10mm Picture

Introduction

This Thickness Gauge is an instrument for measuring the thickness of rubber and plastic products. It refers to the implementation of HG/T 2041-2009 "Technical Conditions for Rubber Thickness Gauge", HG/T 2198-2011 "General Requirements for Physical Test Methods of Vulcanized Rubber" and HG/T T 2382—1992 "General Technical Conditions for Rubber Testing Instruments and Equipment" and other industry standards of the Ministry of Chemical Industry. It has the characteristics of simple structure, convenient use and reliable quality. The Thickness Gauge has two specifications of hand type and table type. The hand type can be carried around, hand-held measurement, suitable for on-site measurement in the workshop. The desktop can be used in physical laboratories for sample determination.

The main purpose

Commonly used to measure the thickness of flannelette (the maximum measurement depth is 45mm)



FAQ
QCan all rebound hand thickness gauges be used for inspection in the QB/T1055 standard?
A Not necessarily, but this CH-10 rebound hand thickness gauge can be considered.
