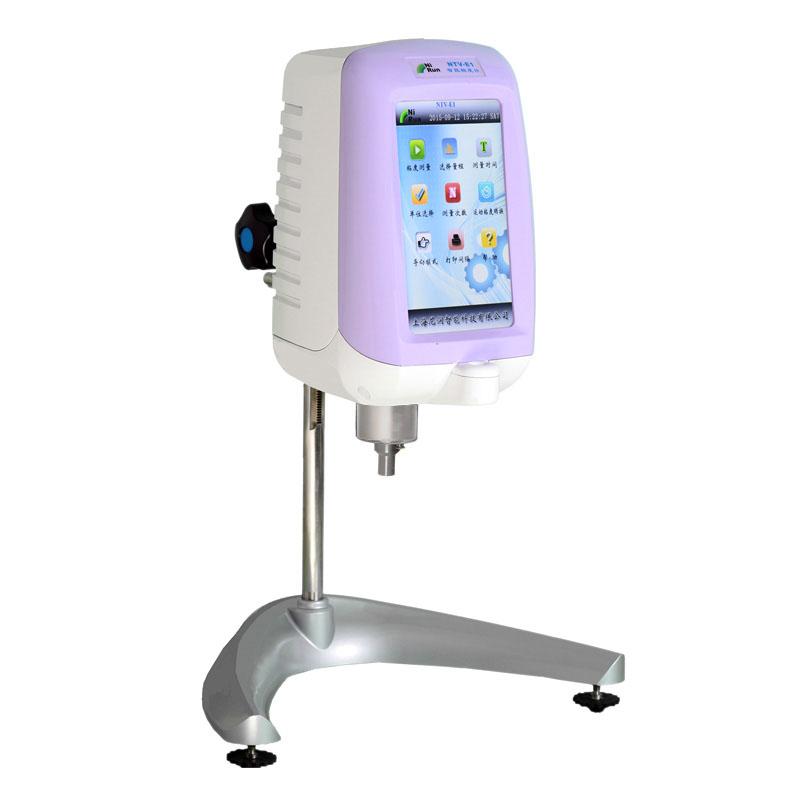

NIRUN NTV-S1 Smart Touch Digital Viscometer Measurement range 1-600,000 mPa.s

Touch type, Measurement range 1~ 600000mPa · s, Rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.1~ 60rpm, reproducibility +/- 0.2% F.S, Measurement accuracy +/- 1% F.S.

$1774.00/set

PromotionLoading...

Coupon

Model：

NTV-S1

Certificate

NiRun

Manufacturer authorization

Contact

Details SPEC Con VIDEO CAT OI

NiRun NTV-S1 Smart Touch Digital ViscometerSPEC

NiRun NTV-S1 Smart Touch Digital ViscometerDetails

NiRun NTV-S1 Smart Touch Digital ViscometerPacking list

SKU: NB019912

Display: touch type

Measuring range: 1~600000mPa·s

Rotor Specifications: 1 #, 2 #, 3 #, 4 #(0 #optional)

Rotor speed: 0.1~60rpm

Reproducibility: ±0.2%F.S

Measurement Accuracy: ±1%

Power: 100V-240V

Data Interface: USB interface

Dimensions: 410*380*410mm

Weight: 11kg

Operating language: Chinese

NTV-S1

Smart Touch Digital Viscometer

Touch type, Measurement range 1~ 600000mPa · s, Rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.1~ 60rpm, reproducibility +/- 0.2% F.S, Measurement accuracy +/- 1% F.S.

technical features

1. 7-inch wide touch screen, easy to operate, rich display information

2. Anti-static shell, metal lifting rod design

3. Built-in RTD temperature probe

4. ARM chip processor, faster data processing speed

5. Durable new small shaft design

6. Powerful human-computer interaction interface

7. Gigabit network port data communication transmission, fast and reliable data transmission

8. Support external U disk data storage; single-point, continuous, and timing three storage methods are optional

9. Password-protected temperature and viscosity correction coefficients allow users to correct temperature and viscosity correction coefficients on the premise of reliable and accurate data

10. Support infinitely variable speed measurement of viscosity, input any speed, it will directly reflect the full scale of each rotor, which is convenient for users to choose test conditions

11. Automatic conversion of dynamic viscosity and kinematic viscosity

12. Arbitrary exchange of various viscosity units

13. A variety of user-friendly operation style interface interchange

14. Comes with a powerful operation wizard to help

15. Viscosity value shows continuous change

16. There is an alarm sound prompt when the measurement range is exceeded

17. Computer full range linear calibration

18. AC power adapter 100V-240V, good anti-interference

structure diagram

NIRUN NTV-S1 Digital Viscometer Structural Diagram

NIRUN NTV-S1 Digital Viscometer Interface Diagram

plan

NIRUN NDJ-8ST touch screen viscometer Measuring range: 1-2 million mPa.s

optional accessories

SNB Data Acquisition and Graphing Software

Special viscosity measurement constant temperature Water Tank

Ultra Low Viscosity Adapter

Small Sample Adapter

standard solution

micro printer

Outer circulation glass beaker

application

Inks, latex, solvent-based adhesives, polymer solutions, petroleum, paint coatings, solvents, cosmetics, milk products, pharmaceuticals, fruit juices, etc.

Parameter comparison

model	Measuring range	Rotor speed	measurement method
NTV-S1	10,000-600,000	1-60	manual
NTV-S2	1-6 million	0.1-100
NTV-S3	4-80 million	0.1-100
NTV-AI	1-6 million, 4-80 million	0.1-200	manual, intelligent
Unit: mPa.s, rev/min
Other parameters
Number of rotors	4 types of rotors 1, 2, 3, 4 (rotor 0 is optional)
measurement accuracy	±1.0%(full scale)
repeatability	0.50%

FAQ

QHow should the Viscometer rotor be maintained?

A 1. The instrument should be used in a normal temperature environment. 2. When loading and unloading the rotor, be careful not to use too much force. 3. The connection section and thread of the screw and rotor should be kept clean. 4. Clean the rotor in time after each use, and do not clean the rotor on the instrument. 5. After installing the rotor, do not "swirl/spin" without liquid to avoid damage to the shaft tip. 6. Do not disassemble and adjust the instrument parts at will, and do not add lubricating oil by yourself. 7. Clean the instrument and button panel with a dry and soft cloth, do not clean with solvent or detergent

QFor viscosity measurement of our ceramic slurry, the accuracy requirements are relatively high. Do you have a viscosity range value here? Recommendation for this material

A Ceramic paste viscosity: ≤ 3000mpa.s (25 ℃), so you'd better need a Thermostatic bath, recommended NTV-S1 + Thermostatic bath, accuracy Repeatability +/- 0.2

QDoes this Viscometer screen support wet hand operation or multi-touch?

A There is no multi-touch, and it is difficult to operate with wet hands. We randomly include a capacitive pen, which you can use when your hands are dirty or wet.

QDoes this Viscometer need to be installed?

A Viscometer, we need to debug before shipping. We will ship it after debugging. There will be an installation video.

QWhat is the Power of the NTV-S1 Meter?

A 50W Power

QIs the dosage of this each time 300ml or how much?

A The dosage is 300-400ml.

QHelp me find a smart touch digital Viscometer that meets the ASTMD3794 standard

A This NTV-S1 smart touch digital Viscometer is fine!

QDoes this touch digital viscosity meter have a corresponding printer and a special thermostatic sink?

A Hello, you can buy a printer and a special constant temperature sink for the one you like, but you need to buy it separately.

QWhat is the difference between this NTV-S1 Viscometer and the NTV-S2?

A Hello, the main difference between NTV-S1 and NTV-S2 is that the measurement range of NTV-S1 is 1 to 600,000 mpa.s, while NTV-S2 is 1 to 6 million mpa.s. The Rotor velocity of NTV-S1 is 1 to 60 rpm, and NTV-S2 is 0.1 to 100 rpm.

QDoes Nirun Digital Viscometer NTV-S1 support stepless speed measurement viscosity?

A Hello, this NTV-S1 Viscometer supports infinitely variable speed measurement viscosity.
