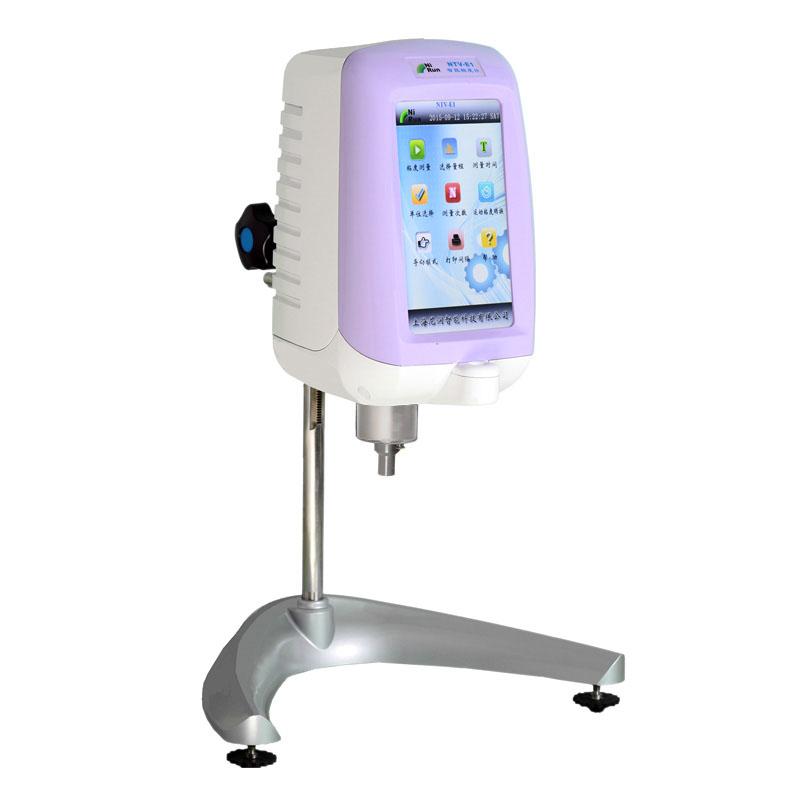

NIRUN NTV-S3 Smart Touch Digital Viscometer Measurement range 4-80 million mPa.s

Touch type, Measurement range 6~ 80000000mPa · s, Rotor specifications 1 #, 2 #, 3 #, 4 #(0 #optional), Rotor speed 0.1~ 100rpm, reproducibility +/- 0.2% F.S, Measurement accuracy +/- 1% F.S, Power supply Voltage AC100V-240V, 50Hz/60Hz, Interface USB interface, Operating language Chinese.

$2350.00/set

PromotionLoading...

Coupon

Model：

NTV-S3

Certificate

NiRun

Manufacturer authorization

Contact

Details SPEC Con VIDEO CAT OI

NiRun NTV-S3 Smart Touch Digital ViscometerSPEC

NiRun NTV-S3 Smart Touch Digital ViscometerDetails

NiRun NTV-S3 Smart Touch Digital ViscometerPacking list

SKU: NB019914

Display: touch type

Measuring range: 6~80000000mPa·s

Rotor Specifications: 1 #, 2 #, 3 #, 4 #(0 #optional)

Rotor speed: 0.1~100rpm

Reproducibility: ±0.2%F.S

Measurement Accuracy: ±1%

Power: AC100V-240V,50Hz/60Hz

Data Interface: USB interface

Operating language: Chinese

NTV-S3

Smart Touch Digital Viscometer

technical features

1. 7-inch wide touch screen, easy to operate, rich display information

2. Anti-static shell, metal lifting rod design

3. Built-in RTD temperature probe

4. ARM chip processor, faster data processing speed

5. Durable new small shaft design

6. Powerful human-computer interaction interface

7. Gigabit network port data communication transmission, fast and reliable data transmission

8. Support external U disk data storage; single-point, continuous, and timing three storage methods are optional

9. Password-protected temperature and viscosity correction coefficients allow users to correct temperature and viscosity correction coefficients on the premise of reliable and accurate data

10. Support infinitely variable speed measurement of viscosity, input any speed, it will directly reflect the full scale of each rotor, which is convenient for users to choose test conditions

11. Automatic conversion of dynamic viscosity and kinematic viscosity

12. Arbitrary exchange of various viscosity units

13. A variety of user-friendly operation style interface interchange

14. Comes with a powerful operation wizard to help

15. Viscosity value shows continuous change

16. There is an alarm sound prompt when the measurement range is exceeded

17. Computer full range linear calibration

18. AC power adapter 100V-240V, good anti-interference

structure diagram

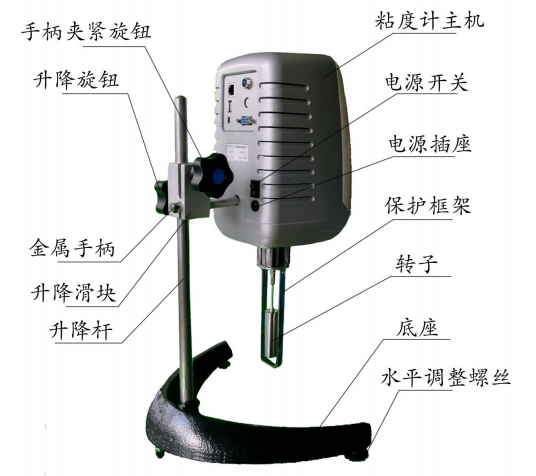

NIRUN NTV-S3 Smart Touch Digital Viscometer Details Figure 1

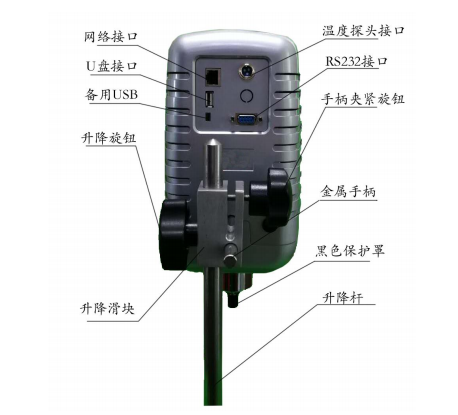

NIRUN NTV-S3 Smart Touch Digital Viscometer Details Figure 2

plan

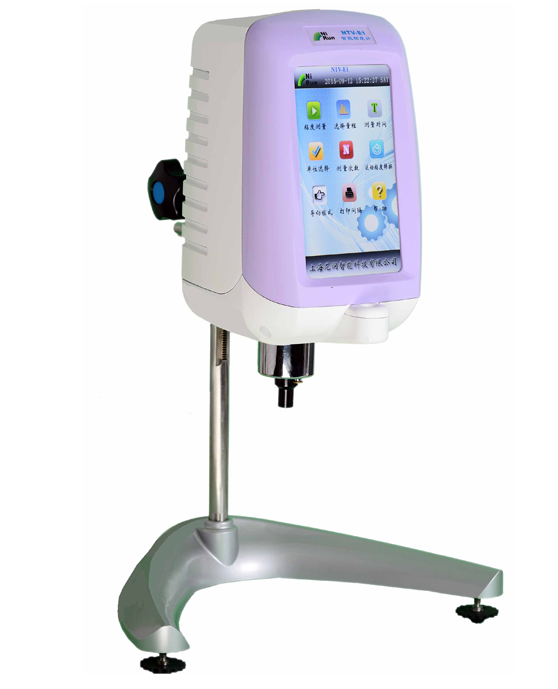

NIRUN NTV-S3 Smart Touch Digital Viscometer Details Figure 3

optional accessories

SNB Data Acquisition and Graphing Software

Special viscosity measurement constant temperature Water Tank

Ultra Low Viscosity Adapter

Small Sample Adapter

standard solution

micro printer

Outer circulation glass beaker

application

Inks, latex, solvent-based adhesives, polymer solutions, petroleum, paint coatings, solvents, cosmetics, milk products, pharmaceuticals, fruit juices, etc.

Parameter comparison

model	Measuring range	Rotor speed	measurement method
NTV-S1	10,000-600,000	1-60	manual
NTV-S2	1-6 million	0.1-100
NTV-S3	4-80 million	0.1-100
NTV-AI	1-6 million, 4-80 million	0.1-200	manual, intelligent
Unit: mPa.s, rev/min
Other parameters
Number of rotors	4 types of rotors 1, 2, 3, 4 (rotor 0 is optional)
measurement accuracy	±1.0%(full scale)
repeatability	0.50%

FAQ

QIf not used for a long time, is the bracket or rotor easy to rust?

A It is made of stainless steel. After the test, wash it and wipe it clean. It will not rust.

QHow should the Viscometer rotor be maintained?

A 1. The instrument should be used in a normal temperature environment. 2. When loading and unloading the rotor, be careful not to use too much force. 3. The connection section and thread of the screw and rotor should be kept clean. 4. Clean the rotor in time after each use, and do not clean the rotor on the instrument. 5. After installing the rotor, do not "swirl/spin" without liquid to avoid damage to the shaft tip. 6. Do not disassemble and adjust the instrument parts at will, and do not add lubricating oil by yourself. 7. Clean the instrument and button panel with a dry and soft cloth, do not clean with solvent or detergent

QDoes this Viscometer screen support wet hand operation or multi-touch?

A There is no multi-touch, and it is difficult to operate with wet hands. We randomly include a capacitive pen, which you can use when your hands are dirty or wet.

QIs the Repeatability number of this device? The ndj series I am using now, the numbers are all floating. I hope your equipment can help me solve it.

A Our equipment can achieve +/- 0.2, sexual repeability rate and 1% accuracy. If your sample swirl/spin with chopsticks does not have a cavity problem, it will be no problem and will not float.

QBROOKFIELD is too expensive. Do you have any recommendations for the standard BROOKFIELD? Usually the test is within 100. The recommended one is better. I will let our use department take a look.

A Recommended NTV-S3 Smart Touch Digital Viscometer + Ultra Low Viscosity Adapter Ultra Low Viscosity Adapter + 50 series calibrating liquid can meet the needs

QDoes this Digital Viscometer come with a Measurement Certificate?

A There is no standard, but it can be measured.

QWhat Viscometer is used to measure the viscosity of solder paste?

A NTV-S3 for solder paste measurement, relative viscosity measurement

QMeasuring viscosity and stirring integrated, intelligent, no need for heating, viscosity 10,000 below can be measured polyurethane hot-melt adhesive

A Recommended model: NTV-S3

QTo measure the relative viscosity of the solder paste, which one should I choose?

A NTV-S3 This digital Viscometer can.

QDoes the Smart Touch Digital Viscometer meet the specifications of GB/T22427.7?

A Model NTV-S3 Smart Touch Digital Viscometer Compliant
