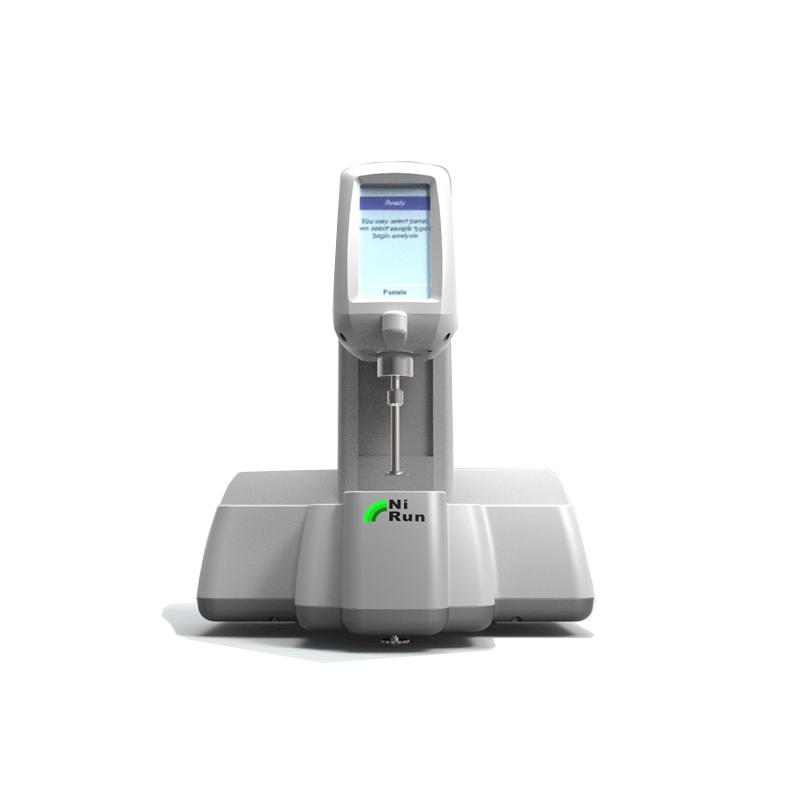

NIRUN CAP-2 + PRO cone-plate viscometer Measurement range: 20cP-1500000cP

CAP-2+PRO

cone-plate viscometer

Viscosity range 20cP~ 1500000cP, Rotor speed 5~ 1000rpm, reproducibility 0.5% (FS), Measurement accuracy +/- 2%, Power supply Voltage 110V/220V, Operating language Chinese, Input Frequency 50Hz/60Hz, Rotation speed Control mode stepless speed change.

Technical Indicators

1. A conical rotor is optionally available for the user.

2. The CAP-1 is a single-speed measurement with user-specifier speed or the CAP-2 can be continuously variable from 5 to 1000 rpm.

3. Technical advantages:

4. Easy-to-use cone plate positioning system.

5. Samples are easy to clean.

6. Single-speed or continuously variable speed is optional.

7. Accurately control the sample temperature.

8. Very small amount of sample.

9. High shear rate.

10. The DV software automatically obtains the rheological curves quickly and easily.

11.

12. Optional

13. Micro printer, special viscosity constant temperature Water Tank, standard oil, DV data acquisition and program-controlled analysis software.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
