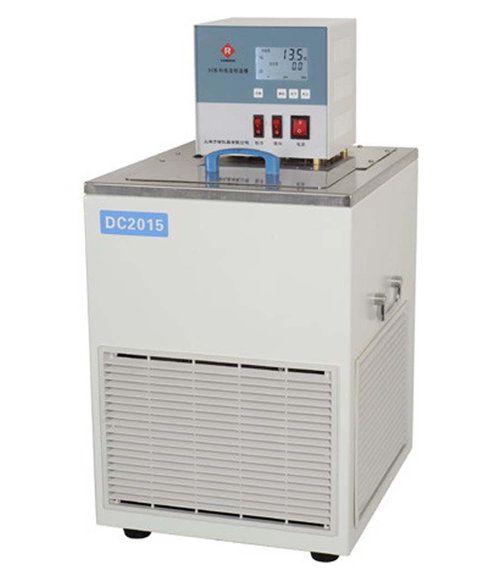

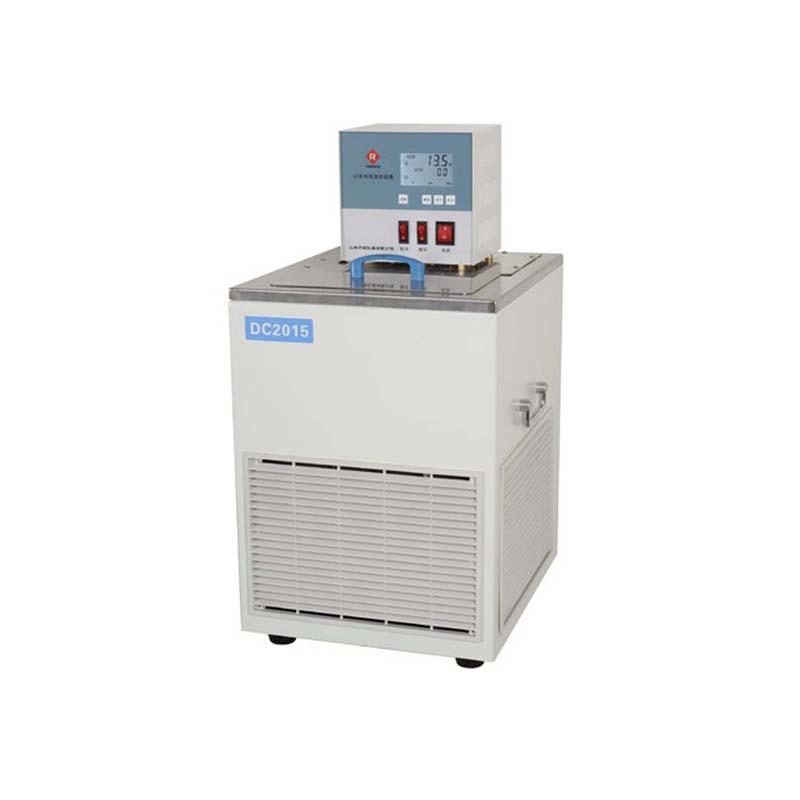

FANGRUI instrument PHDC-3020 Thermostatic Bath volume 15L Temperature range: -30~100 ℃

PHDC-3020

Thermostatic Bath

Introduction

PHDC series low-temperature constant temperature bath (low-temperature constant temperature bath) adopts new high-performance single-chip microcomputer control, self-tuning PID adjustment, imported temperature sensor temperature measurement, high temperature control accuracy and small fluctuation; it adopts high-quality refrigeration compressor (some models are fully Imported brand compressor or compressor unit), with high refrigeration efficiency, fast cooling, and low noise; it adopts a good fully sealed mixing motor, the lubricating grease is not easy to volatilize, and it has low noise and long life. The DC series uses a large-screen backlit LCD display, with all parameters clear and beautiful, and the HDC/HDCP series uses two sets of luminous digital tube displays to display the set temperature and actual temperature separately. The thermostatic bath has precise temperature control, complete functions, stability and reliability, and is easy and safe to operate.

main feature

1. Adopt high-performance single-chip microcomputer control, PID adjustment, and self-tuning control technology, with high temperature control accuracy and short stabilization time;

2. It has a couple protection function to prevent the instrument from running out of control;

3. It has a liquid level protection device, which can effectively prevent various failures caused by empty heating of the heating tube;

4. The upper limit over-temperature alarm function can be set by yourself. If it exceeds the range, it will alarm immediately;

5. The instrument works stably and reliably, and is very convenient to operate;

6. The inner tank, countertop and all parts immersed in liquid are made of high-quality stainless steel, which is corrosion-resistant and easy to clean;

7. The DC series is an ordinary low-temperature constant temperature bath with a temperature control accuracy of 0.1℃ and a fluctuation of 0.05℃. The temperature range is from -80℃ to 100℃ and the volume is 6 liters, 15 liters, 20 liters, and 30 liters. Using large-screen backlit LCD, all parameters are clear and beautiful;

8. The HDC series is a high-precision low-temperature constant temperature bath with a temperature control accuracy of 0.01℃, a fluctuation of 0.01℃, a temperature range from -19.99℃ to 99.99℃, and a volume of 6 liters, 15 liters, 20 liters, and 30 liters;

9. The PHDC series is a high-performance and high-precision low-temperature constant temperature bath with a temperature control accuracy of 0.01℃ and a fluctuation of 0.01℃. The temperature range is from -80℃ to 100℃ and the volume is 6 liters, 15 liters, 20 liters, and 30 liters. Adopting professional AI artificial intelligence PID adjustment method, it has programmable function of temperature/time (up to 180 program segments); it has the function of communicating with external computers and reverse control;

10. According to different structures, low-temperature constant temperature baths are divided into ordinary desktop type (DC/HDC/PHDC series, 6 liters, 15 liters and the temperature is higher than -40℃), floor-standing type (the temperature in the DC/HDC/PHDC series is lower than - 40℃, volume 20 liters, 30 liters), small vertical type (DCL/HDCL series) and horizontal type (DCW/HDCW series)

Each series of low-temperature constant temperature baths can perform constant temperature tests directly in the Water Bath, or use the external circulation function to guide the controlled constant temperature liquid in the bath to other equipment through hoses connected to other equipment.

Application

It is widely used in bioengineering, food, chemical industry, metallurgy, chemical analysis, petroleum and other fields to provide users with a high-precision, controlled, uniform temperature constant field source. It is an ideal choice for research institutes, colleges and universities, factory laboratories, A thermostatic device that satisfies the quality inspection department.

Packing list：host x1, cover x1, silicone tube x1, power cord x1, manual, certificate of conformity, warranty card x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
