Brand：Boxun
Model：BSD-YX2400

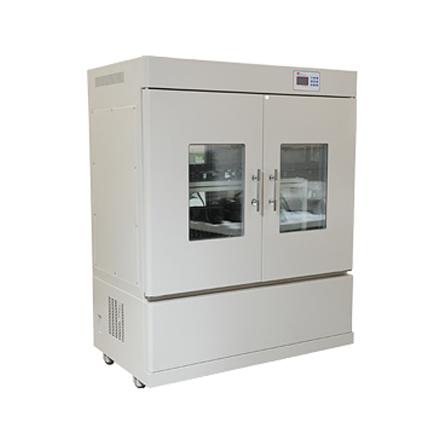

Name：Vertical double-decked intelligent precision Shaker
Specifications
| Oscillation mode | cyclotron |
| Control mode | PID microcomputer |
| Display mode | LCD large screen backlit LCD screen |
| Convection mode | forced convection |
| Temperature range | 4~60℃ |
| Temperature Resolution | ±0.1℃ |
| Temperature Fluctuation | ±0.2℃ |
| Temperature Uniformity | ±1℃ |
| Oscillation Frequency | 30~300rpm |
| Cyclotron/Reciprocating Frequency Accuracy | ±1rpm |
| Oscillation Stroke | Φ26mm |
| Timer Range | 0~999h |
| Number of rocking boards | 2 pieces |
| Power supply Voltage | AC220V 50/60Hz |
| Dimension | 1200*740*1500mm |
| Liner size | 860*580*800mm |
| Pallet size | 755*478mm |
| Standard configuration | 250ml*52 |
| Maximum configuration | 50ml*104 or 100ml*104 or 250ml*66 or 500ml*50 or 750ml*36 or 1000ml*26 |
| Net Weight | 280kg |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/20072/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
