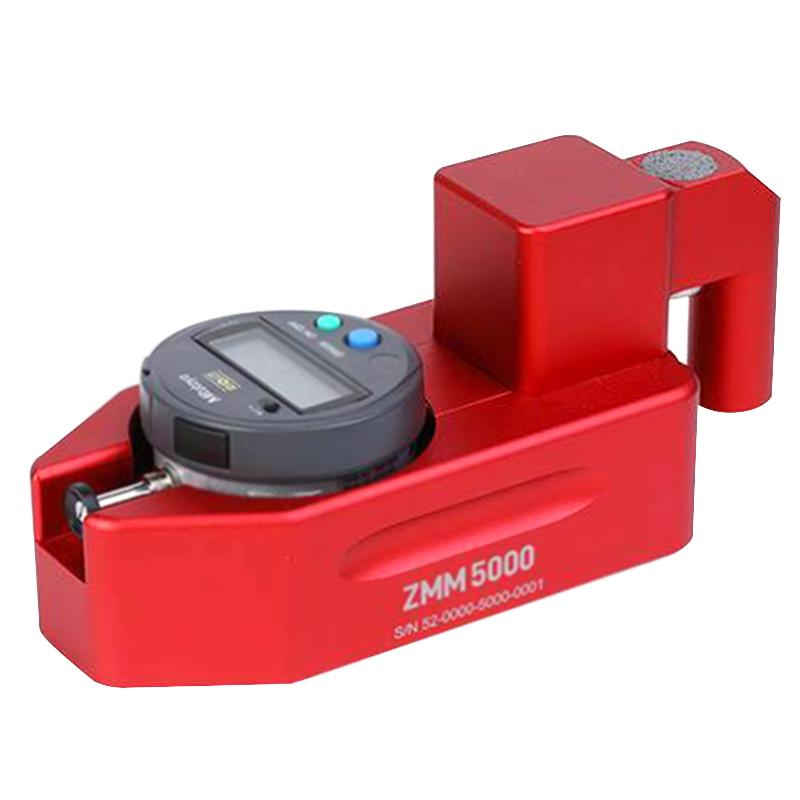

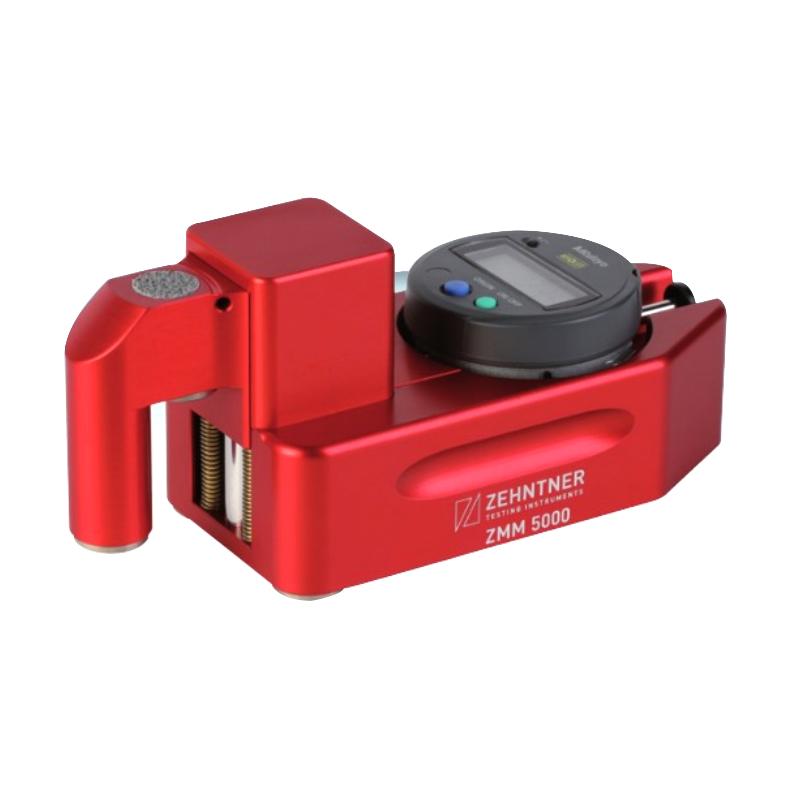

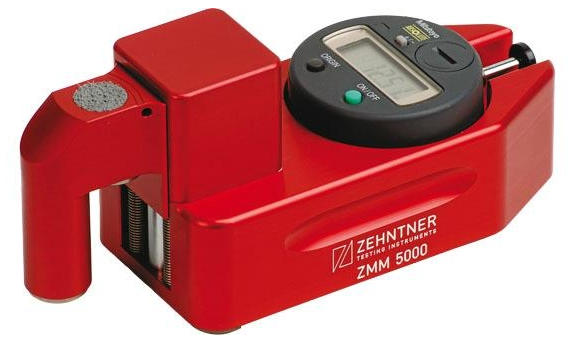

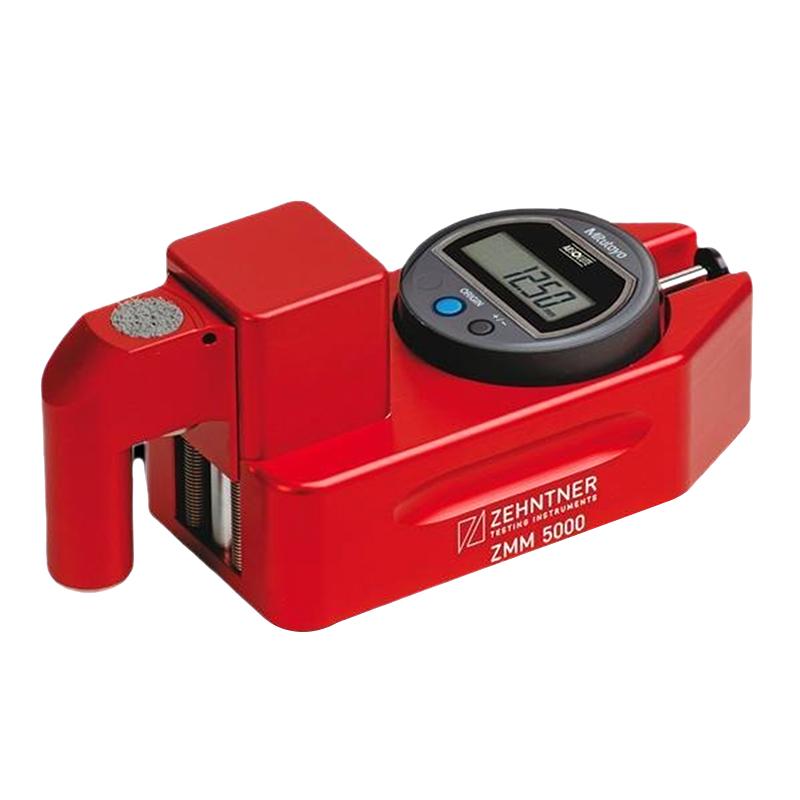

Zehntner ZMM 5000 digital pavement marking line Thickness Gauge

ZMM5000

Digital pavement marking line Thickness Gauge

Dedicated to the measurement of road signs dry-film thickness, digitalization display, range -12.5mm~ 12.5mm, in line with the standards EN13197, EN13212.

Introduction

The ZMM 5000 Digital Pavement Marking Thickness Gauge (Road Marking Thickness Gauge) is suitable for the measurement of the thickness of various polymer pavement markings, and is suitable for field measurement and laboratory sampling measurement. High accuracy. LCD digital display with a resolution of 10μm. It is suitable for road maintenance units, road sign paint manufacturers, construction contractors, quality control and acceptance units, etc. The anodized aluminum alloy body is ergonomically designed and easy to operate.

In recent years, the thickness of the dry and wet coatings has become increasingly important due to cost and quality, among other reasons. The ZMM 5000 Digital Pavement Marking Thickness Gauge is specially designed to measure the thickness of the road marking dry film. In contrast to the conventional ZMP 5010 road marker wedge gauge, the ZMM 5000 digital pavement marking Thickness Gauge directly displays the measured values.

Features

* A high-precision gauge that can quickly measure the coating thickness of road markers and similar coatings.

* It is suitable for measuring the thickness of various polymer pavement markings.

* Applies to all types of road signs, with or without reflective feet.

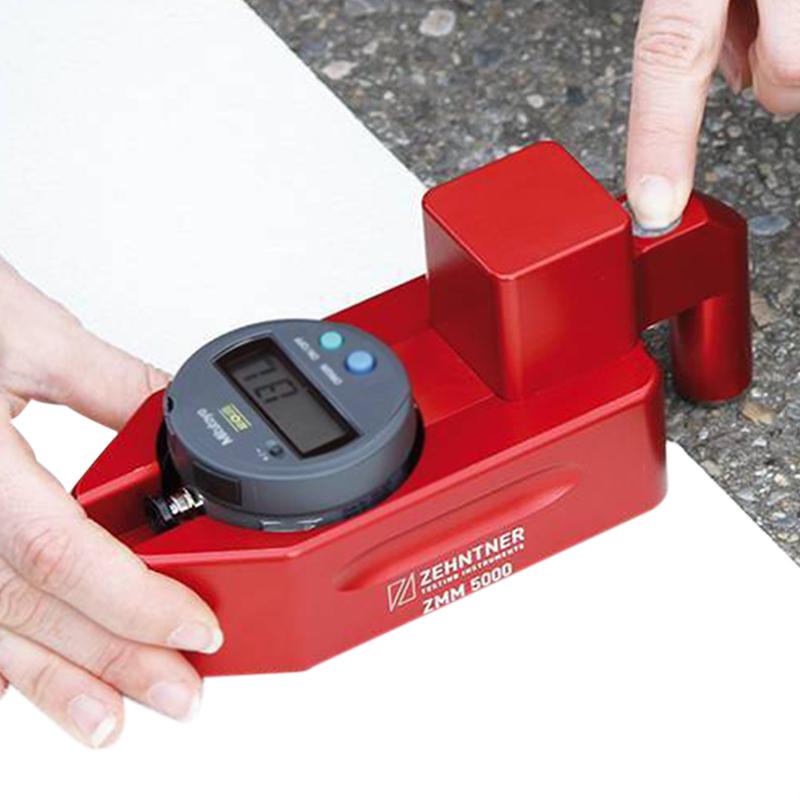

* It can be measured directly on the road site or in the laboratory.

* Digital display, clear and easy to read.

* Applicable to national transportation departments, highway laboratories, road sign manufacturers.

* Additional application instruments are available as an option.

* High-precision measurement results are displayed in numbers per minute.

* Measurements relative to the foundation or the road sign itself (up or down measurements).

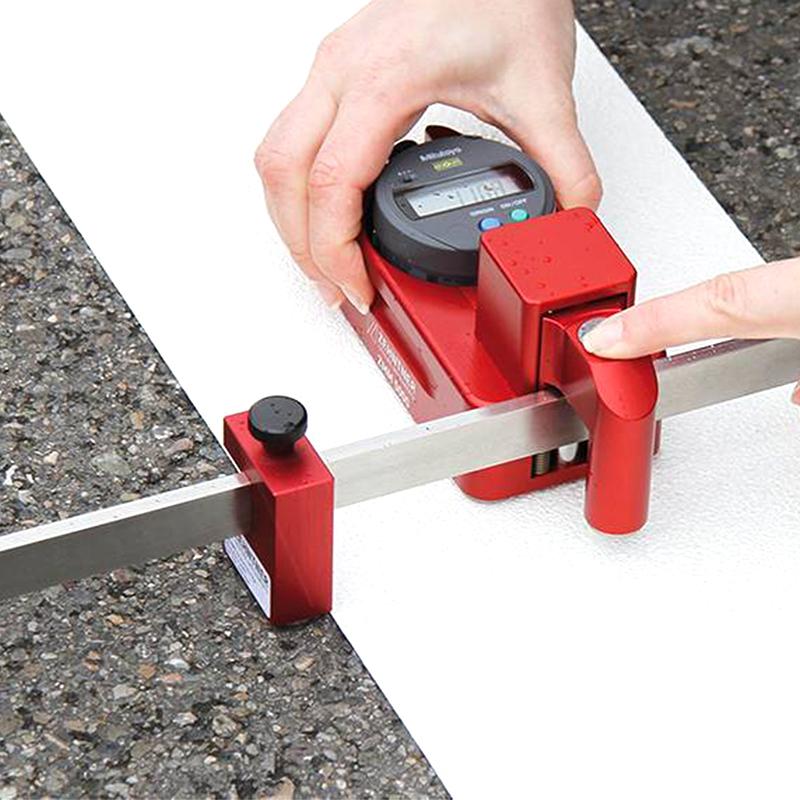

* Used for bridge measurement of road signs in the intersection area spanning the entire width, and also for the measurement of wide road signs.

Standards:EN13197,EN13212

Options

1. Measuring bridge

2. Printer

3. Unit conversion digital display (can be converted between mm and inch)

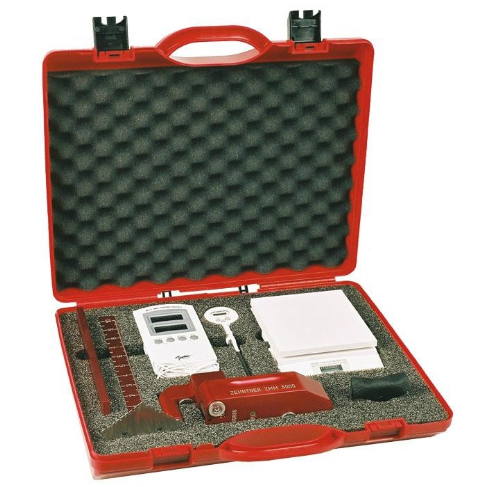

4. ZMK pavement marking quality control kit can be selected, including: Thickness Gauge, thermometer, hygrometer, electronic balance, magnifying glass, carrying case, etc

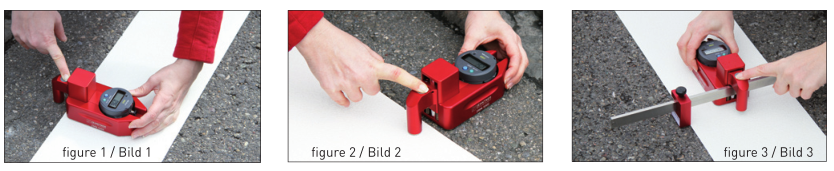

Step-by-step diagram

Packing list：Digital marking thickness gauge x1, manufacturing certificate x1, operation manual x1, portable case x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
