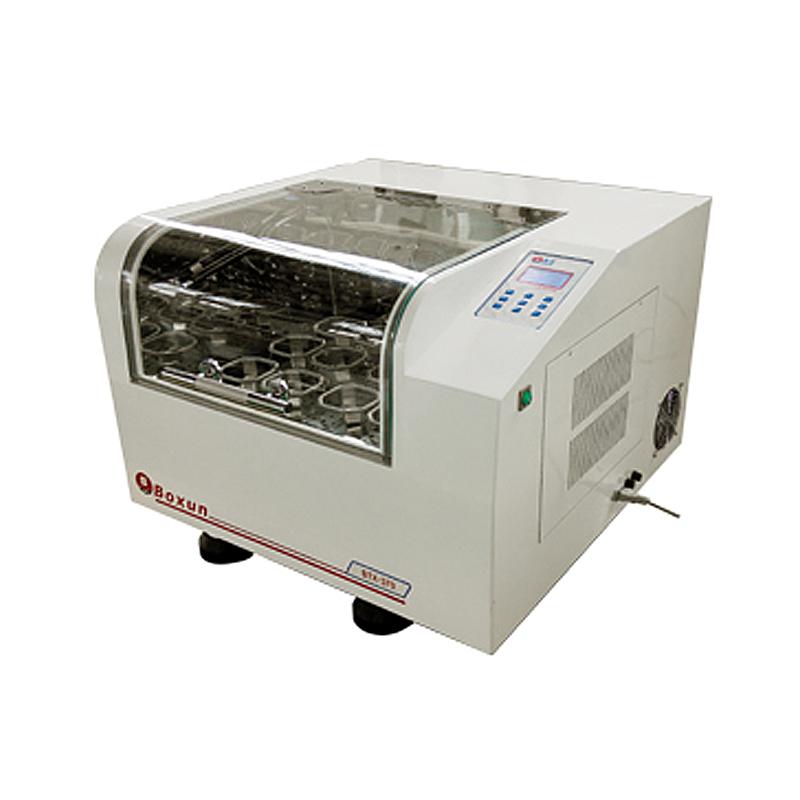

BOXUN BSD-TX270 Rotary thermostatic with refrigeration Desktop Shaker

Model:

Boxun BSD-TX270 Desktop ShakerSPEC

Boxun BSD-TX270 Desktop ShakerDetails

Boxun BSD-TX270 Desktop ShakerPacking list

SKU
NB020097
Control mode
PID microcomputer
Display mode
LCD liquid crystal display
Drive mode
Single shaft drive
Temperature range
5~60℃
Temperature Accuracy
±0.1℃
Temperature Uniformity
±1℃
Oscillation mode
Swirling/spinning
Drive motor
DC brushless motor
Oscillation Frequency
30~250rpm
Oscillation Stroke
φ 0-40mm stepless adjustable
Timer Range
0~999h
Volume
70L
Dimension
750*750*510mm
Pallet size
440*390mm
Number of rocking boards
1 piece
Standard configuration
250ml*10
Maximum configuration
50ml*31 or 100ml*31 or 250ml*15 or 500ml*10 or 750ml*8 or 1000ml*6
Input Power
800W
Power supply Voltage
AC220V 50/60Hz
BSD-TX270
Desktop Shaker

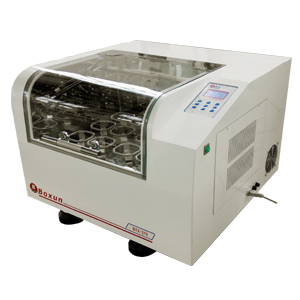

BOXUN BSD-TX270 Rotary thermostatic with refrigeration Desktop Shaker Picture

features

Single-axis stepless adjustable oscillation technology can meet the experimental requirements of different amounts of dissolved oxygen

Combined with the function of stepless adjustment of the oscillation amplitude, the oscillation frequency can be extended to a wide range of 30-600rpm

The convenient design makes it easy to adjust the oscillation amplitude

Intelligent sound and light alarm environment scanning microprocessor controller

The LCD large backlit LCD display displays the set parameters and measured parameters

The operating parameters are encrypted and locked to avoid human error

Run the parameter memory function to avoid tedious operations

Brushless DC motor design, wide speed regulation, constant torque, constant speed, no carbon brush, maintenance-free, no impact on power grid fluctuations

Over-temperature sound and light alarm function, temperature out of control, abnormal over-temperature instruments automatically cut off their respective power supply

With the function of power-off recovery, the equipment can automatically resume operation according to the original program after the external power supply suddenly loses power and the power comes again

The line that controls the acceleration ensures that the shaker starts slowly and accelerates smoothly to ensure the safety of the experimental sample
