BJ-1CD

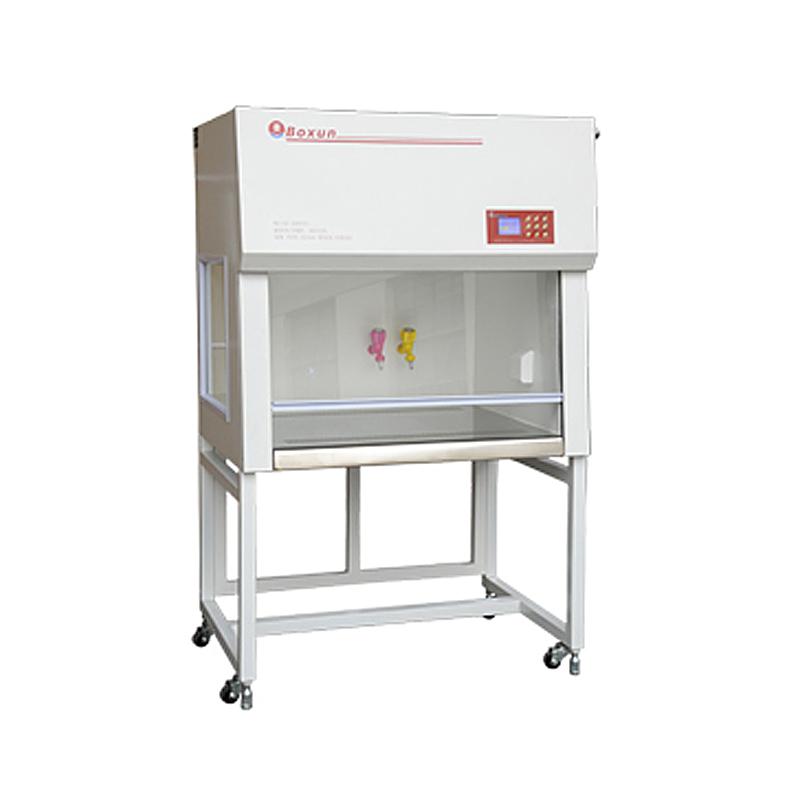

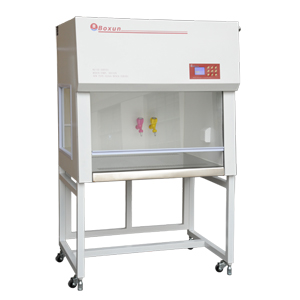

Boxun BJ-1CD Upgraded vertical Laminar Flow CabinetSPEC
Boxun BJ-1CD Upgraded vertical Laminar Flow CabinetDetails
Boxun BJ-1CD Upgraded vertical Laminar Flow CabinetPacking list
- SKU
- NB020124
- Display mode
- LCD
- airflow
- vertical
- working surface
- 1
- cleanliness grade
- Class 100 (≥ 0.5µm filtrate efficiency of 99.99%)
- average wind speed
- 0.3~0.6m/s
- noise
- ≤67dB(A)
- Vibration Half-Amplitude
- ≤5µm
- Illumrination degree
- ≥300Lx
- Workspace size
- 830*700*495mm
- Dimension
- 990*744*1680mm
- Filter size
- 800*604*50mm*①
- Fluorescent lamp
- 30W*①
- Weight
- 115Kg
- power consumption
- 0.2Kw
- Power supply Voltage
- AC220±10V 50/60Hz
- UV Lamp
- 20W*①
BJ-1CD purification workbench is a kind of purification equipment that can control the high-cleanliness air in the operation area through intelligent setting, the equipment adopts one-way air flow, the indoor air enters the net pressure box through the pre-filter, and then passes through the effective filter, and finally forms a highly clean one-way air flow in the operation area.
Product features
HEPA damage and pre-failure alarm function
Differential pressure display function
Constant wind speed function
Sterilization, lighting interlock function
Multi-parameter quantitative display function
Cumulative working time, clock, filter life bar display function
Features
The shell is made of good cold-rolled steel plate, and the operating table is made of SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean;
Effective centrifugal fan is adopted, with stable speed and low noise;
The LCD large-screen LCD screen is used to quantitatively display the working parameters such as wind speed, cumulative working time, differential pressure, clock, HEAP operation status, etc.;
It is equipped with an effective HEPA air filter, and a pre-filter is a medium-efficiency filtration system, which can effectively extend the service life of the effective filter;
In case of HEPA failure or damage, it can realize sound and light visual alarm prompts;
The wind speed can be set in the range of 0.3-0.6m/s, set to six segments and can be displayed in real numbers;
The moving door adopts a counterweight sliding door, which can be positioned arbitrarily within the specified range;
Lighting lamp and germicidal lamp interlocking device to ensure safe use;
Equipped with splash-proof built-in power socket and air source and water source interface;
The front part is tilted at an angle of 5 ° to meet the principle of ergonomics and make the operation more comfortable;
The frame is equipped with movable casters and positioning balance columns, which are flexible to move and easy to fix.
