China

BOXUN YXQ-100SII Vertical Pressure Steam Autoclave 100 Liters, Three Baskets

100 liters/three baskets, "hand wheel type quick door, microcomputer intelligent control, can be timed 0-120 minutes, exhaust under external circulation, up to 135 ℃/0.22MPa
Model:

Boxun YXQ-100SII Vertical Pressure Steam AutoclaveSPEC

Boxun YXQ-100SII Vertical Pressure Steam AutoclaveDetails

Boxun YXQ-100SII Vertical Pressure Steam AutoclavePacking list

SKU
NB020138
Shell material
SUS304
Cylinder material
SUS304
Basket material
SUS304
Volume
100L
Power
3.5Kw
Power supply Voltage
220V±10% 50Hz±2%
Operating temperature
135℃
Operating temperature
138℃
Working pressure
0.22MPa
Working pressure
0.25MPa
Timer Range
0~120min
Sterilizing chamber size
Φ400*830mm
Basket size
Ф360×240mm
number of baskets carried
Three.
Dimension
485*485*1290mm
YXQ-100SII
Vertical Pressure Steam Autoclave
100 liters/three baskets, "hand wheel type quick door, microcomputer intelligent control, can be timed 0-120 minutes, exhaust under external circulation, up to 135 ℃/0.22MPa

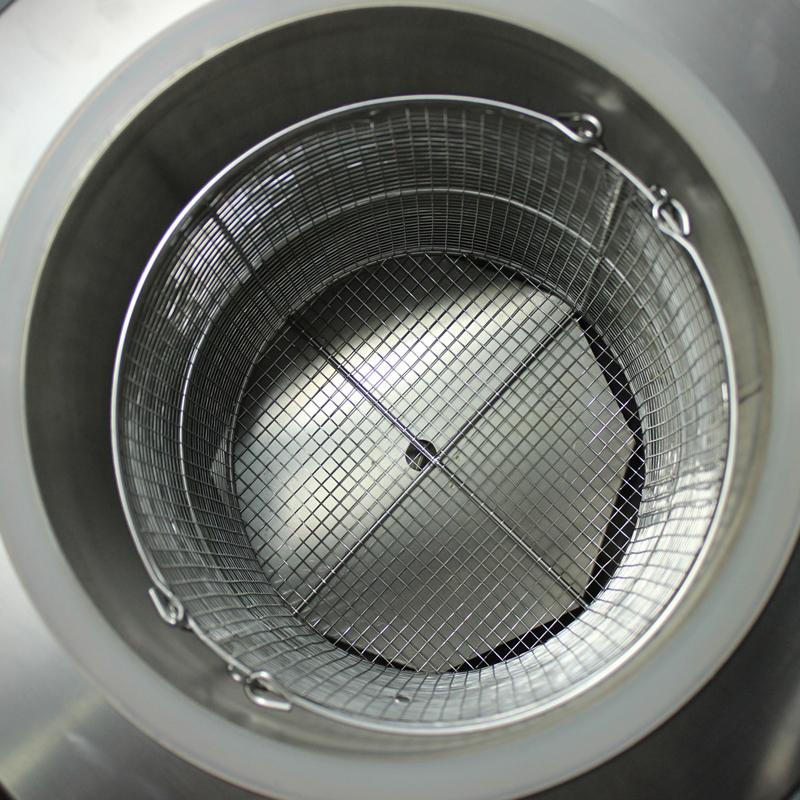

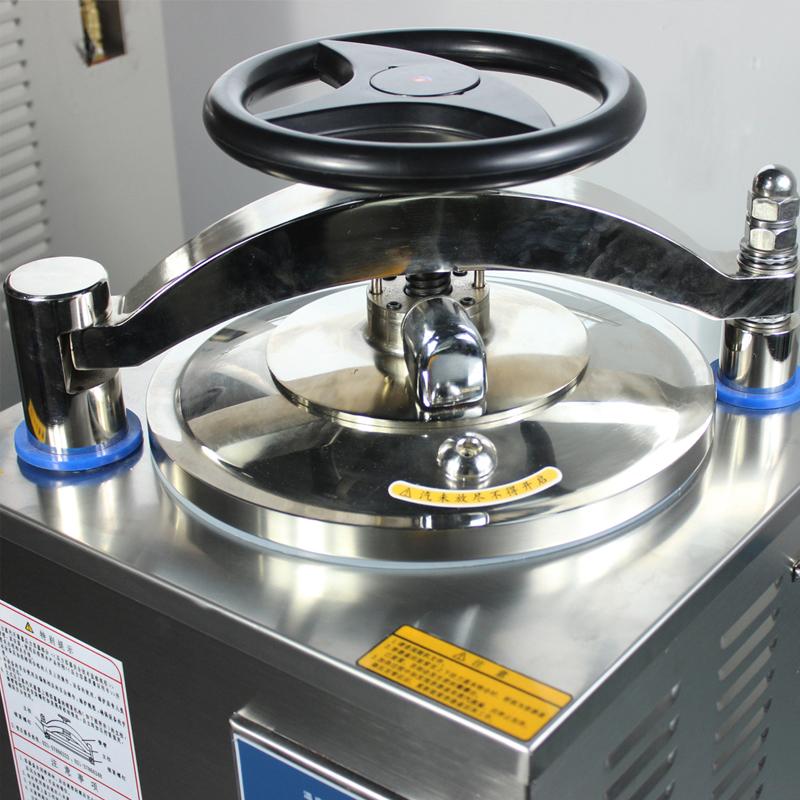

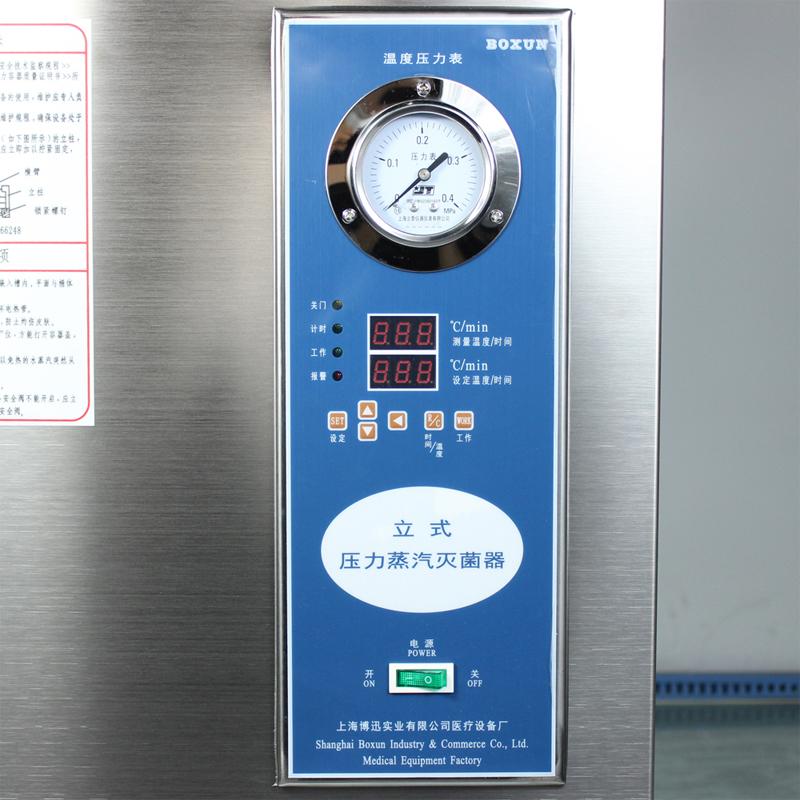

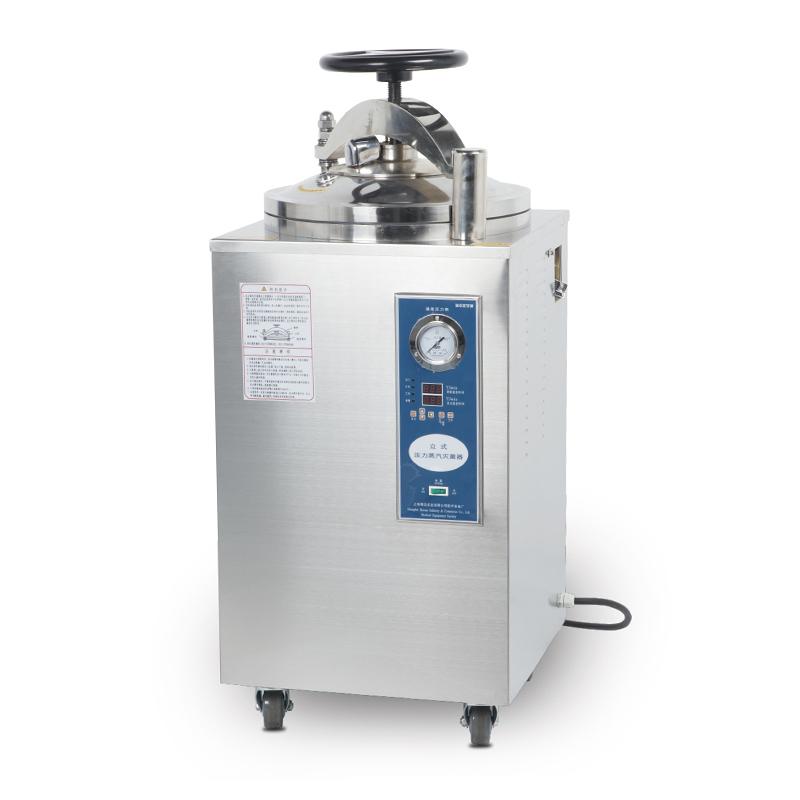

BOXUN YXQ-100SII Vertical Pressure Steam Autoclave 100 Liters, Three Baskets Picture

Scope of application

Sterilizer series products are the use of pressure saturated steam for rapid and reliable disinfection and sterilization of products, suitable for scientific research, agriculture and other units, dressings, glassware, solution culture media, etc.

Features

Self-controlled

Handwheel type quick-opening safety interlocking device structure

The shell, cylinder and basket are all made of SUS304 material, which is acid-resistant, alkali-resistant and corrosion-resistant

Microcomputer intelligent control

Pressure safety interlock device, over-temperature protection device

Self-rising seals for automatic cold air discharge

Low water level alarm, automatic control of water failure

Overpressure self-discharge

The buzzer reminds at the end of sterilization

Sample test holes are provided as standard

Optional: Printer

Series selection

ModelYXQ-30SIIYXQ-50SIIYXQ-75SIIYXQ-100SII
volume29L50L75L100L
Sterilization power2.3KW3.2KW3.5KW3.5KW
power supply220V±10%    50Hz±2%
Extreme operating/design temperature135℃/139℃
Extreme Working/Design Pressure0.22MPa/0.25MPa
Sterilization timing (minutes)4-120
Inner cavity size(mm)Ф300x485Ф400x630Ф400x720Ф400x830
Bassinet size (mm)Ф280x340x1pcsФ360x230x2pcsФ360x270x2pcsФ360x230x3pcs
Dimensions(mm)445x445x900485x485x1120485x485x1190485x485x1290


FAQ
Q YXQ-100SII Vertical Pressure Steam Autoclave with Printer?
A The printer is currently unavailable.
Standard
