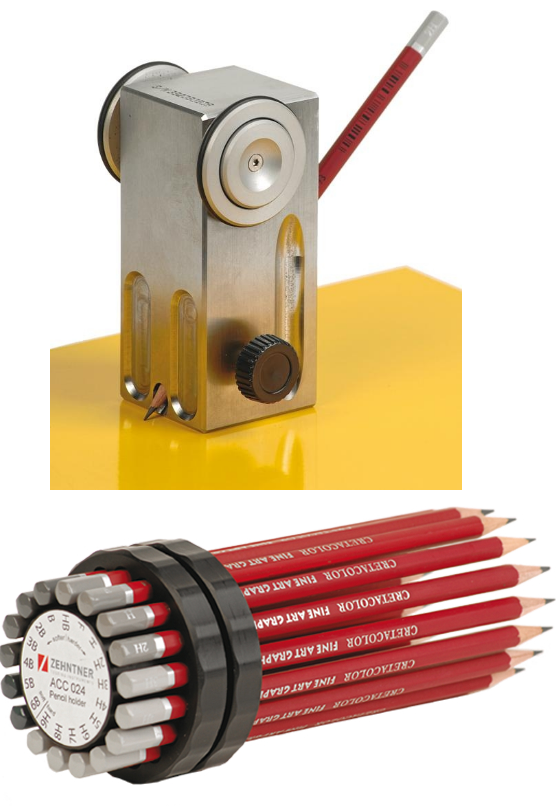

Zehntner ZSH2090 Spreader Hardness Gauge

ZSH2090

Spreader Hardness Gauge

Product name: Pencil type surface coating Hardness Tester

Model Number: ZSH2090

Brand: Zehntner, Switzerland

Switzerland Jayne zehntner ZSH2090 pencil surface coating Hardness Tester product introduction

ZSH2090 pencil surface coating Hardness Tester is produced according to the WolffWilborn specification, which measures the scratch resistance of the surface hardness of coatings, and is used for experimental analysis or production quality control, regardless of paints, furniture, automobiles, ...... Suitable for single or multi-layer paints, testing is quick and easy!

Imported from Switzerland (ZEHNTNER brand)

Switzerland Jayne zehntner ZSH2090 pencil type surface coating Hardness Tester meets the standard:

ASTMD3363,ECCAT4,MILC27227,NEN5350,SIS184187,SNV37113

Switzerland Jayne zehntner ZSH2090 pencil type surface coating Hardness Tester product features

JIS standard pencils are made by "Mitsubishi Japan" and are engraved with the words "Nippon Paint Inspection and Inspection Finish" on the barrel

Optional: Special flat-tip pencil sharpener (not an ordinary point-tipped pencil sharpener!) )

zehntner ZSH2090 Pencil Surface Coating Hardness Tester Product Specifications:

Body Material: Steel

Nib load: 45° between pencil and measuring surface, nib load: 7.5Newton

Size: 102×92×55mm(L×W×H)

Weight: 2.2kg

Switzerland Jayne zehntner ZSH2090 pencil surface coating Hardness Tester standard configuration:

1. 1 Hardness Tester body

2. Pencil for hardness test (6B... 9H, a total of 17 specifications) 1 set

3. 1 piece of sandpaper No. 400

4. Carry case

1 pc

Optional Accessories:

1. Scraper

2. Sandpaper

3. Pencil

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
