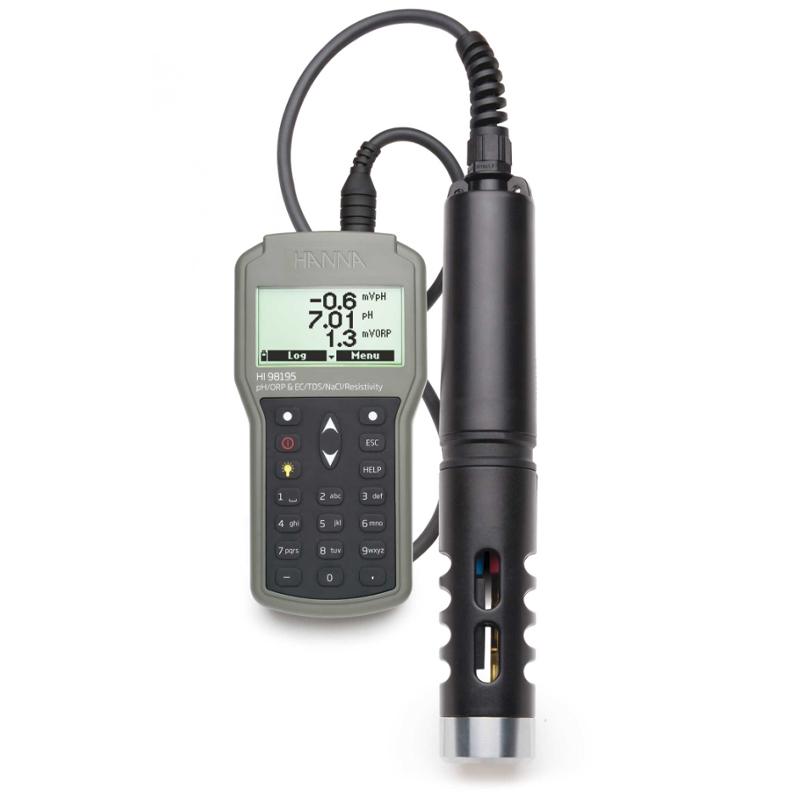

HANNA HI98195 10-parameter water quality analysis Tester 40 meters long
SE
HI98195/40
HANNA HI98195/40 Multiparameter DetectorSPEC
HANNA HI98195/40 Multiparameter DetectorDetails
HANNA HI98195/40 Multiparameter DetectorPacking list
- SKU
- NB020321
- pH-mV range
- 0.00~14.00pH/±600.0mV
- pH-mV resolution
- 0.01PH/0.1mV
- pH-mV Measurement Accuracy
- ±0.02pH/±0.5mV
- pH-mV calibrated mode
- Up to three points of automatic calibrate recognition and one custom calibrate, built-in five standard calibrate points 4.01, 6.86, 7.01, 9.18, 10.01 pH parameters
- ORP Measurement range
- ±2000mV
- ORP resolution
- 0.1mV
- Measurement Accuracy of ORP
- ±1.0mV
- ORP calibrated mode
- Single point custom calibrated (relative mV)
- Conductivity range
- 0~200mS/cm (Absolute Conductivity Detector up~ 400mS/cm)
- EC resolution
- 1μS/cm、0.001ms/cm、0.01mS/cm、0.1mS/cm、1mS/cm
- Measurement Accuracy of conductivity
- Readings +/- 1% or +/- 1mg/L (ppm), whichever is the largest
- Conductivity calibrated mode
- Automatic recognition of single point calibrate, user-defined calibrate, built-in six Conductivity Detector standard calibrate points 84 μS/cm, 1413 μS/cm, 5.00mS/cm, 12.88mS/cm, 80.0mS/cm, 111.8mS/cm
- TDS range
- 0~400000Mg/Lorppm (MAX Maximum depends on TDS coefficient)
- TDS resolution
- 1mg/L(ppm)、0.001g/L（ppt）、0.01g/L（ppt）、0.1g/L（ppt）、1g/L（ppt）
- TDS Measurement Accuracy
- Readings +/- 1% or +/- 1mg/L (ppm), whichever is the largest
- TDS calibrated mode
- To calibrate conductivity or salinity
- Resistivity range
- 0~999999Ω·cm；0~1000.0kΩ·cm；0~1.0000MΩ·cm；
- resistivity resolution
- Depending on the reading
- Resistivity calibrated mode
- To calibrate conductivity or salinity
- Salinity range
- 0.00~70.00PSU
- Salinity resolution
- 0.01PSU
- Measurement Accuracy of salinity
- Reading +/- 2% or +/- 0.01PUS, whichever is the largest
- Salinity calibrated mode
- To calibrate conductivity
- Measurement range of seawater specific gravity
- 0.0~50.0σt，σ0，σ15
- Seawater specific gravity resolution
- 0.1σt，σ0，σ15
- Measurement Accuracy of seawater specific gravity
- ±1.0σt，σ0，σ15
- Seawater specific gravity calibrated mode
- To calibrate conductivity
- Measurement range
- -5.00~55.00℃；23.00~131.00℉；268.15~328.15K
- temperature resolution
- 0.01℃;0.01℉;0.01K
- Measurement Accuracy
- ±0.15℃;±0.27℉;±0.15K
- Temperature calibrated mode
- Single point user calibrated
- temperature compensation
- Automatic temperature compensation, -5.00~55.00 ℃, 23.00~131.00 ° F
- Data storage
- 45000 measurement Data storage, (continuous automatic storage or manual storage)
- recording interval
- Can be set from 1 second to 3 hours
- Interface
- USB Interface (HI9298194 data management software is recommended)
- Operating Environment
- 0~50℃(32~122℉);RH100%IP67
- Battery operated
- 1.5VAA battery * 4, about 360 hours of continuous use
- Weight/Size
- 185x93x35.2mm（7.3x3.6x1.4“）/400g（14.2oz）
Portable high-precision professional multi-parameter analysis and Tester, in line with IP67 international waterproof standard, acidity pH-pH-mV conversion - redox ORP - conductivity EC - resistivity - total dissolved solids TDS - salinity - seawater specific gravity - atmospheric pressure - temperature and other conventional important 10 items [including 5 kinds of measured values and 5 kinds of calculated values] water quality indicators are quickly and accurately measured, and the range and unit conversion are automatically identified; New design, on-screen calibration operation step prompt, GLP function, quick query of relevant data, acidity verification function, automatic identification calibration and user-defined calibration, automatic endpoint lock function, USB data interface, large-capacity data storage, good data management.
peculiarity
The new ergonomic design, large background light, chart display function, good cost performance
The main body is IP67 waterproof and anti-slip design, and the electrode is IP68 waterproof standard, which can meet the measurement of harsh environments such as pipelines or deep wells
Multi-parameter integrated electrode design, intelligent electrode holder built-in microprocessor and temperature sensor, can be installed pH (ORP) and EC electrodes at the same time
Electrode position is color-coded for easy installation and automatic identification
The water quality indicators of 9 items are quickly measured at the same time, and the full-screen display is clear at a glance
Unique quick calibration function, automatic error diagnosis function, automatic recognition of measuring range, easy replacement of measurements
Powerful GLP management, large-capacity 45,000 data storage functions, USB data interface, data analysis and management software
Good anti-electromagnetic signal interference ensures measurement reliability, accuracy, and a wide range of applications
