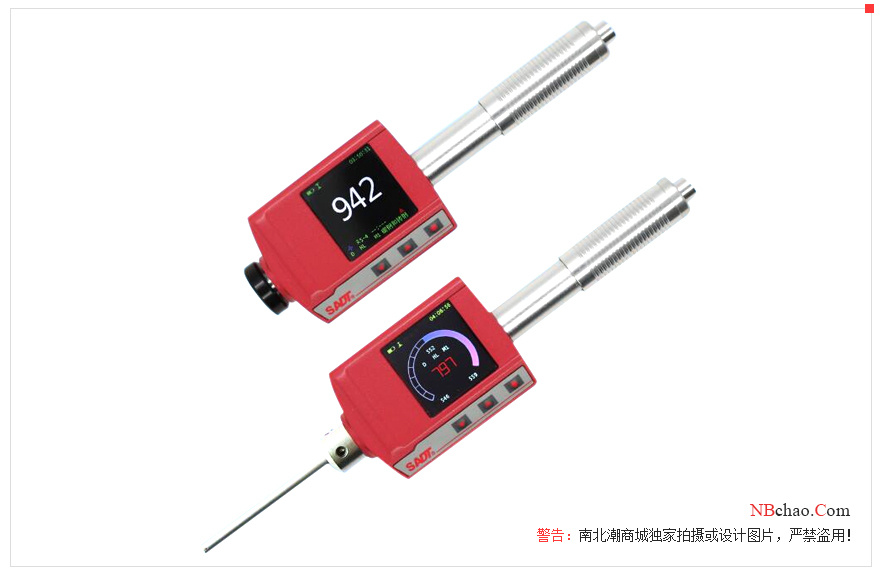

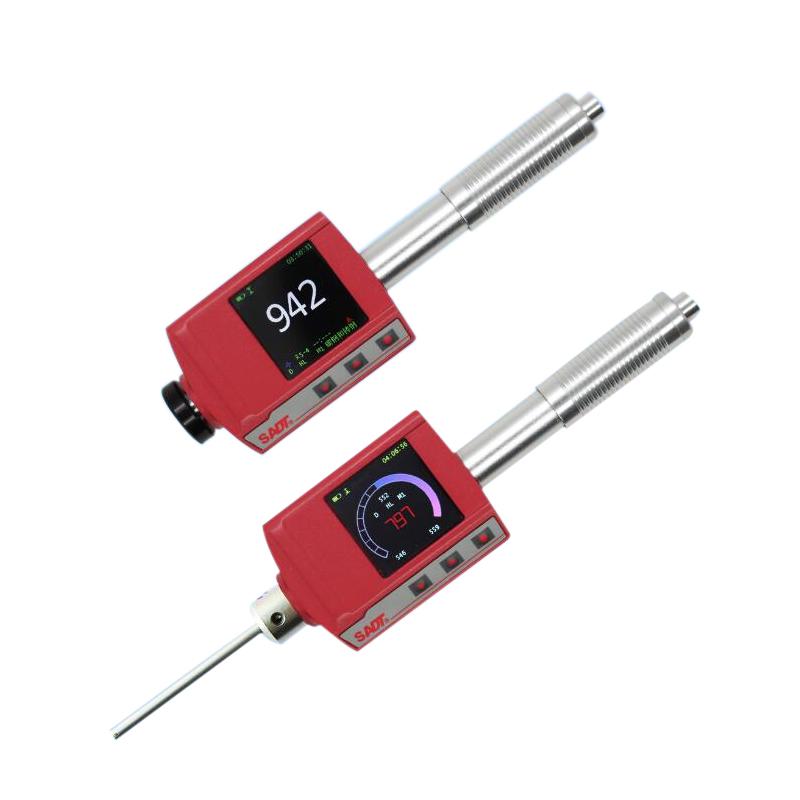

SADT HARTIP4100 Portable Leeb Hardness Tester

HARTIP4100

Leeb Hardness Tester

Introduction

ARTIP 4100 is a new generation of Leeb Hardness Testers. On the basis of the original Leeb Hardness Tester, the double-coil technology independently developed by our company is adopted to improve the measurement accuracy. The HARTIP4100 is rugged and durable due to its metal housing, making it particularly suitable for high-temperature environments with heat treatment. Using a high-resolution TFT color liquid crystal, the positive and negative offsets are displayed dynamically. In addition, the existing measurement range has been extended to meet the requirements of HRC and HB values for low-hardness materials such as mild steel, and HRC values for ultra-high-hardness materials. Equipped with Bluetooth and USB ports, it can be wirelessly printed and connected to a computer. Inside, it is equipped with a lithium-ion rechargeable battery, which can be charged via a USB port. It supports user calibration and has an automatic statistics function.

Features

• All-in-one design and easy to operate

• Rugged metal housing

• 320x320 color high contrast TFT LCD display

• High accuracy: +/-2 HL (or 0.3% @HL800)

• Compensation is linear in the direction of the test

• The dynamic histogram shows two modes of judging the degree of offset in combination with different colors: upper and lower bounds/offset

• Two calibration modes: joint mode / independent mode

• Multiple printing modes

• Beep prompt

• D/DL 2-in-1 probe

• USB and Bluetooth ports can be connected to the computer for wireless data printing

• 3.7V Li-ion rechargeable battery, which can be charged via USB port or charger

• Statistics are calculated automatically

Packing list：Host X1, built-in D-probe X1, D test block X1, small support ring X1, small brush X1, built-in 3.7V lithium-ion rechargeable battery X1, built-in Bluetooth module X1, USB charger X1, USB cable X1, data software X1, operation manual X1, test report X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
