SADT HTP2210 Portable Leeb Hardness Tester wireless bluetooth digital probe
HTP2210
SADT HTP2210 Leeb Hardness TesterSPEC
SADT HTP2210 Leeb Hardness TesterDetails
SADT HTP2210 Leeb Hardness TesterPacking list
- SKU
- NB020351
- working language
- Full Chinese interface and operation
- Error of indication
- ±HRC0.2
- Display
- 12864 LCD with backlight spot vibration, LCD reflective display can be operated in sunlight
- Hardness system
- HL/HRC/HRB/HRA/HB/HV/HS/σb
- Measurement range
- HL170~960、HRC17~69、HRB13~101.7、HB20~655、HV80~940、HS32~99.5、σb(rm)255~2180N、mm2
- Impact device
- Wireless Bluetooth digital probe D/DC/D + 15/C/DL
- communication distance
- Open 10m
- Impact direction
- full angle
- Measurement material
- 10 Common Metal Materials
- Data storage
- 300 data, can be stored and read again
- statistics
- automatic calculation
- Adjustment
- Users can calibrate themselves
- Communication interface
- Data transfer through USB interface or Bluetooth connection to the computer
- prompt
- Low power prompt
- Print function
- Optional wireless micro printer
- Alarm function
- Upper and lower limit overrun alarm
- Power Supply
- 3.7V rechargeable lithium battery
- Automatic shutdown
- automatic
- Power Supply
- 2 1.5V AA alkaline batteries (host) 3.7V lithium battery rechargeable battery USB interface charging (wireless probe)
- Operating temperature
- –10 ~+40℃
- Dimensions
- 124*67*30mm
- Net Weight
- 240g
- meet the standard
- Compliant with ASTM A956, DIN50156, GB/T17394-1998 standards
Introduction

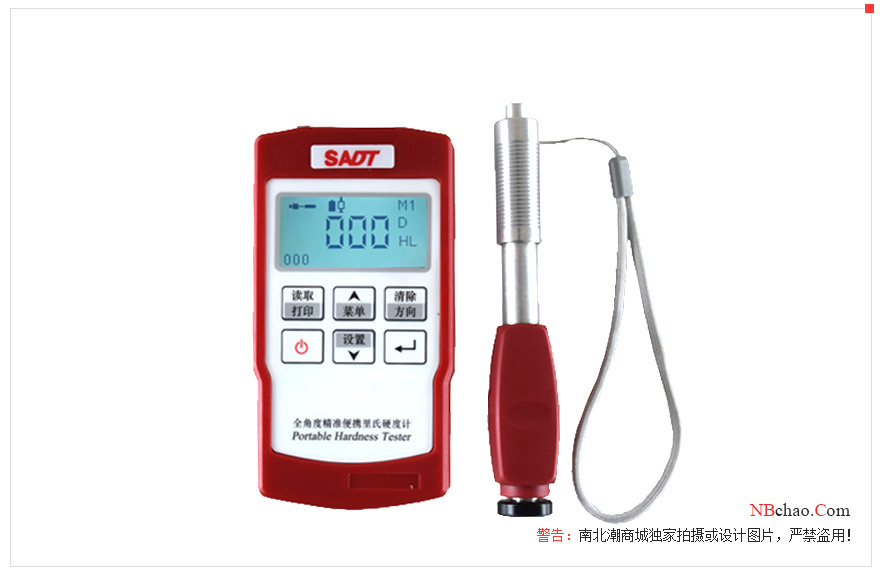

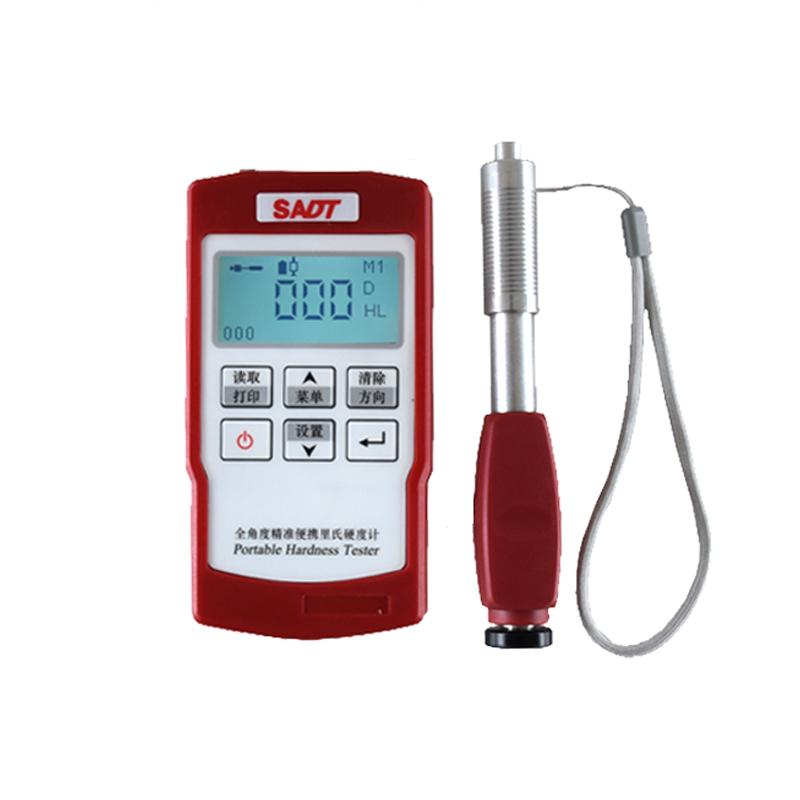

The HTP2210 is a new generation of Leeb Hardness Tester, with a full-Chinese interface and a wireless Bluetooth digital probe. The main unit is wirelessly connected to each type of impact device (probe) and the micro printer, and can be used online at the same time. The main machine automatically recognizes all types of impact devices (probes) and sets them automatically. Full-angle digital probe, test in any direction, no need to manually set the test direction. The wireless printer prints the measurement data on site. The wireless digital probe avoids the problem that the probe wire cannot be used due to long-term wear and internal breakage, and the operation is more flexible and convenient, and the host is placed at will, not restricted by the probe wire. It is especially suitable for working at height or in confined spaces for one-man operation.
The wireless probe is equipped with a lithium-ion rechargeable battery, which can be charged through the USB port of the computer or the charger of the mobile phone.
