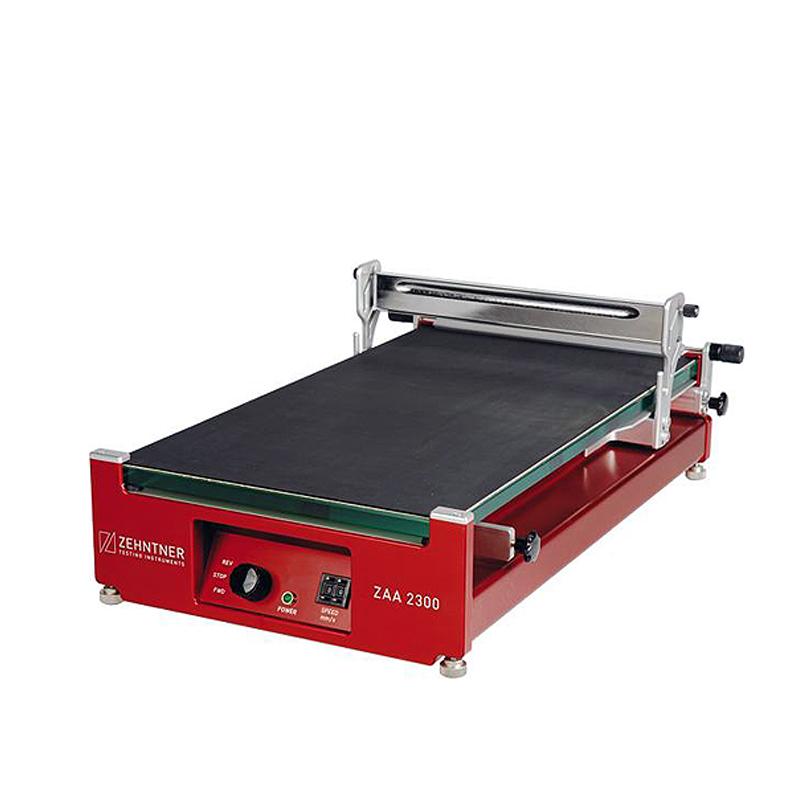

Zehntner ZAA2300 Automatic Film Applicator

ZAA2300

Automatic Film Applicator

Product name: Automatic coating machine

Model: ZAA2300

Brand: Swiss Zehntner

Swiss Zehntner ZAA2300 automatic coating machine product introduction:

ZAA2300 automatic coating machine, the coating length, width and speed can be adjusted at will! The maximum wet film width that can be created is 300mm (depending on the applicator).

Swiss Zehntner ZAA2300 automatic coating machine meets the standards:

ASTM D823-95

Swiss Zehntner ZAA2300 automatic coating machine Features

Suitable for experiments, quality control analysis, and distribution characteristics of paints, coatings, inks, varnishes, and adhesives.

Coating length (starting point/focus) and moving speed can be adjusted arbitrarily

Multiple sets of wet Film Applicators can be used at the same time, and the starting clamp can be moved at will.

The bottom plate is made of rubber and glass on both sides, suitable for samples with various characteristics.

The coating rod holder provides stable downward pressure, instead of just fixing both ends.

An optional "vacuum suction plate" can be used to fix thin and light samples for stable adsorption.

It is used for automatic coating in chemical industries such as coatings, paints and inks, with good reproducibility and avoids the uncertainty of manual coating.

Swiss Zehntner ZAA2300 automatic coating machine technical specifications:

Material: red alumina, double-sided glass plate

Dimensions: Host 565×382×190mm

         Glass plate 553×300×15 mm

Weight: 26.4kg

Moving speed: ZAA23001-99mm/s

          ZAA2300.F1-250mm/s

          ZAA2300.FF1-500mm/s

Coating length: 1mm-400mm

Coating width: 1mm-300mm

Standard configuration:

1 automatic coating machine

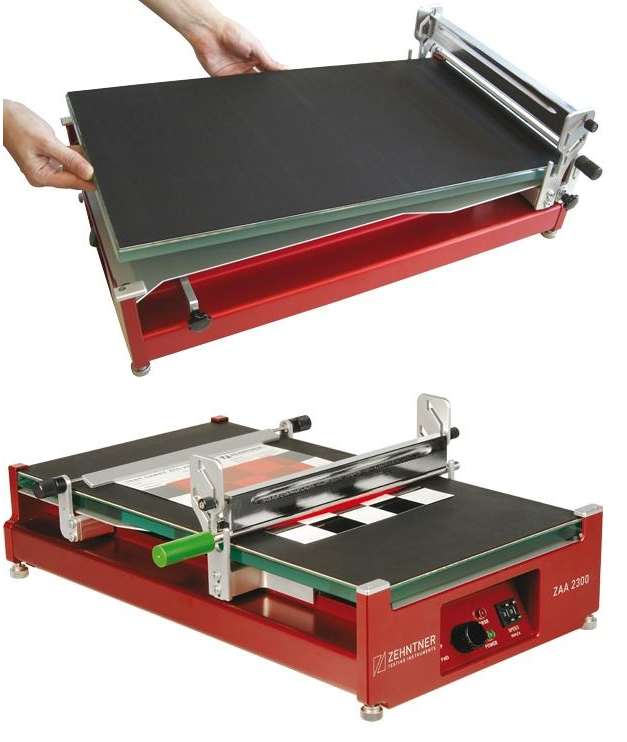

1 reversible, double-sided glass panel: glass surface on one side, printed blanket on the other side

1 quick leveler

1 production authorization letter

1 operating manual

Optional:

Coating rod

Specifications 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38, 40, No. 42, 44, 46, 48, 50, 55, 60, 65, 70, 75

Total length 400mm, moisture-generating film width 300mm

The diameter is divided into (A) φ6.5mm, (B) φ12.5mm, * No. 2 coating rod is only supplied with diameter φ12.5mm

Optional

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
