Zehntner ZGM1120 computer straightness Glossmeter

ZGM1120 computer straightness Glossmeter supports single-point, continuous, multi-point automatic measurement, ZGM1120 Glossmeter Measurement angle is 20 °/60 °/85 °, measurement range: 0~2000GU.
Model：
Contact
Details SPEC

Zehntner By Proceq ZGM1120 Computer straightness GlossmeterSPEC

Zehntner By Proceq ZGM1120 Computer straightness GlossmeterDetails

Zehntner By Proceq ZGM1120 Computer straightness GlossmeterPacking list

SKU
NB002053
Measurement angle
20°/60°/85°
Measurement range
0~2000GU
Dimensions
99*15*56mm
Weight
117g
Power
USB Power
Measurement Accuracy
±1%
Sensor
Adapted to V (λ)
Light source
LED, white
correction
According to BAM
ZGM1120
Computer straightness Glossmeter

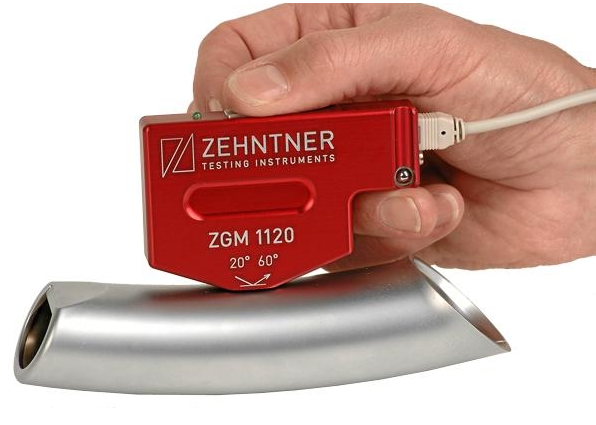

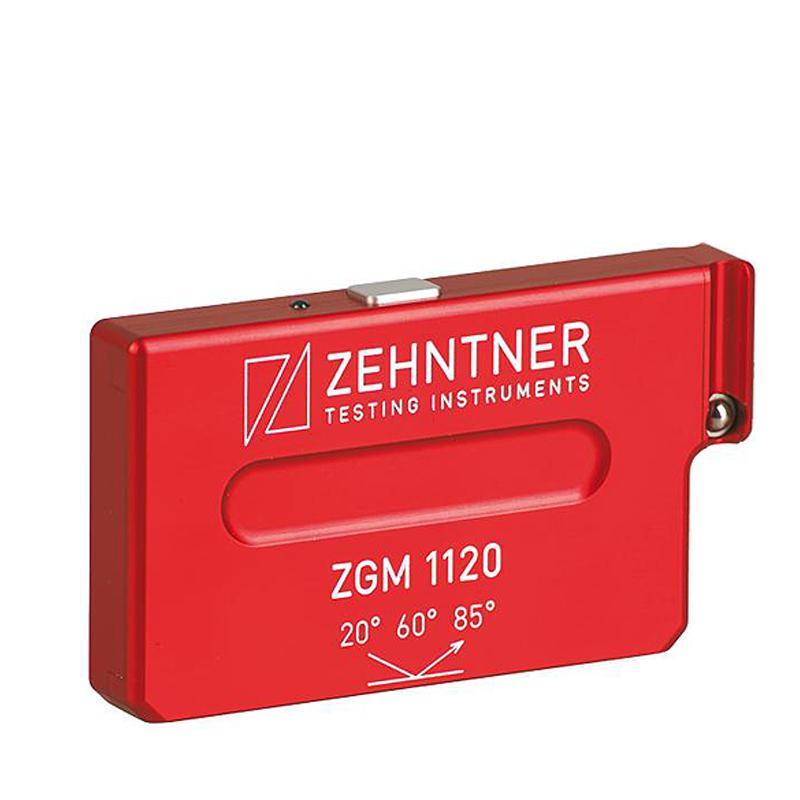

Zehntner ZGM1120 computer straightness Glossmeter Picture

Swiss Zehntner ZGM1120 computer straightness gloss meter CHINA agent special price spot sale

Product name: Computerized straightness gloss meter

Model: ZGM1120

Brand: Swiss Zehntner


The new ZGM1120 gloss meter is a small three-angle gloss meter! All-aluminum alloy structure, super lightweight! Super strong! Plug it into any PC/Notebook computer via USB (battery-free), and use it with the powerful GlossTools software to transform it into a smarter gloss analyzer!

Swiss Zehntner ZGM1120 computer straightness gloss meter meets the standards:

ASTM,DIN,ISO,EN,BS,TAPPI


Features of Zehntner ZGM1120 computer straightness gloss meter

1. Operate through Gloss Tools software

2. Continuous measurement can be carried out and the statistical data of gloss value (average, standard deviation, maximum value, minimum value) can be updated at any time.

3. Gloss Tools software can easily import measurement values ​​into a database or Microsoft Excel

feature of product

Super mini three-angle probe

Plug in the USB and it’s ready to go! Transform your PC/Notebook into a "good gloss meter"

Single point, continuous and multi-point automatic measurement (interval 1.5sec)

Sturdy aluminum alloy casing, single-button measurement, easy operation

Three-angle probe: 20°/60°/85°


Swiss Zehntner ZGM1120 computer straightness gloss meter technical specifications:

Measuring angle: single angle measurement and double angle measurement are optional

Gloss range: 0-2000GU

Measurement accuracy: ±1%

Sensor: adapted to V(λ)

Light source: LED, white

Power supply: USB power supply

Correction: According to BAM

Size: max. 99×15×56mm (L×W×H)

Weight: max.117g

Warranty period: one year


Swiss Zehntner ZGM1120 computer straightness gloss meter standard configuration:

1. 1 glossy host

2. 1 calibration board

3.USB cable 1 piece

4. Software CD 1 disk

5. 1 manufacturer certificate

6. 1 calibration certificate

7. 1 portable case
