Zehntner ZGM1110 Glossmeter

ZGM1110

Glossmeter

Product name: Gloss meter

Model: ZGM1110

Brand: Swiss Zehntner

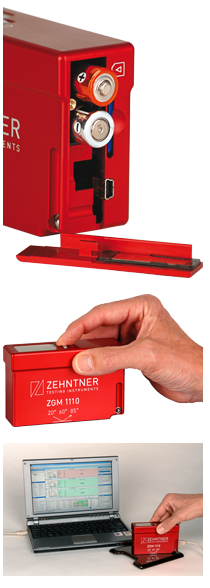

The new ZGM1110 gloss meter is made of an all-aluminum alloy solid body, with a mini shape design and an ultra-light weight of 363 grams. It can be used alone or connected to a computer via USB (battery-free). It is equipped with the powerful GlossTools software to meet the requirements of gloss metering. The highest demand for degree measurement!

Swiss Zehntner ZGM1110 gloss meter meets the standards:

ASTM,DIN,ISO,EN,BS,TAPPI

Product Features of Swiss Zehntner ZGM1110 Gloss Meter

*20°/60°/85° three-angle probe, covering the full range from low gloss to high gloss, and can measure any surface

*Single-machine and computer USB direct reading dual use! 363g light! Small 111mm! OLED self-illuminating screen!

*Single point, continuous and multi-point automatic measurement (interval 1.5sec)

*Sturdy aluminum alloy casing, can also be switched for left-handed use

*Shuttle knob, OLED organic light-emitting display, built-in 125MB memory card, can be operated stand-alone or connected to a computer

*363g ultra-lightweight design! One-hand control, easy to operate

*Standardly equipped with GlossTools software, with automatic correction prompts, statistical functions (Min/Max/Avg/Std), automatic* identification of standard plates, upper and lower limit warnings, self-test, data can be exported to MS-Excel, and direct generation of PDF reports.. .

*Sturdy aluminum alloy casing, can also be switched for left-handed use

*Shuttle knob, OLED organic light-emitting display, built-in 125MB memory card, can be operated stand-alone or connected to a computer

*363g ultra-lightweight design! One-hand control, easy to operate

*The standard GlossTools software has automatic correction prompts, statistical functions (Min/Max/Avg/Std), automatic identification of standard plates, upper and lower limit warnings, self-test, data can be exported to MS-Excel, and direct generation of PDF reports...

Zehntner ZGM1110 gloss meter product specifications

Probe form: three angle measurement

Measuring range: 0…..2000GU

Reproducibility: 0…199.9GU: 0.1GU: 200…2000GU: 0.1%

Sensor: adapted to V(λ)

Display: OLED organic light-emitting diode screen, 128×64 pixels

Light source: white LED

Power supply: USB, AA battery (can be powered directly by USB without installing the battery)

Correction Traceability: Traceable to BAM

Dimensions and weight: 111.5×35×72mm (L×W×H) 363g

System requirements: Windows 2000 SP4, XP, Vista

Swiss Zehntner ZGM1110 gloss meter standard configuration:

Probe (please specify), standard piece. GlossTools software CD, 128MB memory card, USB cable, calibration report, battery, hard carrying case

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
