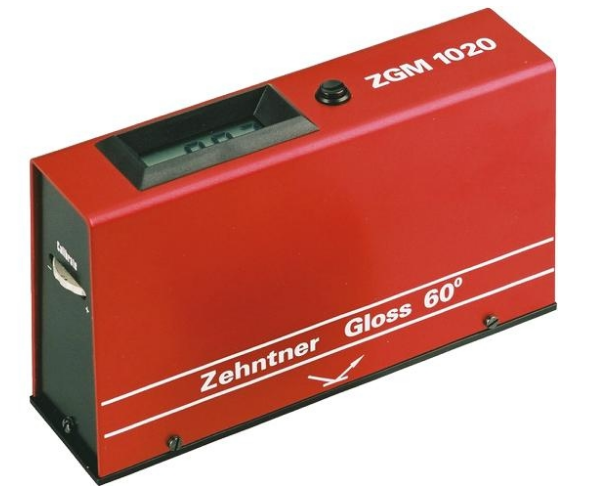

Zehntner ZGM1020, ZGM1022, ZGM1023 portable precision Glossmeter

ZGM1020

Portable precision Glossmeter

Product name: Portable precision gloss meter

Model: ZGM1020, ZGM1022, ZGM1023

Brand: Swiss Zehntner

ZGM1020, ZGM 1022, and ZGM 1023 portable precision gloss meters are easy to operate, lightweight, and have high quality standards and are widely loved by users around the world. Just touch the button and get the results immediately, with reproducibility within ±0.1 every time.

ZGM1020, ZGM1022, and ZGM1023 portable precision gloss meters cover the range from low gloss to high gloss, can measure various surfaces, and provide a variety of angle measurement combinations, making them popular among users.

ZGM1020, ZGM1022, and ZGM1023 are portable precision gloss meters with direct digital display and a stable reading value locking function. Solid aluminum alloy shell, built-in rechargeable battery pack, easy to operate.

ZGM1020 gloss meter single measuring angle: 20°, 45°, 60°, 75°, 75°TAPPI, 75°DIN, 85°, 20°mini, 45°mini, 60°mini

ZGM1022 gloss meter dual measuring angle: 20°/60°, 20°/75°TAPPI, 20°/85°, 20°/45°mini, 20°/60°mini, 45°/20°mini, 45° /60°mini, 60°/20°mini, 60°/45°mini, 75°TAPPI/20°mini, 75°TAPPI/45°mini, 75°TAPPI/60°mini, 85°/20°mini, 85°/45°mini, 85°/60°mini, 20°mini/45°mini, 20°mini/60°mini, 45°mini/60°mini

ZGM1023 gloss meter switchable: 20°, 60°, 75°TAPPI

Swiss Zehntner ZGM1020, ZGM1022, ZGM1023 portable precision gloss meters meet the standards:

ASTM D523/C346/D1223/D2457, ISO 2813/7668, EN 12373-11, DIN 67530/54502, DIN EN ISO 2813, prEN 12523-2, JIS Z8741, TAPPI T480, ECCA-T2

Swiss Zehntner ZGM1020, ZGM1022, ZGM1023 portable precision gloss meter product specifications:

Model ZGM1020/1022/1023

Measuring range: ZGM 1020/1022 0...199.9GU, ZGM1023 0...1999GU

Depends on different probe angles

Sensor: adapted to V(λ)

Light source: Halogen lamp standard A light source

Measuring port size: 40x15mm

Power supply: built-in charging module

Zehntner ZGM1020, ZGM1022, ZGM1023 portable precision Glossmeter configuration:

gloss meter

Standard calibration plate

Zero point calibration plate

Median value correction plate (optional)

Rechargeable battery pack (with cable)

spare light bulb

screwdriver

calibration certificate

Carrying case

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
