JINGTIAN NDJ-4S digital display Rotational Viscometer 2 million CP

SE
JINGTIAN digital display Rotational Viscometer NDJ-4S adopts LCD, measurement Viscosity is 20~2000000mPa·s, NDJ-4S Rotational Viscometer measurement accuracy is ± 5%, providing eight speed adjustable.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JingTian NDJ-4S Digital Rotational ViscometerSPEC

JingTian NDJ-4S Digital Rotational ViscometerDetails

JingTian NDJ-4S Digital Rotational ViscometerPacking list

SKU
NB020586
Display
digital display
Measuring range
20~2000000mPa·s
Rotor Specifications
L1#、L2#、L3#、L4#
Reproducibility
±1%F.S
Measurement Accuracy
±5%
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.3/0.6/1.5/3/6/12/30/60rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
NDJ-4S
Digital Rotational Viscometer

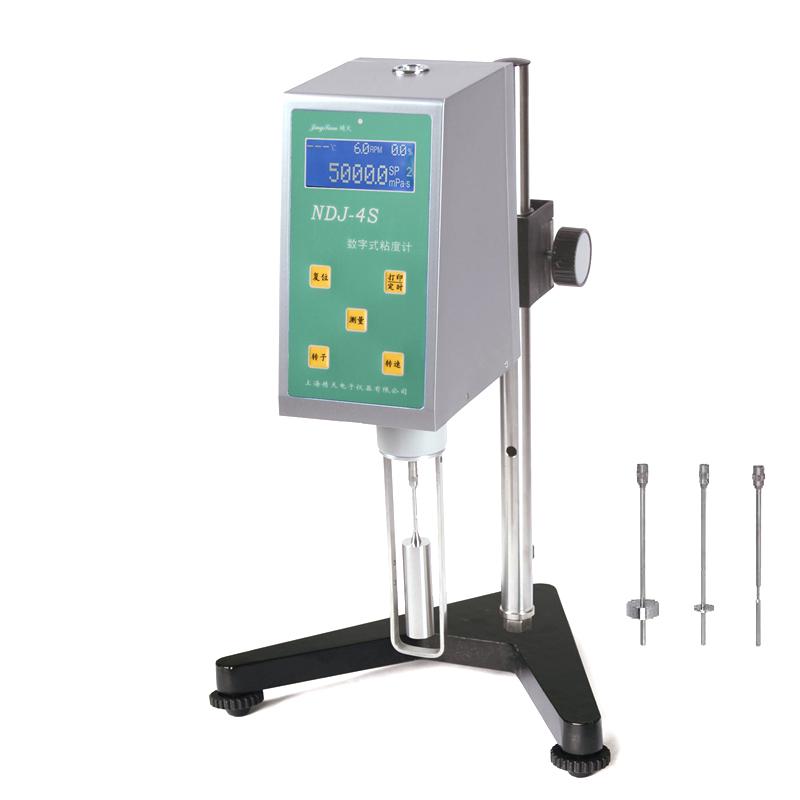

JINGTIAN NDJ-4S digital display Rotational Viscometer 2 million CP Picture

Introduction

The LCD of Shanghai JINGTIAN NDJ-4S digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current rotational speed. Viscosity value etc. It is a digital display Rotational Viscometer with a range of 20 to 2,000,000 mPa·s.


JINGTIAN NDJ-4S Digital Display Rotary Viscometer Details Figure 1

FAQ
QI am worried that the data will drift during long-term measurement. How is the stability of this device?
A Hello, NDJ-4S adopts high-accuracy stepper motor to ensure accurate and stable speed, and long-term measurement can also maintain data stability. You can rest assured to carry out long-term experiments, and the equipment will provide you with stable and reliable measurement results.
QThe sample viscosity range I need to measure is around 50,000 mPa · s. Is this Viscometer suitable?
A Hello, the NDJ-4S digital display swirl/spin Viscometer has a measurement range of 20~ 2,000,000 mPa · s, which can fully cover the sample viscosity of 50,000 mPa · s, which is very suitable for your measurement needs.
QI need to change the sample and rotor frequently, will it be complicated to operate?
A Hello, the NDJ-4S is designed to be easy to use, and the rotor replacement and Sample Handling are very convenient. You can quickly disassemble and install the rotor, and the device is equipped with a clear LCD screen to display all key parameters, simplifying the operation process.
QIn addition to viscosity, can this device also measure Miscellaneous parameters?
A Hello, NDJ-4S can not only measure viscosity, but also display parameters such as shear rate, shear stress, speed, temperature and percentile torque. The multi-function display screen allows you to fully understand the characteristics of the sample and is suitable for various complex experimental needs.
QDoes the Shanghai JINGTIAN Viscometer meet the ISO12634 standard?
A The NDJ-4S Viscometer can refer to
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
