JINGTIAN NDJ-5S digital display Rotational Viscometer 100,000 CP

SE
JINGTIAN NDJ-5S digital display Rotational Viscometer can display Viscosity, shear rate, shear stress, speed, temperature and other parameters, with eight speeds, NDJ-5S Rotational Viscometer measurement accuracy of ± 1%.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian NDJ-5S Digital Rotational ViscometerSPEC

JingTian NDJ-5S Digital Rotational ViscometerDetails

JingTian NDJ-5S Digital Rotational ViscometerPacking list

SKU
NB020589
Display
digital display
Measuring range
20~100000mPa·s
Rotor Specifications
L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
6/12/30/60rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Speed control method
Four speed
NDJ-5S
Digital Rotational Viscometer

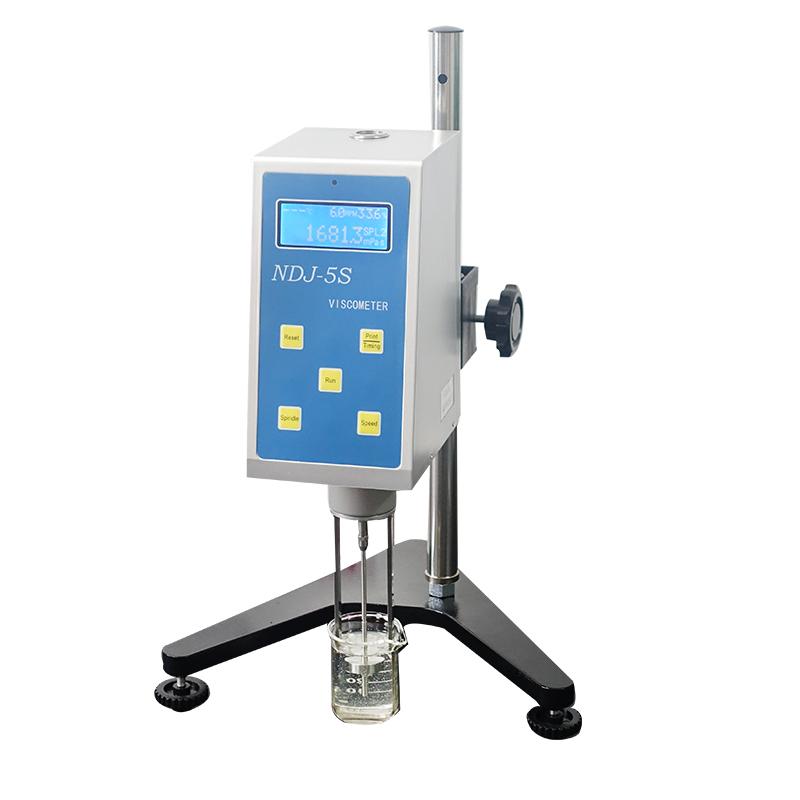

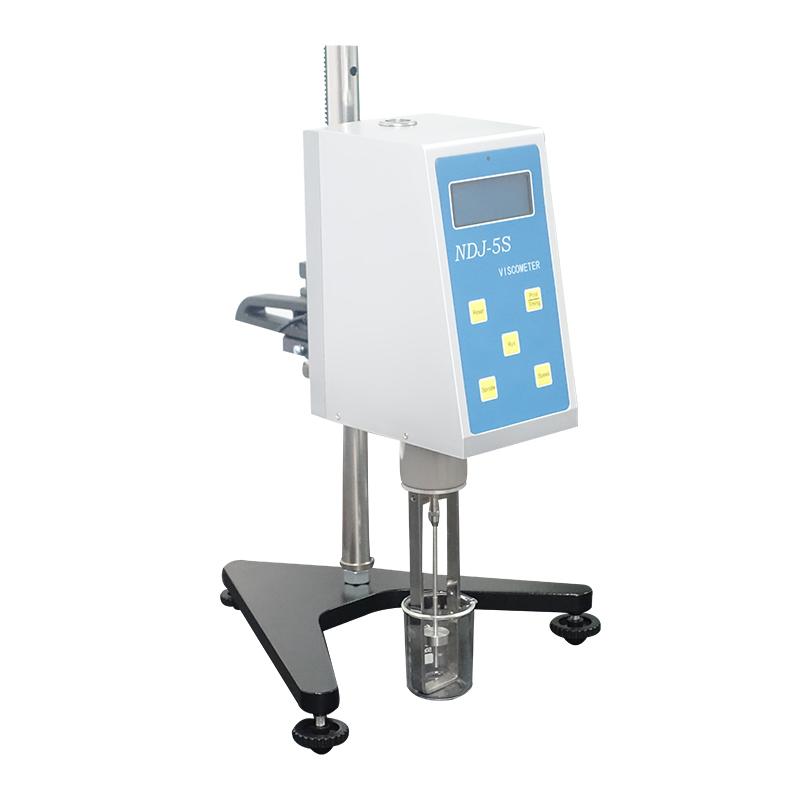

JINGTIAN NDJ-5S digital display Rotational Viscometer 100,000 CP Picture

Introduction

The LCD of JINGTIAN NDJ-5S digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display rotary viscometer with a measuring range of 20 to 100,000 mPa·s.

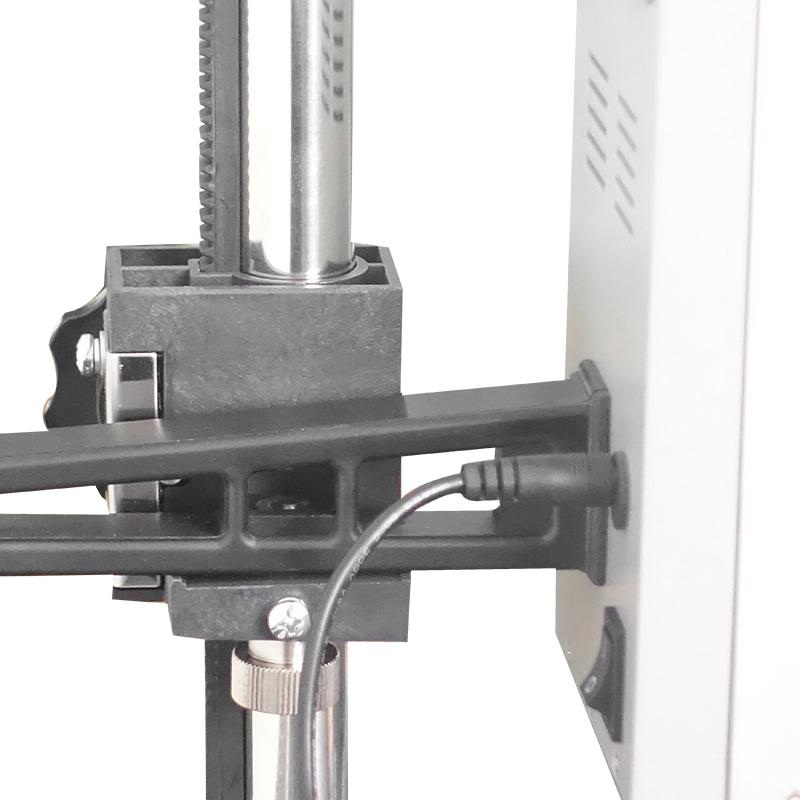

JINGTIAN NDJ-5S Digital Display Rotary Viscometer Details Figure 1


FAQ
QMainly to measure bio-oil, tens of thousands of mpa.s need different temperatures to measure the corresponding viscosity Probably in the viscosity range of tens of thousands
A Just recommend ndj-5s.
QPositive cathode lithium battery Viscometer Is the sample volume of 100-200ml okay?
A This positive cathode lithium battery slurry generally uses L3\ L4 number to turn 5S/8s Viscometer is OK
QI would like to ask about the viscosity test of konjac flour, the model is swirl/spin Viscometer sample viscosity, in milliPascal seconds (mPa · s) K-factor (K = 500 when using No. 4 rotor at 12 r/min) 0 - swirl/spin Viscometer readings maximum average. Under the Repeatability condition, the absolute difference between the two independent assays obtained does not exceed 1000 mPa · s.
A Just use ndj-5s.
QRecommended by Viscometer, for polyurethane testing It is to test the viscosity of polyurethane at normal room temperature, about the viscosity below 100,000
A Can use NDJ-5S/NDJ-8S
QIs the NDJ-5s swirl/spin viscosity Measurement the same?
A Yes, it's pretty much the same.
QA swirl/spin Viscometer for excipient hydroxypropyl methylcellulose, viscosity determination; single-column swirl/spin Viscometer, the instrument is required to meet the requirements of the 2020 edition of the four general principles, and the viscosity range of excipients is 3000~ 5600mPa · s
A Just use the NDJ-5S.
QCan I convert between kinematic viscosity and dynamic viscosity?
A Yes, the formula is kinematic viscosity = dynamic viscosity ÷ liquid Density.
QShampoo viscosity 6000 to 18000cp, which one to choose?
A The NDJ-5S can be tested.
QTest the viscosity of conductive paste. Is there a recommended Viscometer?
A Generally, NDJ-5S can be tested.
QDoes this have a data collection Communication interface?
A 232 interface can be installed.
