JINGTIAN NDJ-8S digital display Rotational Viscometer 2 million CP

SE
JINGTIAN digital display Rotational Viscometer NDJ-8S is a digital display Viscometer, the Viscosity range is 20~2000000mPa·s, and the accuracy is ± 1%. NDJ-8S digital display Rotational Viscometer is suitable for paint, Adhesive, food, Printing, Adhesive and other Viscosity tests.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian NDJ-8S Digital Rotational ViscometerSPEC

JingTian NDJ-8S Digital Rotational ViscometerDetails

JingTian NDJ-8S Digital Rotational ViscometerPacking list

SKU
NB020590
NDJ-8S
Digital Rotational Viscometer

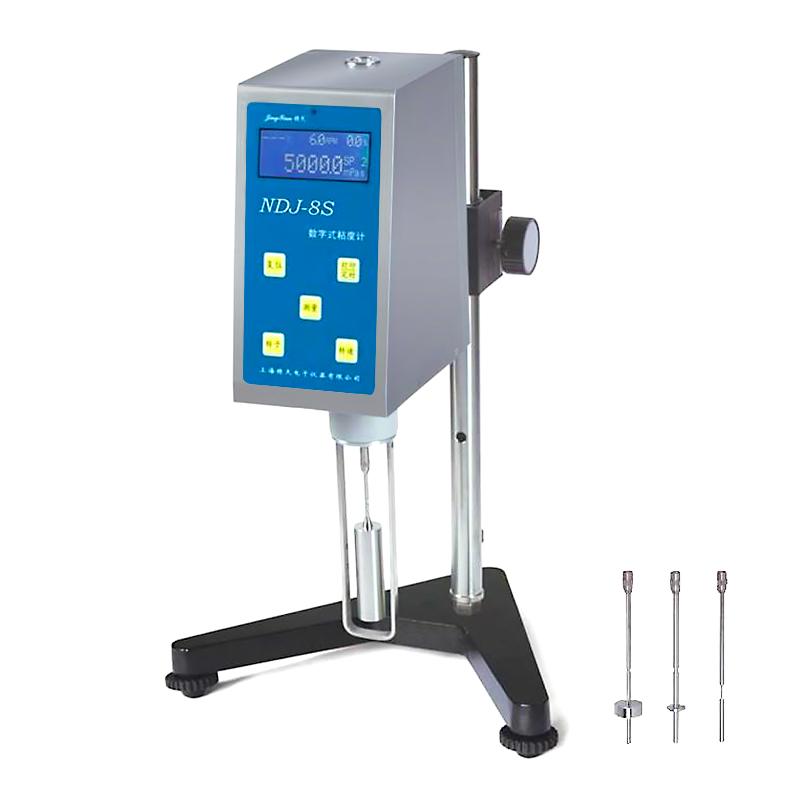

JINGTIAN NDJ-8S digital display Rotational Viscometer 2 million CP Picture

Introduction

The LCD of JINGTIAN NDJ-8S digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display Rotational Viscometer with a range of 20 to 2,000,000 mPa·s.

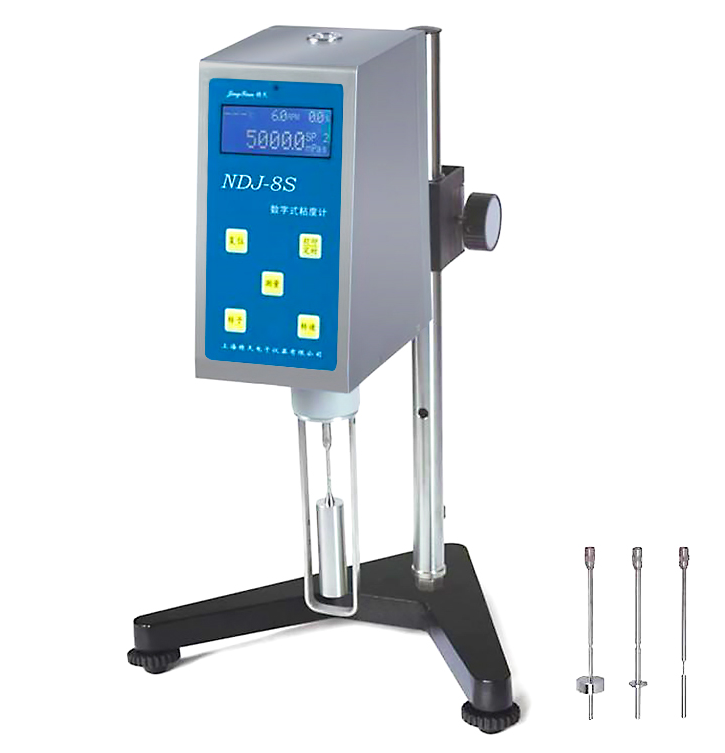

JINGTIAN NDJ-8S Digital Display Rotary Viscometer Details Figure 1


FAQ
QOur products have fluids and viscous. If the flowability is not good, which Viscometer Spinning & weaving industry detergent, softener and the like need to be selected. There are liquid fluids and viscous.
A This is OK, detergent, laundry detergent viscosity is not very high, the range of 5s is 100,000 viscosity, 8s is 2 million to buy 8s safely
QResin Range 200 -1-2kmpa.s 25-40 temperature
A 8s is enough. Thermostatic bath + 8s Thermostatic bath is recommended. LC-1008 is recommended, which we specially customize for Viscometer.
QHello, Polyurethane Adhesives - Single and Two-Component, Up to 5000MPAS
A You can test the polyurethane Adhesive with ndj-8s.
QHello, we measure precious metal slurry, and the viscosity is about 200pa. Is there a suitable Viscometer recommended? Tungsten paste, used for printing.
A Ndj-8s is recommended.
QThe viscosity meter for offset ink requires thermostatic heating. Is there any recommended solution?
A NDJ-8S is recommended for inks for paper printing, plus LC-1008 Low Temperature Thermostatic bath
QCan this digital rotational viscometer show shear stress?
A No, only DV and SNB series are available.
QI need a Viscometer to test saccharide, around 25 ° C at room temperature, I don't know what the viscosity range of sugar is.
A This one can be measured. The viscosity of saccharide is usually related to its concentration, molecular weight and structure, and the viscosity range of different types of saccharide is also different. Generally, the viscosity range of saccharide is about 0.1 to 1000 mPa · s, but the viscosity of different saccharide at different concentrations may vary.
QViscometer for ammonia phenolic resin viscosity test?
A NDJ-8S should be OK for liquids, and heating and melting should be required for solids. SNB-RH can be considered, and it is equipped with a constant temperature water bath.
QWhen using a rotational viscometer, if bubbles are generated, what is the impact on the measurement results, and what is the principle of too large or too small?
A Small, rotor and air contact resistance becomes smaller When verifying the accuracy of Viscometer, we require no bubbles for the standard solution. But in practical applications, especially when the sample viscosity is large, the bubbles are not easy to disappear after stirring. Measurement conditions can be fixed at this time. If the measurement results Repeatability is good, it is not necessary to wait until the bubbles disappear before testing
QAmmonia phenolic resin viscosity test recommended?
A Is it solid or liquid? NDJ-8S should be OK for liquid, and heating and melting should be required for solid. SNB-RH can be considered.
