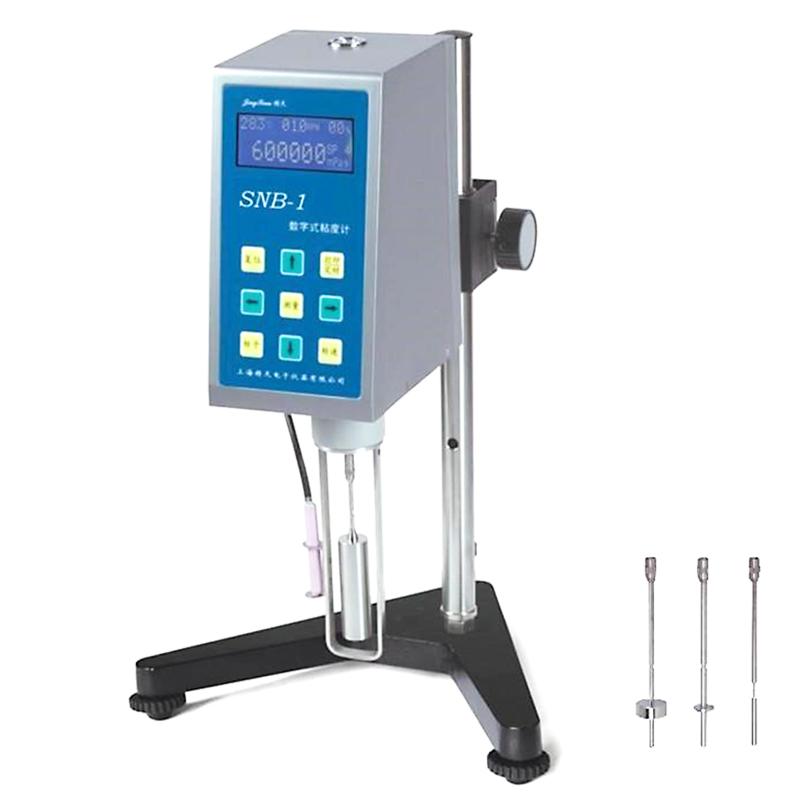

JINGTIAN SNB-1 digital display Rotational Viscometer 600,000 CP

SE
JINGTIAN SNB-1 digital display Rotational Viscometer measurement Viscosity range is 20~600000mPa·s, using LCD, SNB-1 digital display Rotational Viscometer has L1, L2, L3, L4 four rotors, is an automatic Viscosity meter.
Model：
Certificate
Contact
Details SPEC CATCAT
Similar products

JingTian SNB-1 Digital Rotational ViscometerSPEC

JingTian SNB-1 Digital Rotational ViscometerDetails

JingTian SNB-1 Digital Rotational ViscometerPacking list

SKU
NB020591
Display
digital display
Measuring range
20~600000mPa·s
Rotor Specifications
L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
1~60rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Speed control method
CVT
SNB-1
Digital Rotational Viscometer
JINGTIAN SNB-1 digital display Rotational Viscometer 600,000 CP Picture

Introduction

The LCD of Shanghai JINGTIAN SNB-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current rotational speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 20 to 600,000 mPa·s.



Shanghai JINGTIAN SNB-1 Digital Display Rotary Viscometer

FAQ
QWhy is there a ring in the middle of the No. 29 rotor that keeps it vertical?
A No. 29 rotor and No. 0 rotor, like No. 0 rotor is soft-connected, it mainly measures the viscosity is relatively low, No. 29 rotor has a soft connection, generally used in LVRV or the measured viscosity is relatively low, in addition, its measuringflask cylinder diameter is relatively small, relatively concentrated, but really high viscosity, that kind or use fixed connection.
QMy SNB-1 now only has rotors 0-4 to choose from. When choosing rotors, I can't choose No. 21, 27, 28, or 29. After I add a small number of sample adapters, can this Viscometer choose these rotors?
A Yes, only after a small amount of adapters can you use/select the 21, 27, 28, and 29 rotors. 0-4 is the standard rotor, more than 300ml, so the machine can only set these 4 rotors. After a small amount of adapters, you can use the small rotor.
QTest for corrosive samples, can the rotor hold up?
A We can customize stainless steel 316 rotors, which are more corrosion resistant than ordinary stainless steel rotors.
QCan this Viscometer buy a heating furnace separately? Test hot-melt adhesive
A We have a set for the heating model, and the technical customer service will recommend it to you. If you buy a heating furnace separately, you can also buy it.
QSNB-1 My solder paste is 200,000 How much is the minimum?
A Solder paste is a non-newtonian fluid. SNB-1 belongs to a low viscosity Viscometer. It also uses L4 to rotate. At 25RPM, the maximum can only measure 24,000, so SNB-1 cannot be used.
QHow much is SNB-1? For solder paste testing
A SNB-3 is recommended. https://www.nbchao.com/p/20594/ The solder paste is a non-newtonian fluid, and it is customary to use the Japanese Macon Viscometer to measure. With our SNB-3, L4 rotor, 25RPM Rotation speed, timed for 5-7 minutes, the measurement effect is similar to the Macon Viscometer
QHow to control the measurement accuracy of liquid viscosity?
A The model Viscometer can be measured, viscosity accuracy can refer to the specification parameters. When measuring, please measure at the same constant temperature, temperature has a great impact on viscosity, it is recommended to match Thermostat to ensure that the measured fluid temperature is constant, the measurement accuracy will be higher.
QCan this directly measure the liquid viscosity?
A It needs to be matched with a liquid temperature probe, which can be purchased at the same time when placing an order.
QCan the Shanghai JINGTIAN SNB-1 Viscometer meet the JJG1002 standard?
A Applicable, you can consult the customer service of the mall for details about the JJG1002 standard.
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
