JINGTIAN SNB-2 digital display Rotational Viscometer 6 million CP

SE
The Rotational Viscometer SNB-2 adopts a liquid crystal display, the measurement Viscosity range is 12~ 6000000mPa·s, the measurement accuracy of the SNB-2 Rotational Viscometer is ± 1%, and the speed range is 0.1~ 99.9rpm.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JingTian SNB-2 Digital Rotational ViscometerSPEC

JingTian SNB-2 Digital Rotational ViscometerDetails

JingTian SNB-2 Digital Rotational ViscometerPacking list

SKU
NB020593
Display
digital display
Measuring range
12~6000000mPa·s
Rotor Specifications
L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~99.9rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Speed control method
CVT
SNB-2
Digital Rotational Viscometer

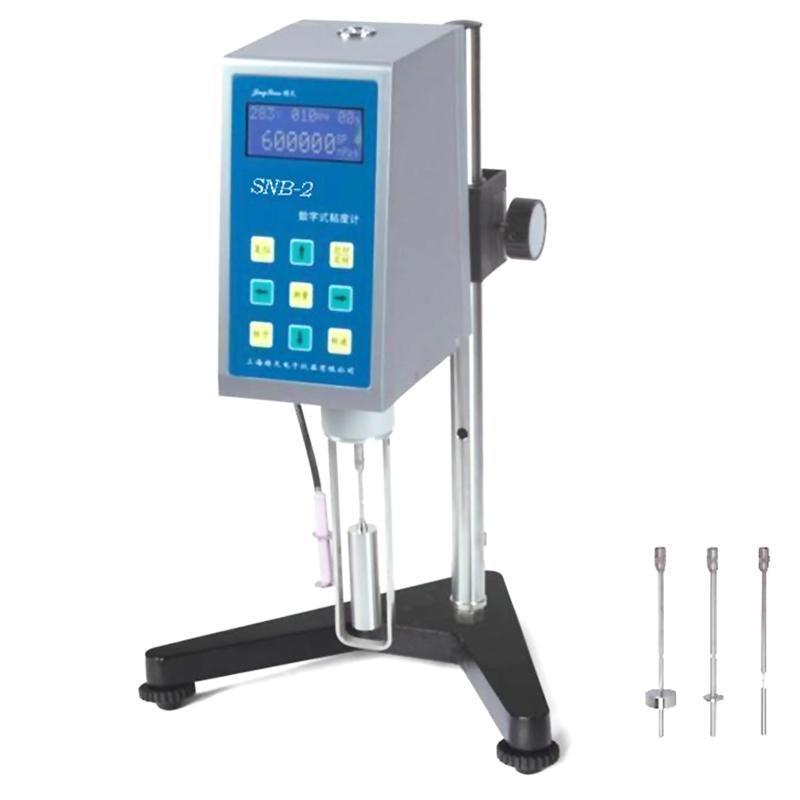

JINGTIAN SNB-2 digital display Rotational Viscometer 6 million CP Picture

Introduction

The LCD of Shanghai JINGTIAN SNB-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current rotational speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 12 to 6,000,000 mPa·s.



Shanghai JINGTIAN SNB-2 Digital Display Rotary Viscometer

FAQ
QIs this model OK for polymer Viscometer?
A Sure
QWant to know what's different about the 1234 probe?
A No. 1 to No. 4 are rotors, and the viscosity of different rotors is different.
QCan the SNB-2 digital rotational viscometer be equipped with a non-thermal printer?
A And this is what goes with this stylus serial printer.
QJINGTIAN This digital rotational viscometer can measure temperature, right?
A Hello, it's OK.
QHow to control the measurement accuracy of liquid viscosity?
A The model Viscometer can be measured, viscosity accuracy can refer to the specification parameters. When measuring, please measure at the same constant temperature, temperature has a great impact on viscosity, it is recommended to match Thermostat to ensure that the measured fluid temperature is constant, the measurement accuracy will be higher.
QWhat is the difference between the swirl/spin Viscometer SNB-1 and SNB-2?
A Hello, the range is different, the SNB-1 viscosity range is 20~ 600000mPa · s, and the SNB-2 viscosity range is 12~ 6000000mPa · s.
QCan this Shanghai JINGTIAN Viscometer correspond to GB/T22427.7?
A Yes, please refer to the NBchao standards page for specific standards.
QWhere is the temperature probe interface for the SNB-2 digital swirl/spin Viscometer?
A Hello, the temperature probe interface is behind the control panel and on the upper left. For details, please refer to the structure diagram of the operation manual.
QWhat viscosity unit does this Viscometer show?
A Hello, the display unit is mPa · s.
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
