Shanghai JINGTIAN SNB-3 Solder Paste Viscosity Tester, digital Rotational Viscometer 80 million cp

SE
Shanghai JINGTIAN SNB-3 digital display Rotational Viscometer Viscosity range is 160~80,000,000mPa·s, it is a liquid crystal digital Viscometer suitable for solder paste Viscosity test, SNB-3 digital display Rotational Viscometer measurement accuracy is ± 1% (FS) newtonian fluid.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JingTian SNB-3 Digital Rotational ViscometerSPEC

JingTian SNB-3 Digital Rotational ViscometerDetails

JingTian SNB-3 Digital Rotational ViscometerPacking list

SKU
NB020594
Display
digital display
Measuring range
160~80000000mPa·s
Rotor Specifications
L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~99.9rpm
Display information
Viscosity, rotational speed, percentile torque, rotor number and the maximum measurable Viscosity value of the selected rotor at the current rotational speed, etc
Speed control method
CVT
SNB-3
Digital Rotational Viscometer

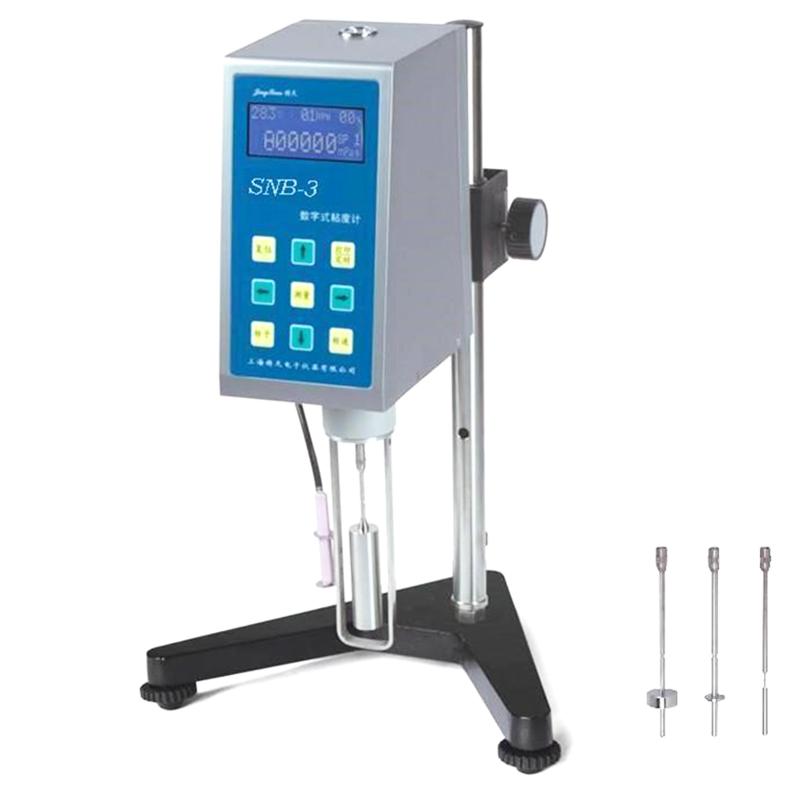

Shanghai JINGTIAN SNB-3 Solder Paste Viscosity Tester, digital Rotational Viscometer 80 million cp Picture

Introduction

The LCD of Shanghai JINGTIAN SNB-3 digital display rotary viscometer can display viscosity, speed, temperature, percentile torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor, etc. It is a digital display rotary viscometer with a measuring range of 160 to 80,000,000 mPa·s .



FAQ
Qviscosity Viscosity Pa. S 170 + 30 PaS Malcom PCU-205:10RPM 3Min, is there a replacement for this test?
A Use SNB-3, L4 to turn, 25RPM, timing measurement for 5-7 minutes, the measurement result can be almost measured
QSolder Paste Viscometer Simple viscosity test
A Recommended SNB-3 Solder Viscometer
QThe Viscometer of solder paste, pcu-205 is now in use. I don't know if your one can be replaced and if the principle is the same.
A Generally use SNB-3, L4 to turn, 25RPM, timing measurement for 5-7 minutes, the effect is similar to that of Ma Kang
QExcuse me, does this solder paste Viscometer need to be connected to a computer to print with this printer?
A Equipped with our printer, you can print directly on the Viscometer. If it is a third-party printer, it will be driven by a computer.
QSNB-1 My solder paste is 200,000 How much is the minimum?
A Solder paste is a non-newtonian fluid. SNB-1 belongs to a low viscosity Viscometer. It also uses L4 to rotate. At 25RPM, the maximum can only measure 24,000, so SNB-1 cannot be used.
QIs there a recommended Viscometer model for the solder paste viscosity test?
A This SNB-3 digital swirl/spin Viscometer has a viscosity range of 160 to 80,000,000mPa · s, suitable for solder paste viscosity testing
QCan this Viscometer be controlled by computer connection software?
A The software mainly receives and collects data, not controls the Viscometer.
QHow to control the measurement accuracy of liquid viscosity?
A The model Viscometer can be measured, viscosity accuracy can refer to the specification parameters. When measuring, please measure at the same constant temperature, temperature has a great impact on viscosity, it is recommended to match Thermostat to ensure that the measured fluid temperature is constant, the measurement accuracy will be higher.
QAsk for JJG1002 Viscometer
A SNB-3 Viscometer, please refer to it.
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
