JINGTIAN LVDV-1 digital display Rotational Viscometer 6 million mPa·s 99.9rpm

SE
JINGTIAN LVDV-1 digital display Rotational Viscometer adopts backlit LCD display, measurement Viscosity range 12~ 6000000mPa·s, LVDV-1 Rotational Viscometer standard L1, L2, L3, L4 rotor, accuracy of ± 1% FS.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian LVDV-1 Digital Rotational ViscometerSPEC

JingTian LVDV-1 Digital Rotational ViscometerDetails

JingTian LVDV-1 Digital Rotational ViscometerPacking list

SKU
NB020596
Display
digital display
Measuring range
12~6000000mPa·s
Rotor Specifications
L1#、L2#、L3#、L4#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~99.9rpm
Display information
Viscosity, rotational speed, temperature, percentile torque, rotor number and the maximum Viscosity value that can be measured at the current rotational speed of the selected rotor, etc
Speed control method
CVT
LVDV-1
Digital Rotational Viscometer

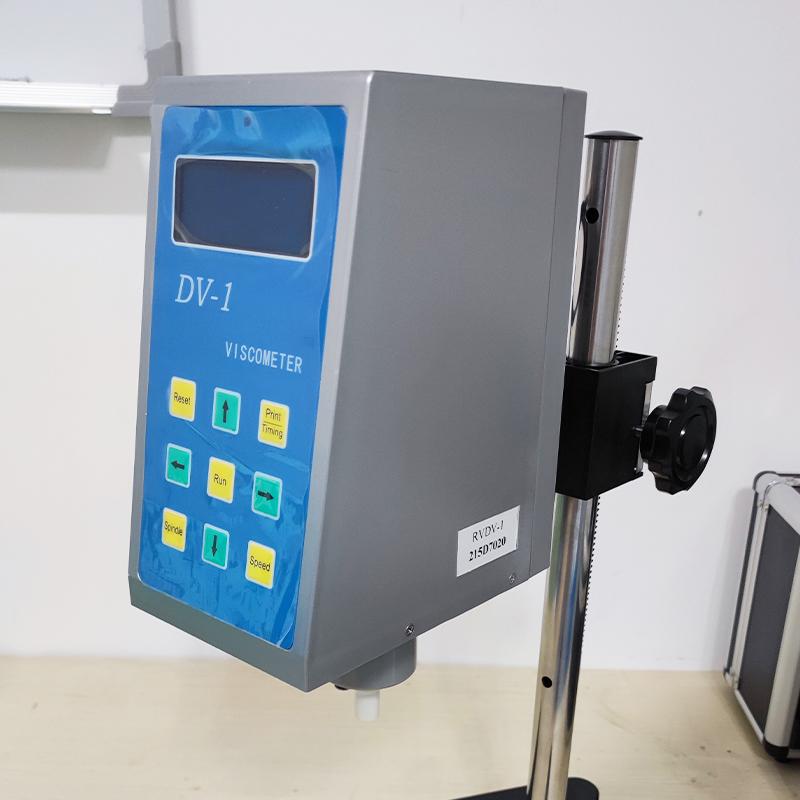

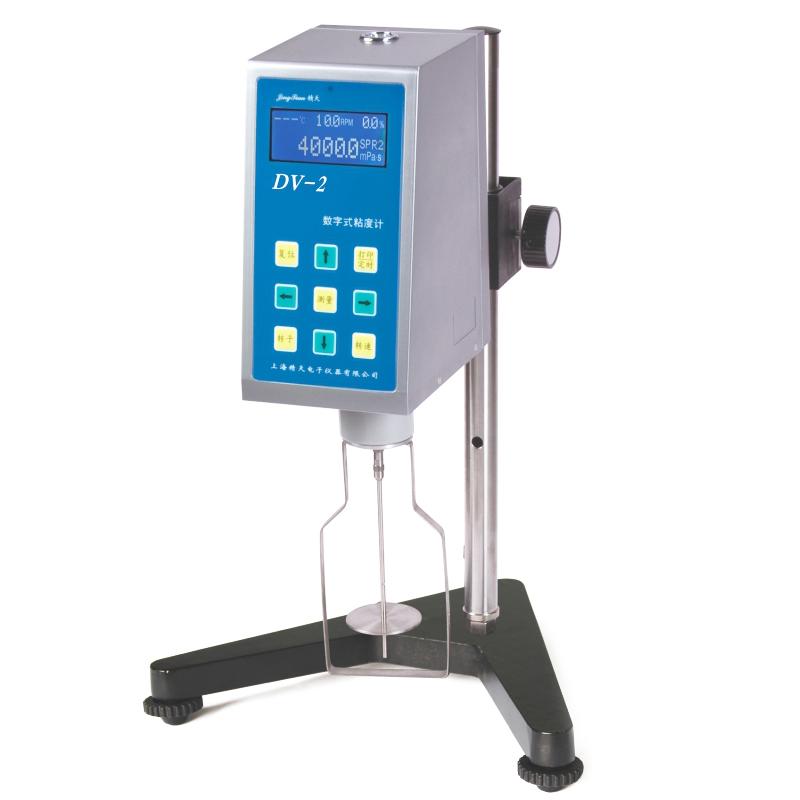

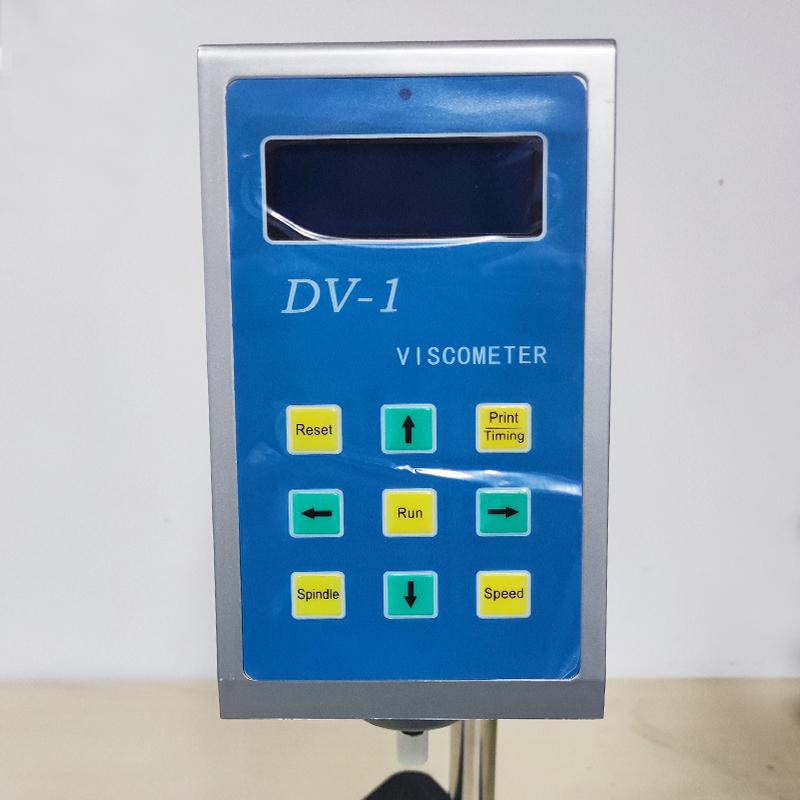

JINGTIAN LVDV-1 digital display Rotational Viscometer 6 million mPa·s 99.9rpm Picture

Introduction

The LCD of Shanghai JINGTIAN LVDV-1 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current rotational speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 12 to 6,000,000 mPa·s.

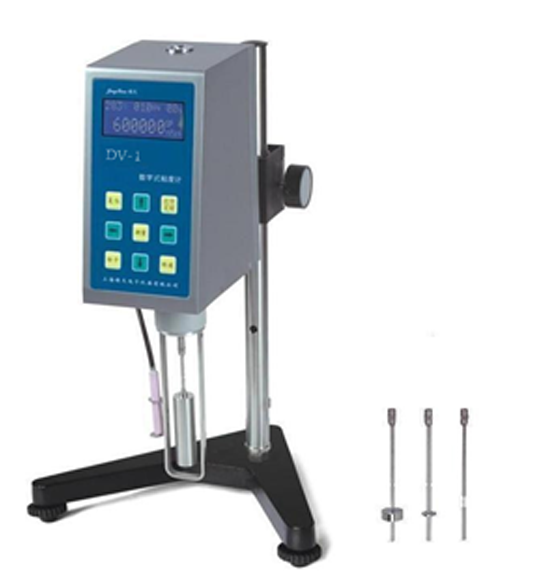

Shanghai JINGTIAN LVDV-1 Digital Display Rotary Viscometer

FAQ
QCan you see the viscosity change in real time during the measurement process?
A Yes. LVDV-1 can display viscosity, shear rate, shear stress, speed, temperature and other data in real time, helping you monitor the measurement process throughout.
QTaking PLC as an example, after the solution to be tested is in place, I want to realize automatic measurement and get (currently assumed) the viscosity value at 1/3/6/100/200/300/600 rpm, these data should be stored in a register, I can not His data can be read through the PLC. Requires a documentation for 232 debugging.
A DV series Viscometer can be equipped with "DV program control download software", the viscosity measurement process is written in advance, and then Viscometer executes according to this program, and can output through 232 Communication protocol
QOur samples have very high viscosity. Can this Viscometer measure high viscosity samples?
A Yes. The LVDV-1 digital swirl/spin Viscometer has a measurement range of 12 to 6 million mPa · s, making it easy to handle the measurement needs of high viscosity samples.
QIs there a glue consistency meter recommended?
A This one is ok.
QDo you recommend a glue consistency meter?
A Water-based oily is OK, RVDV-1 is recommended for silicone, high temperature Viscometer RVDV-1H or SNB-RH for hot-melt adhesive
QWhat is the accuracy of this digital swirl/spin Viscometer?
A Hello, the accuracy is ± 1% (FS).
QCan this Viscometer be applied to GB/T22427.7?
A OK
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
