JINGTIAN HBDV-1 digital display Rotational Viscometer 32 million mPa·s 99.9rpm

SE
The Viscosity range of the HBDV-1 digital display Rotational Viscometer is 640~320000000mPa·s, and the accuracy is ± 1% FS. The HBDV-1 Viscosity Tester is standard with R2, R3, R4, R5, R6, R7 six rotors. Can be applied to a variety of industrial Viscosity determination
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian HBDV-1 Digital Rotational ViscometerSPEC

JingTian HBDV-1 Digital Rotational ViscometerDetails

JingTian HBDV-1 Digital Rotational ViscometerPacking list

SKU
NB020598
Display
digital display
Measuring range
640~320000000mPa·s
Rotor Specifications
R2#、 R3#、R4#、R5#、R6#、R7#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~99.9rpm
Display information
Viscosity, rotational speed, temperature, percentile torque, rotor number and the maximum Viscosity value that can be measured at the current rotational speed of the selected rotor, etc
Speed control method
CVT
HBDV-1
Digital Rotational Viscometer

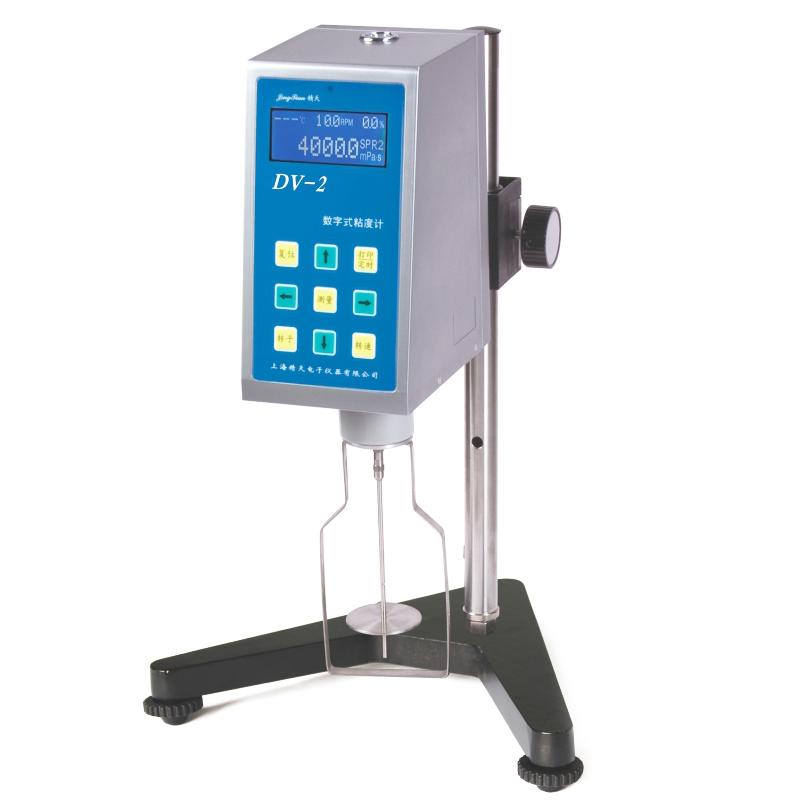

JINGTIAN HBDV-1 digital display Rotational Viscometer 32 million mPa·s 99.9rpm Picture

Introduction

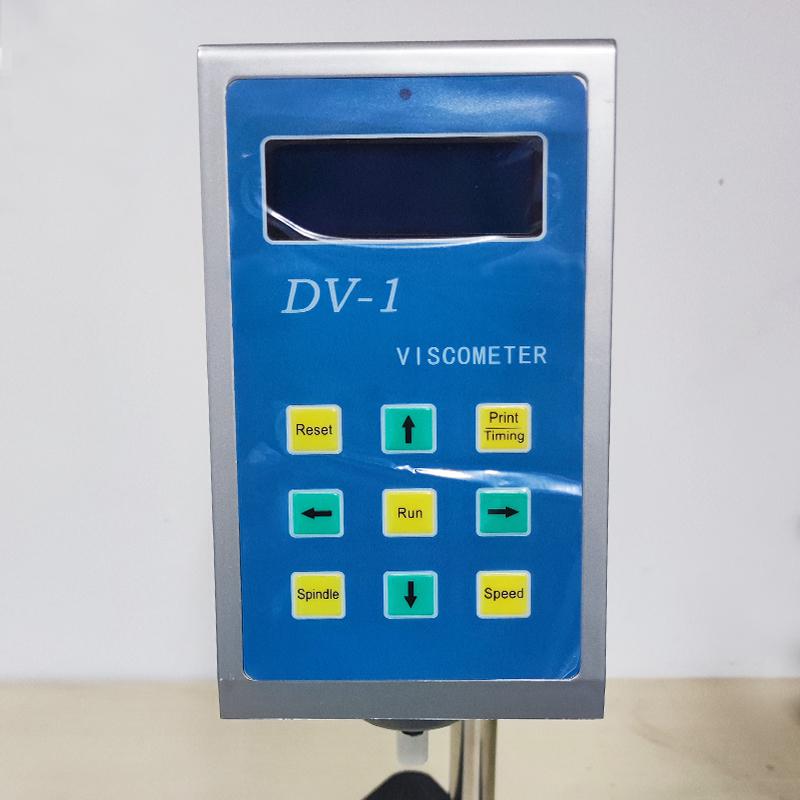

The LCD of Shanghai JINGTIAN HBDV-1 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current rotational speed. Viscosity value etc. It is a digital display Rotational Viscometer with a range of 640 to 320,000,000 mPa·s .

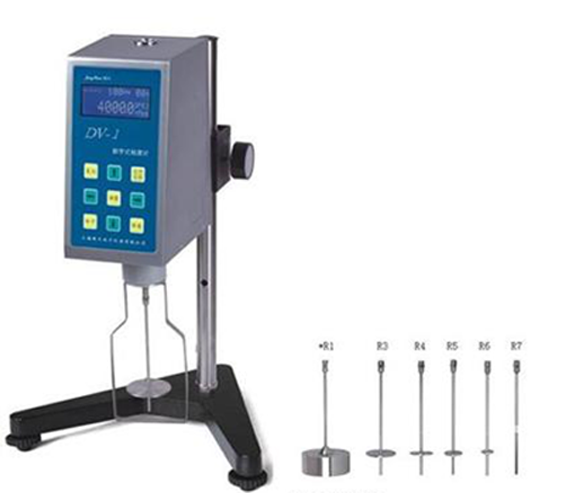

Shanghai JINGTIAN HBDV-1 Digital Display Rotary Viscometer

FAQ
QWhat information can be displayed on the LCD screen?
A The LCD screen can display information such as viscosity, shear rate, shear stress, speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current speed, which is convenient for users to monitor and record measurement data in real time.
QWhat industries is this Viscometer suitable for?
A HBDV-1 Viscometer is widely used in the Coatings, paints, Adhesives, Food, Pharmaceuticals, Cosmetics and Chemicals industries, especially for applications requiring accurate measurement of high viscosity samples.
QDoes it support English interface and system? Do you need to customize?
A We can send overseas versions, including English instructions, English materials and English buttons.
QWhich rotors are equipped with the HBDV-1 digital rotational viscometer?
A HBDV-1 digital rotational viscometer is equipped with R2 #, R3 #, R4 #, R5 #, R6 #, R7 #six rotors, suitable for different viscosity measurement range.
QWhat is the Viscometer for conductive silver paste?
A For silver paste, RVDV-1 or HBDV-1 is required.
QConductive paste, the temperature is about 20 degrees, recommend a wider range of Viscometer
A This is generally NDJ-5S\ 8S, and RVDV-1 or HBDV-1 is required for silver paste.
QEpoxy resin viscosity 25 degrees 6 rotor 20 Rotation speed viscosity in 100-300Pas, which one?
A This viscosity is very large, with HBDV-1 or HBDV-2, R6 rotor, the maximum range of 400Pa.s at 20RPM, meets this requirement
QCan I measure the viscosity of silicone rubber, Glass glue, etc.?
A This one is ok.
QIs there any application difference between RVDV and HBDV? It is used on colloids.
A RVDV can measure sealant, silicone, nail-free glue, etc., HBDV can measure silicone rubber, Glass glue and other more viscous
QThe horizontal bubble on the rotational viscometer of HBDV-1 digital display is not in the middle position, how to adjust it?
A Hello, you can adjust the horizontal adjustment bolts on the base. In order to prevent the base from sliding on the workbench, you can first pad high-density anti-skid pads under the three horizontal adjustment bolts.
