JINGTIAN HBDV-2 digital display Rotational Viscometer 32 million mPa·s 200rpm

SE
The HBDV-2 Digital Rotational Viscometer is used for Viscosity testing such as Adhesive, Coating, Paint, Printing ink, Chocolate, Ceramics pulp. The measuring range of the HBDV-2 Viscosity meter is 320~320000000mPa·s, and six rotors are standard.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian HBDV-2 Digital Rotational ViscometerSPEC

JingTian HBDV-2 Digital Rotational ViscometerDetails

JingTian HBDV-2 Digital Rotational ViscometerPacking list

SKU
NB020601
Display
digital display
Measuring range
320~320000000mPa·s
Rotor Specifications
R2#、 R3#、R4#、R5#、R6#、R7#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~200rpm
Display information
Viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum Viscosity value that can be measured at the current rotational speed of the selected rotor, etc
Speed control method
CVT
HBDV-2
Digital Rotational Viscometer

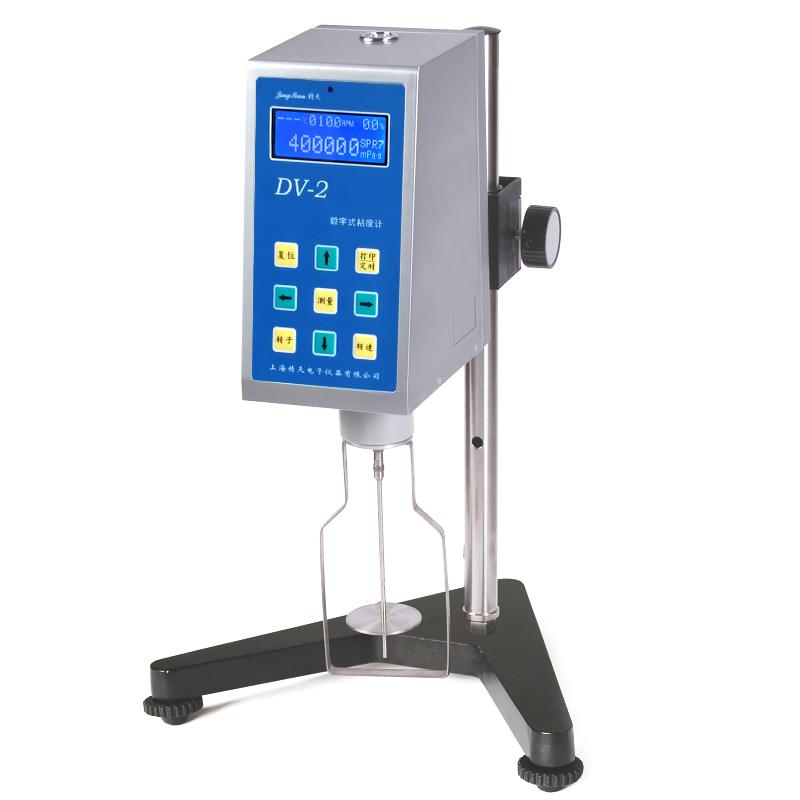

JINGTIAN HBDV-2 digital display Rotational Viscometer 32 million mPa·s 200rpm Picture

Introduction

The LCD of Shanghai JINGTIAN HBDV-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum measurable value of the selected rotor at the current rotational speed. Viscosity value etc. It is a digital display rotary viscometer with a measuring range of 320 to 320,000,000 mPa·s.



Shanghai JINGTIAN HBDV-2 Digital Display Rotary Viscometer

FAQ
QCan Viscometer measure corrosive acids and bases?
A If it is a general strong acid and alkali, a 316 stainless steel rotor can be used.
QEpoxy resin viscosity 25 degrees 6 rotor 20 Rotation speed viscosity in 100-300Pas, which one?
A This viscosity is very large, with HBDV-1 or HBDV-2, R6 rotor, the maximum range of 400Pa.s at 20RPM, meets this requirement
QIs there any application difference between RVDV and HBDV? It is used on colloids.
A RVDV can measure sealant, silicone, nail-free glue, etc., HBDV can measure silicone rubber, Glass glue and other more viscous
QWhich Viscometer displays shear rate and shear force?
A The DV-2 series has shear rate and shear force display. The DV programmable download software can program the shear rate change of the Viscometer in advance, and then collect and draw data through the data collection software
QThe laboratory tests the viscosity value of chocolate, can this digital swirl/spin Viscometer test the shear force?
A Hello, this HBDV-2 model is OK.
QIs this Viscometer compliant with ISO 12634?
A This Viscometer is suitable for ISO12634, please consult customer service for detailed application definition
QWhat are the two interfaces at the back and top of the HBDV-2 digital display swirl/spin Viscometer panel?
A Hello, the left is the temperature probe interface, and the right is the RS232 interface.
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
