JINGTIAN HBDV-2H digital display swirl/spin high temperature Viscometer 80 million mPa·s 250 ℃

SE
Measuring range 400~80000000mPa·s, temperature range RT + 10~250 ℃, high temperature furnace adopts embedded integral heating, uniform heating, small thermal inertia. The main measurement is solid at room temperature and liquid after high temperature heating, such as asphalt, hot melt adhesive, polyethylene wax, etc.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

JingTian HBDV-2H Digital Rotational ViscometerSPEC

JingTian HBDV-2H Digital Rotational ViscometerDetails

JingTian HBDV-2H Digital Rotational ViscometerPacking list

SKU
NB020617
Display
digital display
Measuring range
400~80000000mPa·s
Rotor Specifications
21#、 27#、28#、29#
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%
Power
220V 50Hz
Rotor speed
0.1~200rpm
Display information
Viscometer: Viscosity, shear rate, shear stress, rotational speed, temperature, percentile torque, rotor number and the maximum Viscosity value that can be measured at the current rotational speed of the selected rotor, etc. Temperature Controller: set temperature and actual measurement temperature display.
Capacity
10~20mL
Temperature range
RT+10~250°C
temperature Accuracy
±0.1℃
Speed control method
CVT
HBDV-2H
Digital Rotational Viscometer
Measuring range 400~80000000mPa·s, temperature range RT + 10~250 ℃, high temperature furnace adopts embedded integral heating, uniform heating, small thermal inertia. The main measurement is solid at room temperature and liquid after high temperature heating, such as asphalt, hot melt adhesive, polyethylene wax, etc.

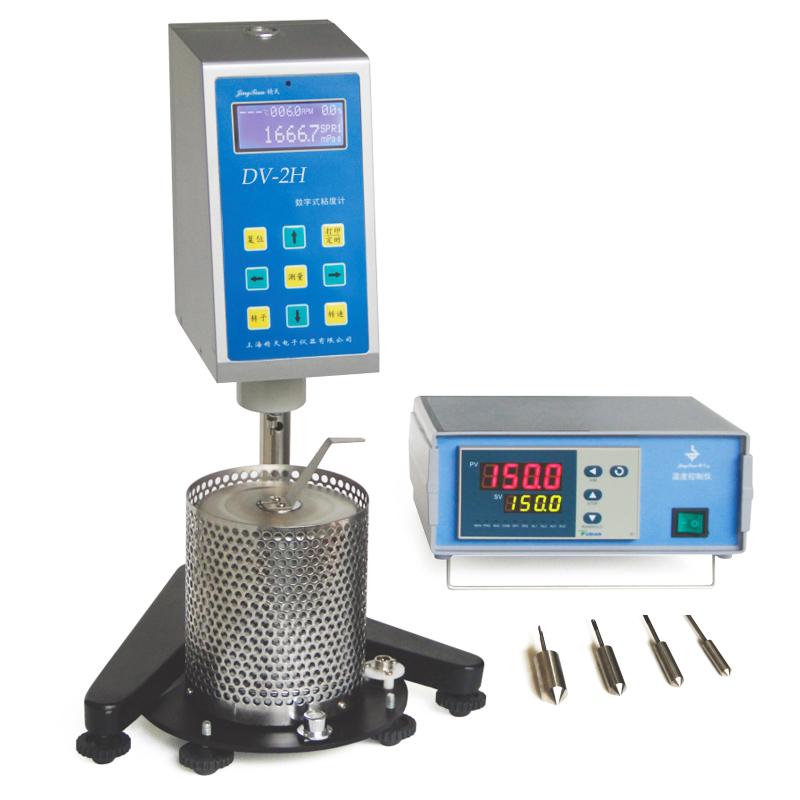

JINGTIAN HBDV-2H digital display swirl/spin high temperature Viscometer 80 million mPa·s 250 ℃ Picture

Introduction

It mainly measures substances that are solid at room temperature and become liquid after heating at high temperature, such as asphalt, hot melt adhesive, polyethylene wax, etc.

It can be used as a stand-alone machine, and the measurement data can be directly displayed on the LCD without secondary calculations; it can also be equipped with "data collection analysis and drawing software" to realize data collection and data analysis, and monitor the viscosity-temperature curve throughout the process.

Using high-resolution stepping motor, the speed is accurate and stable.

LCD liquid crystal with blue backlight function, directly display viscosity, speed, percent torque, rotor number, and the maximum viscosity value and temperature value that can be measured at the current speed of the selected rotor. DV-2 series can also display shear rate and shear stress. The viscosity value shows a continuous change, and there will be an alarm sound when it exceeds the measurement range.

The measurement performance of the instrument has reached the level of foreign products of the same type through computer correction.

The high-temperature furnace adopts built-in overall heating, which is evenly heated and has small thermal inertia.

Instrument structure

DVH high temperature viscometer structure diagram

DV-H series selection

modelLVDV-1HRVDV-1HHBDV-1HLVDV-2HRVDV-2HHBDV-2H
Measuring range10～1M100～10M800～80M5～1M50～10M400～80M
(mPa·s)
spinning speed0.1～99.9 stepless speed change0.1～200 stepless speed change
(rev/min)
Rotor configurationNo. 21, No. 27, No. 28, No. 29 rotors each 1 piece
measurement accuracy±1% (FS) Newtonian fluid
Reproducibility±0.5% (FS) Newtonian fluid
Sample volume (mL)10～20
Temperature control range (℃)Room temperature +10～250
Temperature control accuracy (℃)±0.1
power supply220V 50Hz


FAQ
QLaboratory measurement of organic matter, oil, everything, want a wider viscosity range, with heating function 300 degrees
A It still depends on the approximate range of viscosity, and the DV-H heating type can be considered.
QCan this measure the viscosity of the hot-melt adhesive?
A Yes, with heating.
QIs there any application difference between RVDV and HBDV? It is used on colloids.
A RVDV can measure sealant, silicone, nail-free glue, etc., HBDV can measure silicone rubber, Glass glue and other more viscous
QWhich Viscometer displays shear rate and shear force?
A The DV-2 series has shear rate and shear force display. The DV programmable download software can program the shear rate change of the Viscometer in advance, and then collect and draw data through the data collection software
QI want to do a test on the GB/T22427.7 standard. Is this digital swirl/spin high temperature Viscometer okay?
A Sure
QI haven't done any testing before, and I don't know how to do it. How to choose a Viscometer?
A It is easy to make the results of the viscosity test. After the measurement, he said that it is different from others, so it is wrangling. If the next home has viscosity requirements for his products, ask the next home for detection methods. If the purchase inspection, ask the previous home for Measurement conditions and methods. There are many viscosity measurement methods, and the measurement results cannot be converted.
