QILI MN268 three angle Glossmeter 20/60/85 ° three angle measurement Coating special

SE
Geometry 20 °/60 °/85 °, measurement range 0~1999GU (20 °); 0~999GU (60 °); 0~160GU (85 °), error of indication +/- 1.2GU, Graduation 0.1GU | 1GU
$661.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI
Similar products

QiLi MN268 GlossmeterSPEC

QiLi MN268 GlossmeterDetails

QiLi MN268 GlossmeterPacking list

SKU
NB002062
Measurement angle
20°/60°/85°
Measurement range
0~1999GU(20°)；0~999GU(60°)；0~160GU(85°)
Measuring Areas
10*10mm(20°)；10*20mm(60°)；8*30mm(85°)
Error of indication
±1.2GU
Graduation
0.1GU|1GU
Standards
ISO2813、ASTMD523、DIN67530、GB9754、GB7706
Operating language
Chinese
Dimensions
143*32*64mm
Weight
390g
Power
One AA dry battery
Stability
±0.4GU
Measurement port size
11*52mm
Application
Paints, Coatings, inks
MN268
Glossmeter
Geometry 20 °/60 °/85 °, measurement range 0~1999GU (20 °); 0~999GU (60 °); 0~160GU (85 °), error of indication +/- 1.2GU, Graduation 0.1GU | 1GU

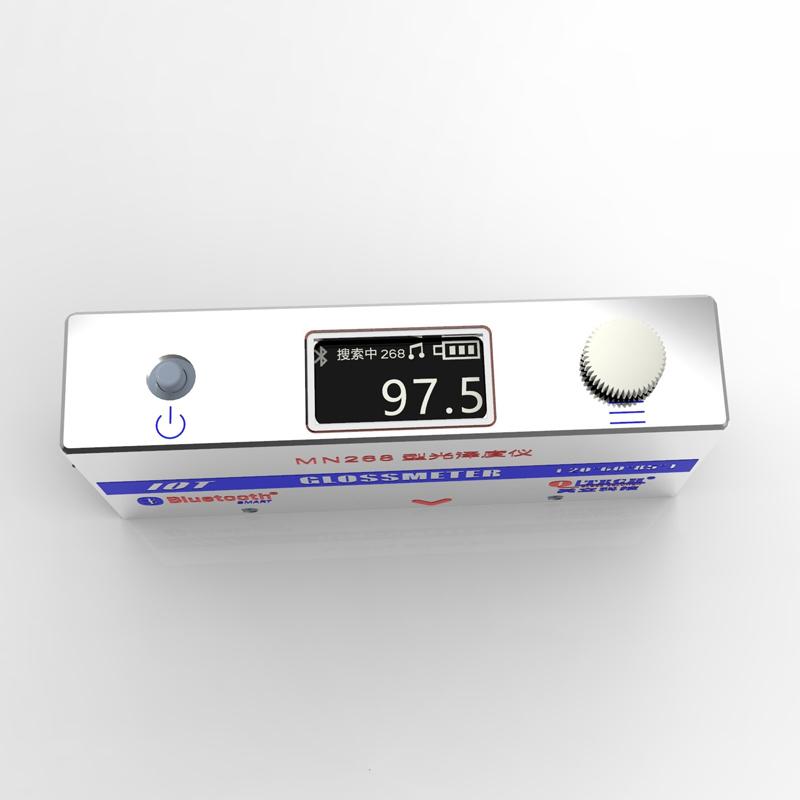

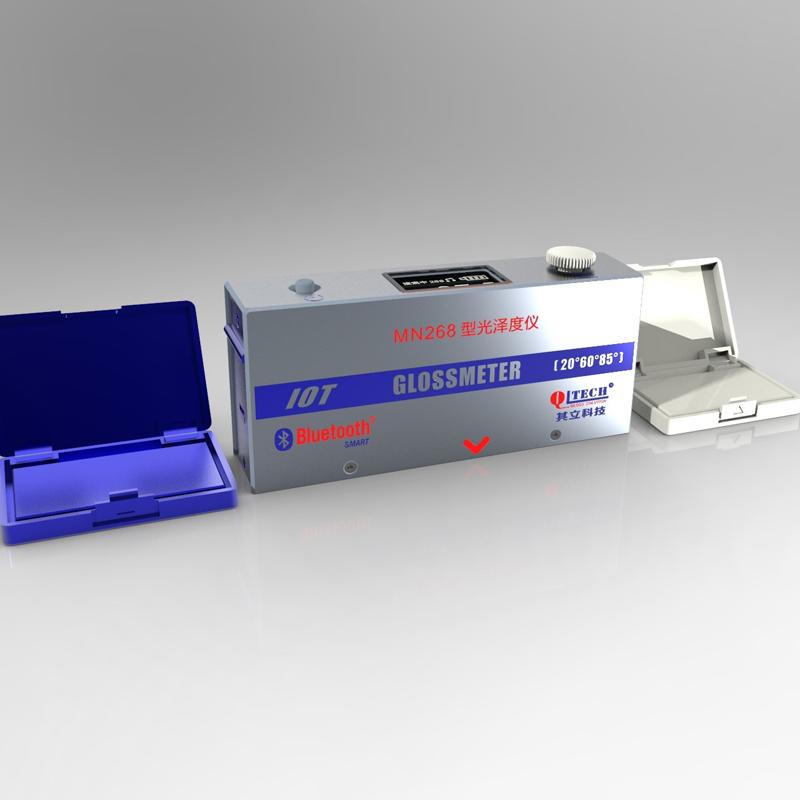

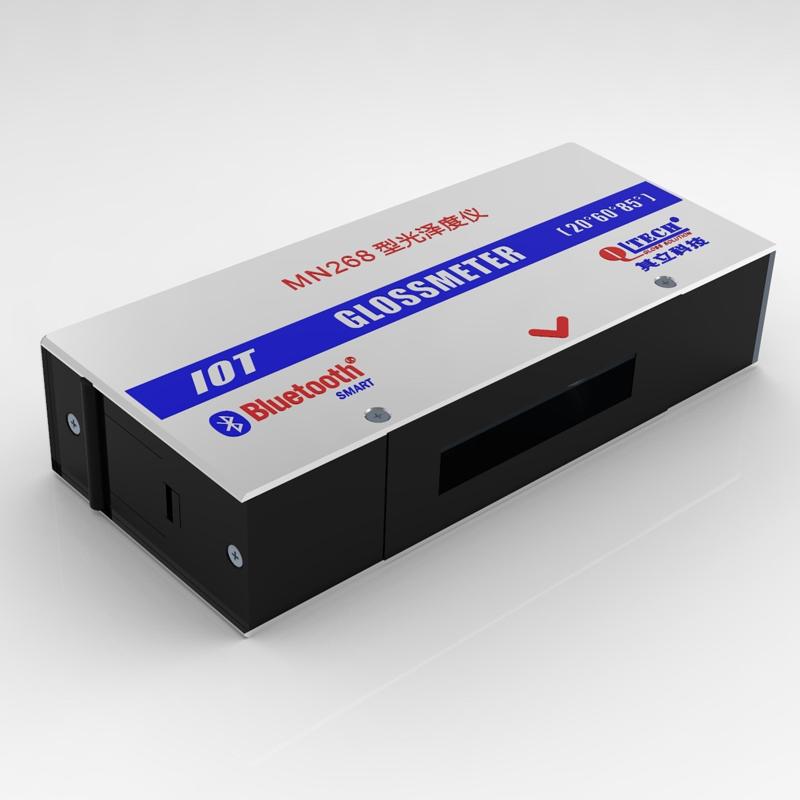

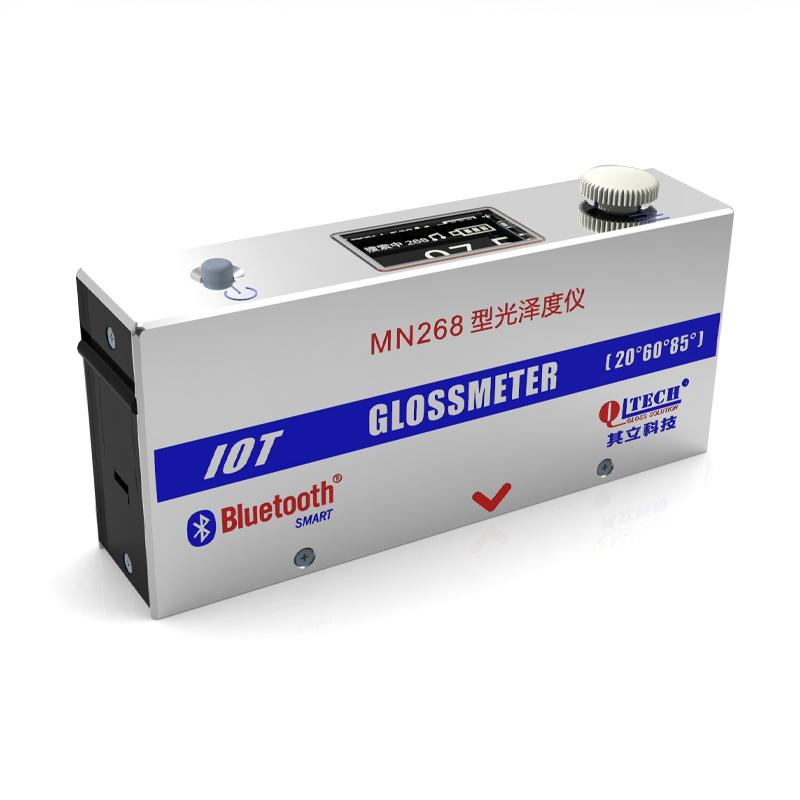

QILI MN268 three angle Glossmeter 20/60/85 ° three angle measurement Coating special Picture

Introduction to MN268 (for three-angle paint) gloss meter

MN268 three-angle gloss meter is designed and produced in accordance with international standards ISO2813, foreign standards ASTMD523, DIN67530 and national standards GB9754, GB9966, GB/T13891. All technologies have reached and are higher than JJG696-2002 "Mirror Glossiness" Taking into account the requirements of the first-level working machine in the "Glossy Plate" Appraisal Regulations.

Note: The shell color of different batches of its vertical gloss meter is different, so the shell color is randomly distributed.

Mainly used

1. Automobiles, home appliances, musical instruments, furniture and other industries: surface gloss measurement of paints and coatings.

2. Construction, decoration and other industries: surface gloss of floors, marble, granite and ceramic tiles

   Measurement.

3. Printing, packaging and other industries: surface gloss measurement of ink and paper.

4. Other industries require surface gloss measurement.

Features

1. The MN268 three-angle gloss meter can measure high-low gloss values ​​as well as ordinary gloss values .

2. Small size, light weight, truly portable.

3. Power-saving, worry-free and effective, one battery can last for nearly 60 hours to measure nearly 10,000 data.

4. High stability, ready to test.

5.LED long life light source.

6. Quartz crystal standard version with extremely low annual change rate.

7. Automatically shut down to save power and prevent battery leakage from causing failure.

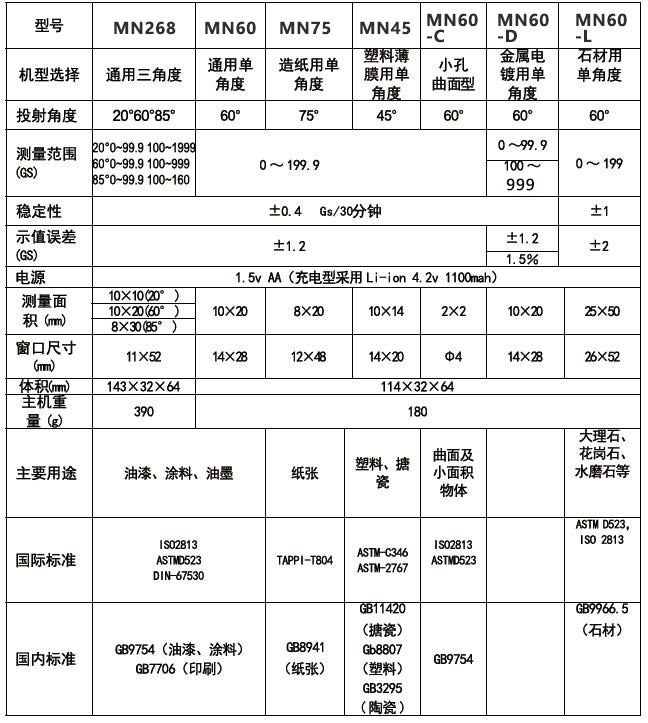

Comparison of parameters of its vertical Glossmeter

Comparison of parameters of its vertical Glossmeter

FAQ
QDoes the MN268 Gloss instrument have detailed operating instructions? I don't know how to adjust it in some places.
A Hello, you can go to the product page with detailed operating instructions on the right hand side to download or browse online, or you can directly consult our after-sales customer service, she will provide professional technical guidance.
QCan the QILI MN268 glossmeter meet the ASTMD3928 standard?
A Applicable, you can consult the customer service of the mall for details about the ASTMD3928 standard.
QThe measurement range is about 80GS at 60 angles. What angle is better to use to measure?
A Hello, according to what you said, it is recommended that you choose a 20-degree angle for measurement, which will be more accurate.
QResin film surface Gloss, is this Gloss meter suitable?
A Yes, this is a 3-angle gloss meter, which is suitable for medium and high Gloss.
