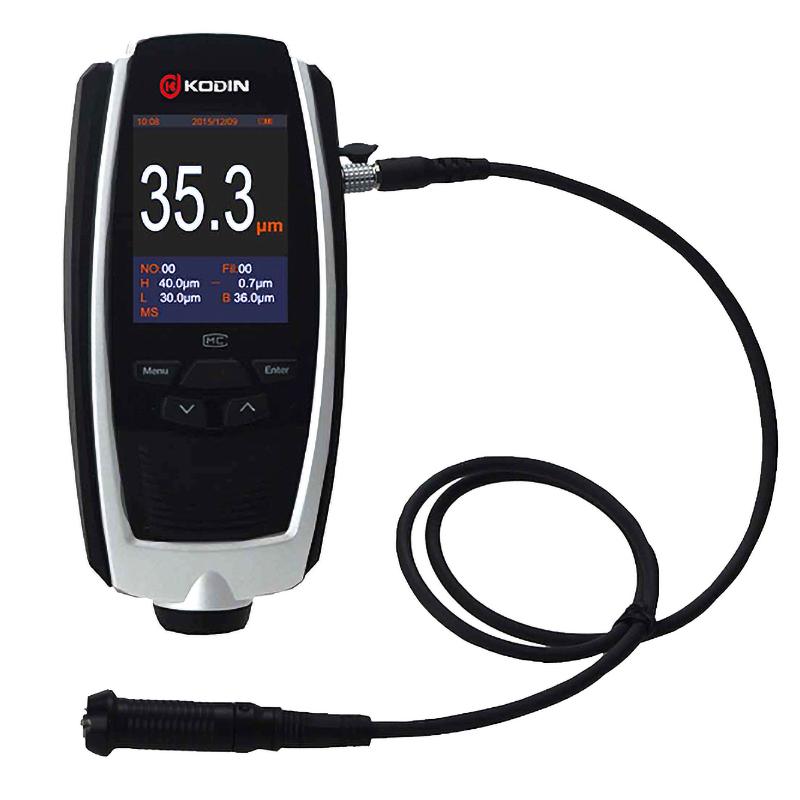

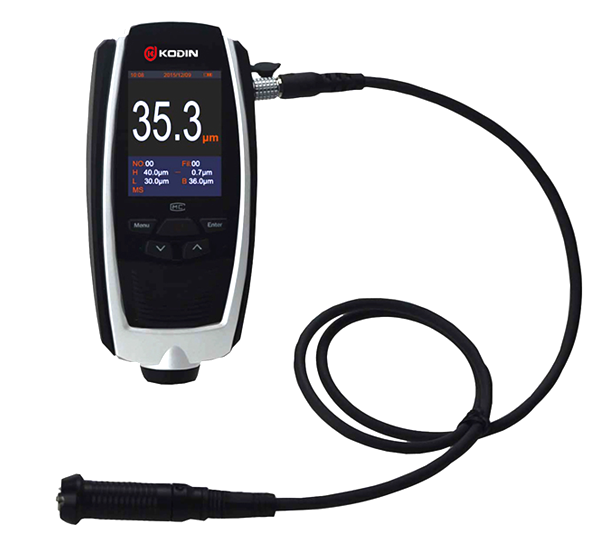

KODIN MC-3000S/N1.2 eddy current Coating Thickness Gauge

MC-3000S/N1.2

Coating Thickness Gauge

Overview

The MC-3000S coating Thickness Gauge can measure coating and coating thickness quickly, without damage, and accurately. It can be used both in the laboratory and in the engineering field. By using different probes, a wide range of measurement needs can also be met. This instrument can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is an instrument required for the material protection profession. This instrument complies with the following standards: GB/T 4956─1985 Measurement of the thickness of non-magnetic overlay on magnetic metal substrates Magnetic method GB/T 4957─1985 Measurement of thickness of non-conductive overlay on non-magnetic metal substrate Eddy current method JB/T 8393─1996 Magnetic and eddy current cladding Thickness Gauge JJG 889─95 "Magnetoresistive Thickness Gauge" JJG 818─93 "Eddy current Thickness Gauge".

Features

●Two thickness measurement methods, magnetic and eddy current, can non-destructively measure the thickness of the non-magnetic cladding on the magnetic metal matrix (such as steel, iron, alloy and hard magnetic steel, etc.) and the thickness of the non-conductive cladding on the non-magnetic metal matrix (such as copper, aluminum, zinc, tin, etc.) and the thickness of the non-conductive metal matrix (such as rubber, paint, plastic, anodized film, etc.) on the non-magnetic metal matrix (such as copper, aluminum, zinc, tin, etc.)；

●6 types of probes (F0.5, F1.2, F3, F5, F10, N1.2) can be used；

●With temperature compensation function: equipped with Kedian's new "phase-locked loop" technology；

●With screen flip function: you can manually choose to flip the display measurement data；

●Measurement speed: According to different applications, customers can choose two kinds of measurement speeds: single measurement and continuous measurement；

●The instrument can be calibrated in three ways, and the systematic error of the probe can be corrected by the basic calibration method；

●With storage function: more than 10,000 measurement points can be stored；

● With delete function: you can delete one suspicious data in the storage group, and you can also delete all the stored data so that new measurements can be made；

●Set the limit: the measured value outside the limit can be automatically alarmed;

● With printing function: it can be connected to a Bluetooth printer to print measurement data；

● With data connection function: Bluetooth 2.0, it can communicate wirelessly with computers and printers；

●It has the function of power supply under-Voltage indication；

●There is a beep prompt during operation；

●There are two shutdown modes: manual shutdown mode and automatic shutdown mode；

●V-groove: The humanized V-groove structure is convenient for measuring the coating on the outer surface of pipes of various sizes；

●Large flat bottom: The special large flat bottom probe structure makes the instrument measurement more stable and repeatable；

● Anti-slip mat: The professionally designed anti-slip mat with the anti-slip texture on the back of the chassis makes it easy for customers to get tired after long-term operation.

Packing list：whole machine X1, N1.2 probe X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
