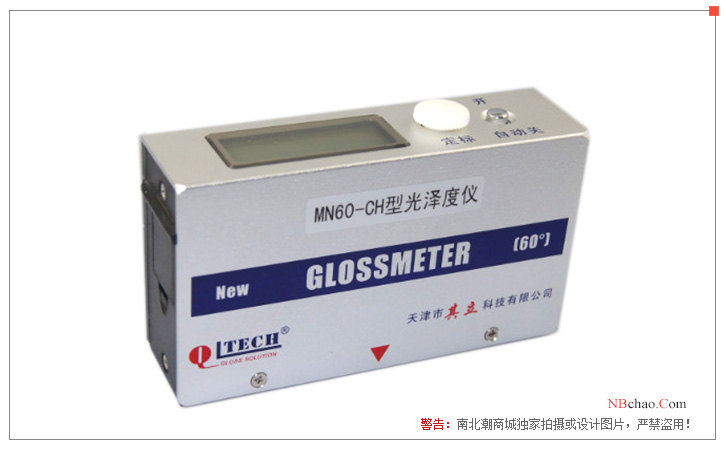

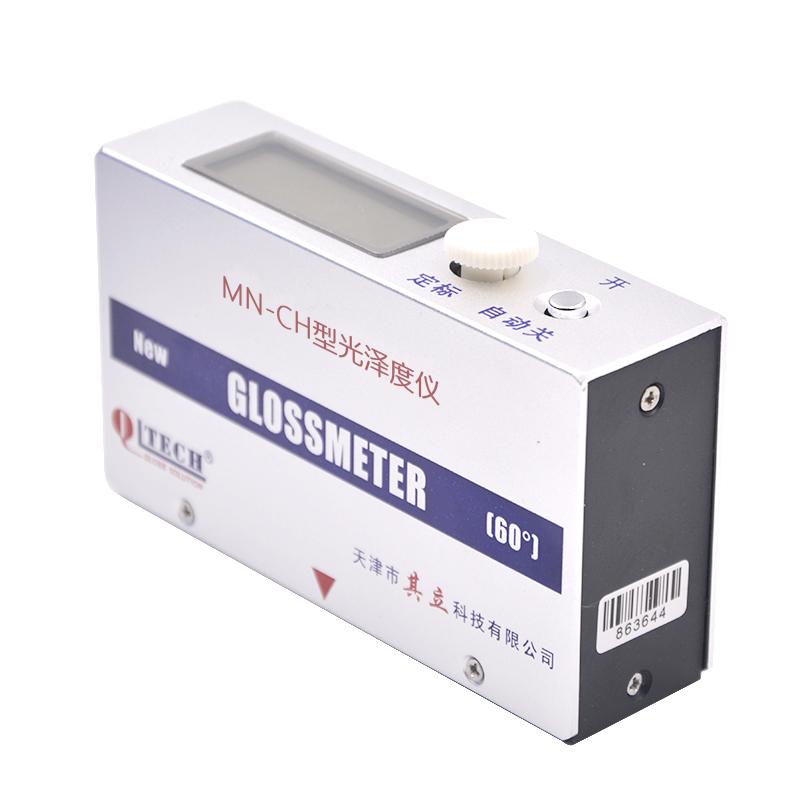

QILI MN60-CH Small hole curved Glossmeter

MN60-CH

Glossmeter

Measurement angle 60 °, Measurement range 0~1000GU, light spot 10 * 20mm, error of indication +/- 1.2GU, Graduation 0.1GU | 1GU, Stability +/- 0.4GU, measurement port size 14 * 28mm.

Introduction to MN60-CH (small hole, high gloss, curved surface type) gloss meter

 The MN60-CH curved surface gloss meter is designed and produced in accordance with the international standard ISO2813, foreign standards ASTMD523, DIN67530 and national standards GB9754, GB9966, GB/T13891. All technologies can be achieved, and is higher than JJG696-2002 "Mirror Direction" Requirements for first-level working machines in the appraisal procedures for gloss meters and gloss plates.

Note: The shell color of different batches of its vertical gloss meter is different, so the shell color is randomly distributed.

Mainly used

Painting: household products, toys, etc.

Wood: logs, glazed, thin boards, etc.

Auto parts: rims, dashboards, trim accessories, etc.

Plastics: modular products, frames, plastic jars, mobile phone cases, etc.

Daily necessities: wooden, plastic or metal products.

Ceramics: ceramic mugs, bathroom supplies, ceramic tiles, etc.

Pipes and cylinders: tubes, bottles, soft drink cans, etc.

Electroplated products: door handles, jewelry, various electroplated products, etc.

Military supplies: ultra-low gloss military supplies, etc.

Matte glass bottles: perfume, wine bottles, etc.

Features

1. Small size, light weight, truly portable.

2. Power-saving, worry-free and effective, one battery can last for nearly 60 hours to measure nearly 10,000 data.

3. High stability, ready to test.

4.LED long life light source.

5. Quartz crystal standard version with extremely low annual change rate.

6. Automatically shut down to save power and prevent battery leakage from causing failure.

plan

Packing list：Host x1, Standard board x2, Plastic Encasement box x1, Instruction manual x1, Certificate x1, Wiping mirror cloth x1, External Encasement carton x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
